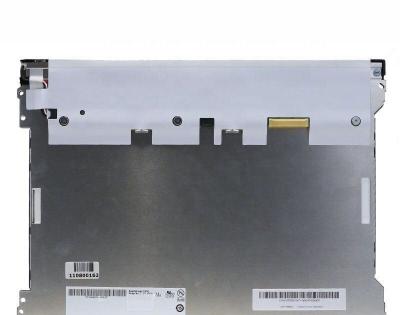

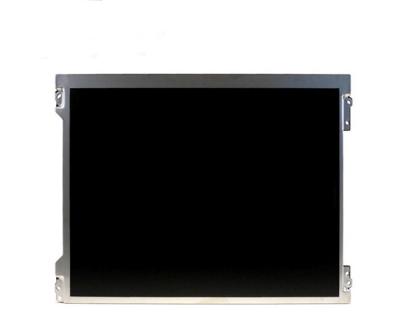

AUO G121XN01 V0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G121XN01 V0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 12.1inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Wide Temperature，Lamp Repaceable，WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F,180°Reverse，6/8 bit,Matte |
AUO G121XN01 V0 Optical Details
| Basic Information : | Luminance |
500 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 25/10 (Typ.)(Tr/Td) ms |
| Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6638K | White Variation | 1.33 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 74% coverage |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G121XN01 V0 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(2)*768(2), XGA | Arrangement | RGBW Rectangle |
| Dot Pitch(W×H) | 0.120*0.120 (H*V) | Pixel Pitch(W*H) | 0.240*;0.240 (H*V) [105PPI] |
| Physical Size : | Active Viewing(mm) | 245.76(H) *184.32(V) | Outline Dim.(mm) | 279(H) *209(V) |
| Bezel Area(mm) | 250.8(H) *189.4(V) | Depth(mm) | 6.0/9.0 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Face mounting holes (4-Φ3.4, 3-R1.7) on left and right bezel |
| Other Spec : | Weight |
495g (Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G121XN01 V0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Consumption : | 9.15W (Typ.) |
AUO G121XN01 V0 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 590/710mA (Typ./Max.) |
| Consumption | 1.95/2.34W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| STM | MSB240420E | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-080B |
AUO G121XN01 V0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 9S2P | Position | Edge light type (Top side) |
| Exchange | Replaceable | Lamp Shape | 2strings | Lamp Life | 50K(Min.) (Hours) |
| Lamp Electrical : | Voltage Input | 27.81/36V (Typ./Max.) | Current Input | 110mA (Typ.) |
| Consumption | 6.12/7.92W (Typ./Max.) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| E&T | 3808K-F05N-02R | 1.25 mm | 5pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Supply | 600mA (Typ.) |
| Consumption | 7.2/10.0W (Typ./Max.) |
AUO G121XN01 V0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 20 pcs / box | 14.8Kgs | 570*320*420mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G121XN01 V0. Please include your application and required quantity so we can confirm the applicable revision.
Request G121XN01 V0 Datasheet
