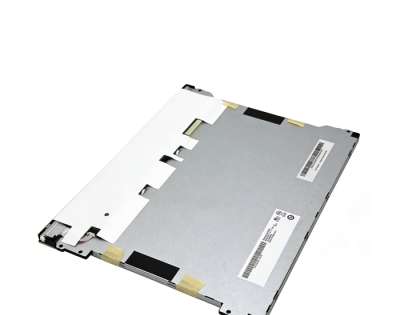

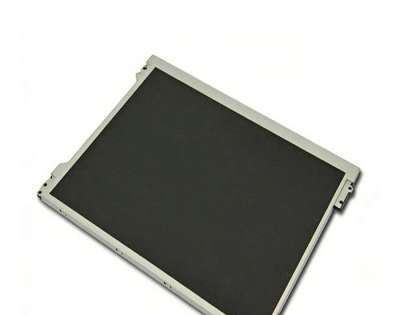

1.AUO G121XTN02.0 Application Features
Basic Detail : | Manufacturer | AUO | Model Name | G121XTN02.0 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 12.1inch | Designed For | Industrial,Outdoor High Brightness | |
Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
Vibration Level | 1.5G (14.7 m/s²) | RoHS | RoHS | |
Specific Features : | Wide Temperature,Ultra High Brightness,WLED Backlight,Life≥50K hours,With LED Driver,Upside I/F,180°Reverse,6/8bit,Matte | |||
2.AUO G121XTN02.0 Mechanical Features
Pixel Features : | Number of Pixel | 1024(2)×768(2), XGA | Arrangement | RGBW Rectangle | |
Dot Pitch(mm) | 0.120×0.120 (H×V) | Pixel Pitch (mm) | 0.240×0.240 (H×V) [105PPI] | ||
Physical Size : | Active Viewing (mm) | 245.76(H) × 184.32(V) | Bezel Area (mm) | 249.16(H) × 188.02(V) | |
Outline Dimension (mm) | 260.5(H) × 204(V) | Overall Depth(mm) | 8.34/9.0 (Typ./Max.) | ||
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type | |
Aspect Ratio | 4:3 (W : H) | Shape Style | - | ||
Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | ||||
Other Features : | Weight | 490g (Max.) | Surface | Antiglare, Hard coating (3H) | |
3.AUO G121XTN02.0 Optical Features
Basic Information : | Luminance | 1000cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
Good View at | - | Response Speed | 25/10 (Typ.)(Tr/Td) (ms) | |
Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
Color Performance : | White color Chromaticity | X:0.310; Y:0.330 | Color Amount | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6638K | White Variation | 1.33 (Max.)(5 points) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4.AUO G121XTN02.0 Electronics Features
Refresh Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
Power Consumption : | 10.3W (Typ.) |
5.AUO G121XTN02.0 Interface Features
Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
Signal Electrical : | Input Current | 320/360mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
Consumption | 1.056/1.296W (Typ./Max.) | |||||
Interface Features : | Type | Connector | Position | Upper right of panel | ||
Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
JAE | FI-SEB20P-HFE | 1.25mm | 20pins | 1pcs | LVDS-20P1C8B-160A | |
6.AUO G121XTN02.0 Backlight Features
Lamp Features: | Shape | 3strings | Lamp Type | WLED | Position | Edge light type (Top side) | |||||
Exchange | - | Amount | 6S3P | Life | 50K(Min.) (Hours) | ||||||
Lamp Electrical: | Voltage Input | 19.2/21.6V (Typ./Max.) | Current Input | 50mA (Typ.) | |||||||
Consumption | 2.88/3.24W (Typ./Max.) | ||||||||||
Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver | |||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||
ACES | 50214-01001-001 | 1.0mm | 10pins | 1pcs | |||||||
Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 0.8A (Typ.) | |||||||
Consumption | 9.23W (Typ.) | ||||||||||
7.AUO G121XTN02.0 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 20 | 1 | 570×320×420 | 12.80 | 0.0766 |
Contact us to request the current datasheet and mechanical drawing for G121XTN02.0. Please include your application and required quantity so we can confirm the applicable revision.
