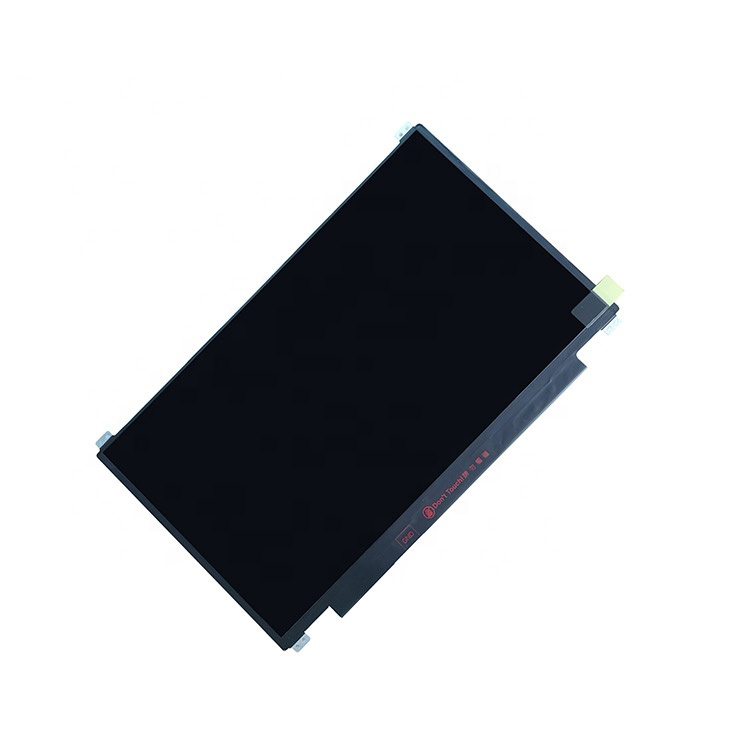

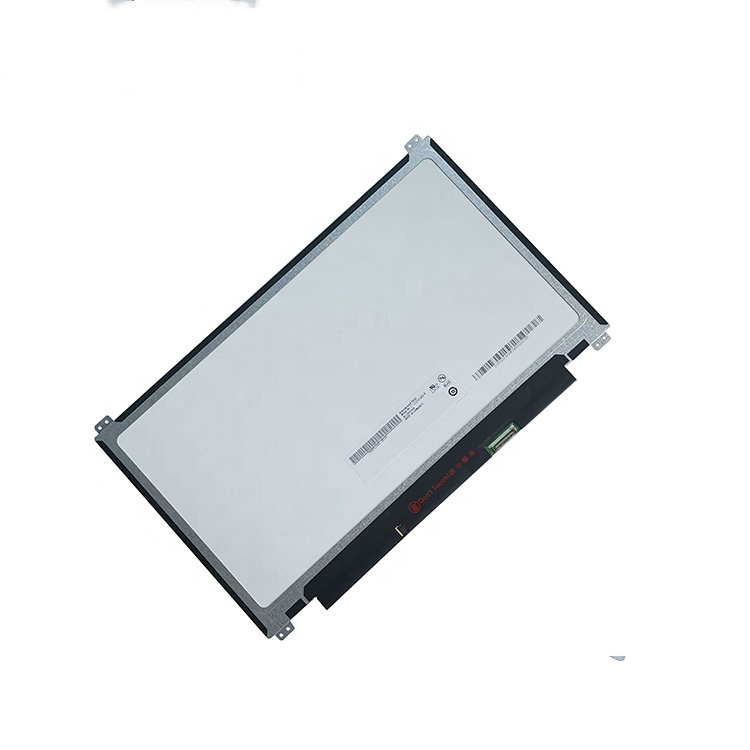

AUO G133HAN02.2 13.3-inch FHD eDP LCD | 500 cd/m²

  • AUO G133HAN02.2 13.3-inch FHD eDP LCD | 500 cd/m²
  • AUO G133HAN02.2 13.3-inch FHD eDP LCD | 500 cd/m²
  • Model:G133HAN02.2
  • Brand:AUO
  • Size:13.3inch
  • Resolution:1920 × 1080 (FHD)
  • Brightness:500 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:eDP
  • Operating Temp.:0 ~ 60 °C
  • Production State:In Production
  • Request a Quote
  • Technical Parameters
  • AUO G133HAN02.2 13.3-inch FHD eDP LCD Specifications

    AUO G133HAN02.2 is a 13.3-inch-class, normally-black TFT-LCD module for industrial display applications. It combines 1920 × 1080 FHD resolution, 16.2M colors and a 2-lane eDP 1.2 interface with a glare surface and 500 cd/m² typical center luminance. The module includes an LED backlight-driving circuit and uses separate LCD-logic and backlight supplies.

    Specification basis: AUO G133HAN02.2 Preliminary Specification, version 0.3. The revision history dates 0.3 to 13 June 2022; the cover approval/preparation date remains 30 September 2020. This supplied PDF has 32 pages. Page references below follow the supplied PDF page numbers, which agree with the printed page positions. This page covers only the complete G133HAN02.2 model; do not treat another suffix as the same specification.

    Display and mechanical specifications

    Model identity, size and construction
    ParameterSpecificationSource page
    Full model / manufacturerG133HAN02.2 / AU Optronics (AUO)1
    Display size / format13.3-inch class (13.26-inch designation); 336.71 mm diagonal; 1920 × 1080 FHD, 16:95
    Pixel arrangement / pitchRGB vertical stripe; 1920 × 3 (RGB) × 1080 subpixels; 0.1529 × 0.1529 mm pixel pitch5
    Active area293.472 × 165.078 mm5
    Display mode / color supportNormally black; 16.2M colors as specified5–6
    Signal interface2-lane eDP 1.25
    Surface treatmentGlare6
    Outline including brackets306.3 mm typical width (305.8–306.8); 195.3 mm typical height (194.8–195.8)5
    Maximum thickness3.0 mm at panel side; 3.2 mm at PCBA side5
    Weight280 g maximum5
    Backlight constructionLED backlight with driving circuit1, 5

    Dimensions and weight retain their typical/maximum labels. Verify the applicable mechanical drawing, brackets, mounting positions and cable orientation against the actual module before approving a mechanical replacement.

    Optical characteristics

    Detailed optical values are measured at stable 25 °C. L/R/U/D means left, right, up and down, and CR means contrast ratio.

    Luminance, viewing angles and optical performance
    ParameterSpecificationSource page
    Center white luminance400 cd/m² minimum; 500 cd/m² typical, detailed optical table: ILED = 16.1 mA, base panel only7
    Contrast ratio800:1 typical; no minimum contrast value is republished from the anomalous source entry7
    Viewing angle, L/R/U/D89°/89°/89°/89° typical; 80°/80°/80°/80° minimum, at CR = 107
    Response time, rising + falling27 ms typical; 35 ms maximum is stated in the general-specification summary5, 7
    Luminance uniformity1.25 maximum at 5 points; 1.6 maximum at 13 points; brightest-to-dimmest luminance ratios7
    NTSC color gamut45% typical7
    White chromaticity, CIE 1931x = 0.313, y = 0.329 typical7

    Measurement-current note: the general luminance summary uses ILED = 20 mA, while the detailed optical table identifies ILED = 16.1 mA for the base panel. These different labels are retained by section; do not assume either value is the external backlight-input current or a guarantee for a completed cover-glass assembly.

    Source clarification: the detailed optical table has an anomalous minimum-contrast entry. This page reproduces the supported 800:1 typical value without inventing a corrected minimum. Obtain manufacturer clarification before specifying a guaranteed minimum contrast.

    LCD logic and integrated backlight driver

    The logic-power table is measured at 25 °C and 60 Hz. The LED-characteristic table also uses Ta = 25 °C; observe the stated test patterns, connector reference points and calculation notes.

    Operating supplies, power and LED lifetime
    ParameterSpecificationSource page
    LCD logic supply, VDD3.0 V minimum; 3.3 V typical; 3.6 V maximum14
    Logic power, PDD0.7 W typical; 0.8 W maximum; maximum-measurement condition: white pattern, VDD = 3.3 V14
    Logic current, IDD212 mA typical; 242 mA maximum14
    Logic inrush current / ripple1500 mA maximum inrush; 100 mV peak-to-peak maximum VDD ripple14
    LED driver input, VLED10.0 V minimum; 12.0 V typical; 13.2 V maximum at the connector17
    Backlight power, PLED2.57 W maximum; calculated reference at VLED = 12 V and Ta = 25 °C5, 17
    LED lifetime50,000 hours in the minimum column; estimated time to 50% of initial luminous output, at Ta = 25 °C17

    Use operating-voltage ranges for design. The separate 4 V absolute-maximum VDD rating is a stress limit, not a normal operating supply. The LED-life figure is an estimate with a defined half-light endpoint, not an unconditional service-life promise.

    PWM dimming and backlight enable
    ParameterSpecificationSource page
    Backlight enable / PWM high level2.2–5.5 V17
    Backlight enable / PWM low level0.6 V maximum17
    PWM frequency200 Hz minimum; 1 kHz typical; 20 kHz maximum17
    PWM duty1% to 100%; special low-duty limitation applies17–18
    Low-duty conditionAt 1%–5% duty, set PWM frequency below 1 kHz; brightness versus duty may not remain linear18

    Temperature and environmental statements

    Operating, storage and humidity references
    ParameterSpecificationSource page
    Operating-temperature statementThe general specification lists 0 to +60 °C as panel-surface temperature, while the environmental-rating table still lists 0 to +50 °C without defining that entry as ambient or surface temperature. Obtain manufacturer clarification for the actual equipment. Do not assume +60 °C is an established ambient operating limit.6, 12
    Storage temperature−20 to +60 °C, non-operating6, 12
    Humidity / wet-bulb reference5%–95% RH ratings; follow the source humidity/temperature chart, which marks Twb = 39 °C12–13

    The general specification lists 0 to +60 °C as panel-surface temperature, while the environmental-rating table still lists 0 to +50 °C without defining that entry as ambient or surface temperature. Obtain manufacturer clarification for the actual equipment. Do not assume +60 °C is an established ambient operating limit.

    eDP connector and pin assignment

    Connector and signal reference
    ParameterSpecificationSource page
    Signal / power connector30-pin I-PEX 20765-030E-11A, 0.5 mm pitch; both eDP signals and designated power/control pins share this connector20
    Data connectionTwo main-link lanes plus AUX channel and HPD. This is not a direct LVDS, parallel RGB or HDMI input20
    Power separationVDD powers LCD logic; VLED powers the backlight-driving circuit on different connector pins. Match the full pin assignment20
    Grouped 30-pin assignment, source page 20
    Pin(s)Signal / function
    1, 14, 24, 25, 30NC / supplier-reserved; pin 14 has an optional panel-self-test note
    2, 5, 8, 11, 15, 16GND: high-speed / LCD logic and driver ground
    3Lane1_N
    4Lane1_P
    6Lane0_N
    7Lane0_P
    9AUX_CH_P
    10AUX_CH_N
    12, 13VDD, LCD logic power
    17HPD
    18–21BL_GND, backlight ground
    22VLED_EN, backlight enable
    23VLED_PWM, system dimming input
    26–29VLED, LED backlight power

    Retain all ground connections and reserved-pin definitions. Pin 14 is marked NC with an optional panel-self-test note in the source; do not treat optional or reserved pins as interchangeable power inputs. Confirm the complete interface and power-on/off sequence for the actual module revision.

    G133HAN02.2 FAQ

    What is G133HAN02.2?

    G133HAN02.2 is a 13.3-inch-class AUO TFT-LCD module with 1920 × 1080 FHD resolution, 16.2M colors and a 2-lane eDP 1.2 interface. Its specified surface is glare and center luminance is 500 cd/m² typical.

    What brightness and LED-current conditions are specified?

    The detailed optical table lists 400 cd/m² minimum and 500 cd/m² typical, at stable 25 °C and ILED = 16.1 mA, base panel only. The general-summary luminance row instead labels ILED = 20 mA. Refer to the conditions of the relevant table when evaluating luminance.

    What surface finish does this model have?

    The supplied G133HAN02.2 specification states glare. Confirm the finish on the offered module and assess reflections in the intended lighting. Surface treatment is one reason to preserve the complete model suffix.

    What controller and connector does it require?

    Use a controller compatible with 2-lane eDP 1.2 and the module’s FHD timing, AUX/HPD behavior and power sequence. The 30-pin I-PEX 20765-030E-11A connector has a specified signal/power assignment; pin count alone does not prove compatibility with another 30-pin cable.

    Is the LED driver included, and what supplies are needed?

    The supplied specification describes an LED backlight with driving circuit. LCD logic VDD is 3.3 V typical (3.0–3.6 V), while the backlight input VLED is 12 V typical (10.0–13.2 V). They are distinct supplies on designated connector pins, not interchangeable power inputs.

    What does the backlight-life figure mean?

    The LED table places 50,000 hours in the minimum column, at Ta = 25 °C, and defines it as an estimated time until initial luminous output degrades to 50%. It is not a fixed number of years, a whole-equipment warranty or a guarantee for every temperature and drive condition.

    What are the viewing angles and response time?

    The detailed optical table specifies 89° in each of the left, right, up and down directions as typical, with 80° minimum at CR = 10. Rising-plus-falling response time is 27 ms typical; the general summary also states a 35 ms maximum.

    What operating temperature should a design use?

    The general specification lists 0 to +60 °C as panel-surface temperature, while the environmental-rating table still lists 0 to +50 °C without defining that entry as ambient or surface temperature. Obtain manufacturer clarification for the actual equipment. Do not assume +60 °C is an established ambient operating limit.

    Can the backlight be dimmed down to 1% duty?

    The source lists a 1%–100% PWM duty range, but adds that operation at 1%–5% duty requires PWM below 1 kHz and may not keep a linear brightness/duty relationship. Review the electrical conditions and measured dimming behavior for the equipment.

    Can G133HAN02.2 directly replace G133HAN02.0?

    Do not approve a replacement from the shared family name, size or connector count alone. G133HAN02.2 and G133HAN02.0 have separate specifications. Compare surface finish, luminance, LED power and life, temperature statements, cable assignment, timing and mechanical drawings for the exact revisions before substitution.
