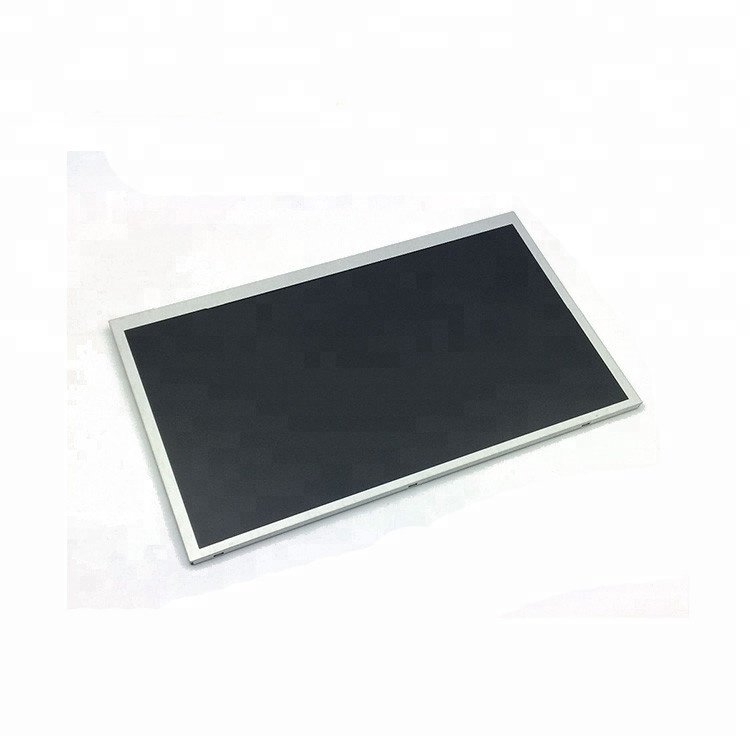

Industrial AUO 13.3 inch IPS TFT LCD Display G133ZAN01.1 with 3840x2160 UHD

  • Industrial AUO 13.3 inch IPS TFT LCD Display G133ZAN01.1 with 3840x2160 UHD
  • Industrial AUO 13.3 inch IPS TFT LCD Display G133ZAN01.1 with 3840x2160 UHD
  • Model:G133ZAN01.1
  • Brand:AUO
  • Size:13.3inch
  • Resolution:3840×2160
  • Brightness:450 cd/m² (Typ.)
  • Perspective:85/85/85/85 (Typ.)
  • Interface:eDP
  • Operating Temp.:0 ~ 50 °C
  • Production State:Discontinued
  • Request a Quote
  • Technical Parameters
  • AUO G133ZAN01.1 Application Details

    Basic Info :Panel BrandAUOPanel ModelG133ZAN01.1
    Diagonal Size13.3 inchApplicationIndustrial
    Panel TypeLTPS TFT-LCD ,LCM
    Reliability :

    Operating Temp.0 ~ 50 °CStorage Temp.-20 ~ 60 °C
    RoHS StateRoHSVibration Rating1.5G (14.7 m/s²)
    Specific Features :Srgb, WLED Backlight,Life>=50K hours,With LED Driver,Reverse I/F,10 bit,Glossy


    AUO G133ZAN01.1 Mechanical Details

    Pixel Features :Pixel Format3840(RGB)*2160 [UHD]Dot Pitch0.0255*0.0765 mm (H*V)
    ConfigurationRGB Vertical StripePixel Pitch0.0765*0.0765 mm (H*V)  [332PPI]
    Mechanical Size :

    Display Area293.76*165.24 mm (H*V)Outline Dim (mm).-
    Outline Dim.298.96*186.42 mm (H*V)Outline Depth (mm)2.0/2.2 (Max.) mm
    Outline Features :

    Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio16:9 (H:V)Shape Style
    Holes & Brackets :Without
    Other Features :Weight190g (Max.)SurfaceGlare (Haze 0%), Hard coating (1H), Reflection 5.0% (Typ.)


    AUO G133ZAN01.1 Optical Details

    BrightnessBrightness450 cd/m² (Typ.)Contrast Ratio1200:1 (Typ.) (Transmissive)
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)Optical ModeAHVA, Normally Black, Transmissive
    Viewing DirectionSymmetryResponse Time30 (Typ.)(Tr+Td) (ms)
    Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers

    1.07B (8-bit + Hi-FRC)
    Color Temperature

    6485KUniformity1.25/1.60 (Max.)(5/13 point
    1931 Color Gamut :NTSC Ratio71%sRGB100% coverage
    Adobe RGB74% coverageDCI-P374% coverage
    Rec.202053% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    AUO G133ZAN01.1 Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :No
    Power Consumption :5.39W


    AUO G133ZAN01.1 Backlight Details

    Back-light Features :Lamp TypeWLEDAmount-Life Time30K(Min.) (Hours)
    Replacement-Lamp Shape-PositionEdge light type
    Interface Features :TypeIncluded in signal interfacePosition-Lamp DriverWith LED Driver
    Driver Electrical :Voltage Input5.0/12.0/21.0V (Min./Typ./Max.)Current Input-
    Consumption3.95W (Max.)


    AUO G133ZAN01.1 Interface Details

    Signal Systerm :eDP (4 Lanes), eDP1.4a Logic Voltage-
    Signal Electrical :Voltage Input3.3V (Typ.) Current Input800mA (Max.)
    Consumption1.44/2.4W (Typ./Max.)
    Interface Features :TypeConnectorPositionRight of Board
    Connector Detail :BrandModelPin PitchPinsAmountConfiguration
    I-PEX20765-040E-11A0.5mm40 pins1 pcs



Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for G133ZAN01.1. Please include your application and required quantity so we can confirm the applicable revision.

Request G133ZAN01.1 Datasheet

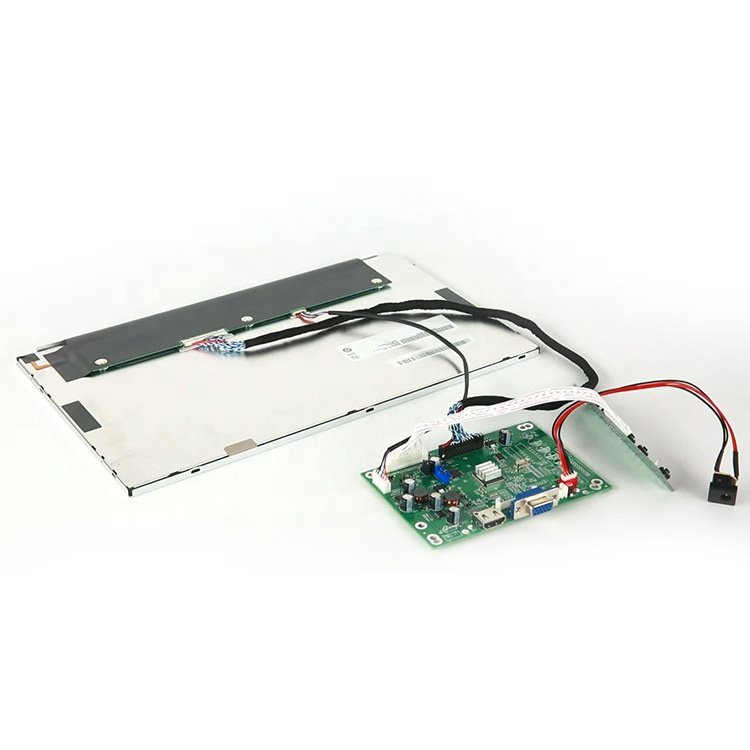

Complete your display assembly

Build a display assembly around your selected LCD panel. Explore touch panels, LCD controller boards and signal or backlight cables.

Touch panels and bonding

Review touch dimensions, host connection, cover glass and bonding requirements.

LCD controller boards

Match the host video output to the panel interface, timing and power requirements.

Signal and backlight cables

Confirm both connector ends, pin mapping, cable length and backlight connections.

We will review the selected panel, controller firmware, cable pinout, power and touch configuration before confirming the proposed assembly. Send your quantity, application, delivery country and required date.
