AUO G156HAN02.302 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | G156HAN02.302 |
| Diagonal Size | 15.6 inch | Application | Industrial，Medical Imaging |
| Panel Type | a-Si TFT-LCD , LCM | | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -20 ~ 70 °C |
| RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) |
| Specific Features : | Srgb, WLED Backlight，Life>=50K hours,With LED Driver，Reverse I/F,Matte |
AUO G156HAN02.302 Mechanical Details
| Pixel Features : | Pixel Format | 1920(RGB)*1080, FHD | Dot Pitch | 0.05975*0.17925 (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.17925*0.17925 (H*V) [141PPI] |
| Mechanical Size : | Display Area (mm) | 344.16(H) *193.59(V) | Outline Dim (mm). | 363.8(W)*215.9(H) mm |
| Outline Dim. (mm) | 347.06(W)*196.49(H) mm | Outline Depth (mm) | 4.1/6.5 (Typ./Max.) |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 600/660g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
AUO G156HAN02.302 Optical Details
| Brightness | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 25(Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 99% coverage |
Adobe RGB | 76%
coverage | DCI-P3 | 77% coverage |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G156HAN02.302 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 12.5W (Typ.) |
AUO G156HAN02.302 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) (Hours) |
| Replacement | - | Lamp Shape | - | Position | Edge light type |
| Interface Features : | Type | Connector | Position | Down right corner | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| E&T | 3808K-F05N-02R | 1.25 mm | 5 pins | 1 pcs | |
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | - |
| Consumption | 8.3/10.4W (Typ./Max.) |
AUO G156HAN02.302 Interface Details

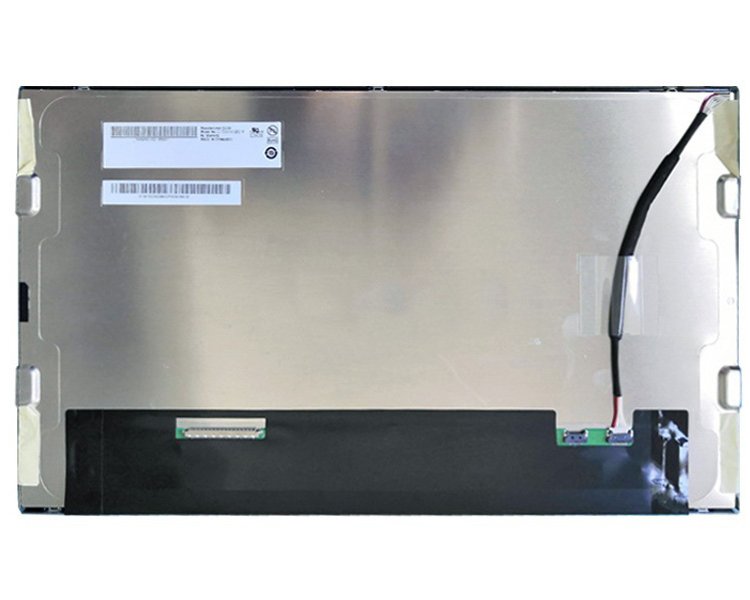

| Signal Systerm : | LVDS (2 ch, 8-bit) | | Logic Voltage | - | |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | | Current Input | 0.53/0.64A (Typ./Max.) |
| Consumption | 1.75/2.11W (Typ./Max.) |
| Interface Features : | Type | Connector | Position | Down left of panel |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| P-TWO | 187034-30091 | 1.0mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A |
AUO G156HAN02.302 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 16 pcs / box |
13.2 Kgs
| 450*375*319mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G156HAN02.302. Please include your application and required quantity so we can confirm the applicable revision.
