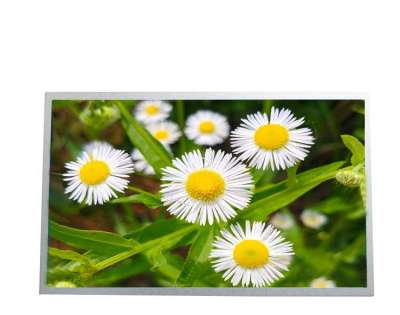

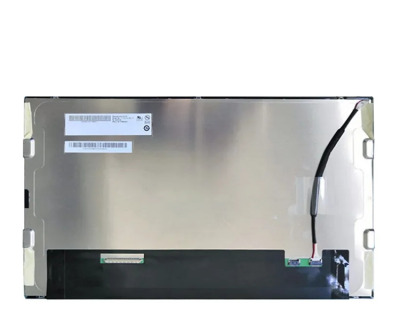

1. AUO G156HAN02.303 Application Details
Basic Information : | Brand | AUO | Model | G156HAN02.303 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial,Healthcare | |
Screen Size | 15.6" | |||
Environment : | Storage Temp. | -20 ~ 70 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) | |
Typical Features : | Srgb,WLED Backlight,Life≥50K hours,With LED Driver,Reverse I/F,Matte | |||
2. AUO G156HAN02.303 Mechanical Details
Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.05975×0.17925 (H×V) | |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.17925×0.17925 (H×V) [141PPI] | ||
Mechanical Size : | Active Area(mm) | 344.16(H) × 193.59(V) | Bezel Area(mm) | 347.06(H) × 196.49(V) | |
Outline Dim.(mm) | 363.8(H) × 215.9(V) | Depth(mm) | 8.8±0.5 | ||
Outline Features : | Form Style | Flat Rectangle | Shape Style | - | |
Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | ||
Mounting : | Side mounting holes (4-M3) on left, right bezel | ||||
Other Spec : | Weight | 660g (Max.) | Treatment | Antiglare, Hard coating (3H) | |
3. AUO G156HAN02.303 Optical Details
Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 75% | sRGB | 100% |
Adobe RGB | 77% coverage | DCI-P3 | 78% | |
Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. AUO G156HAN02.303 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 11.59W (Typ.) |
5. AUO G156HAN02.303 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 0.53/0.64A (Typ./Max.) | ||
Consumption | 1.75/2.11W (Typ./Max.) | |||||
Signal Type : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
Interface Features : | Position | Down | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
P-TWO | 187034-30091 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | |
6. AUO G156HAN02.303 Backlight Details
Backlight Features : | Type | WLED | Quantity | - | Position | Edge light type |
Replacement | - | Shape | - | Life Time | 50K(Min.) Hours | |
Interface Features : | Position | Down right corner | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
STM | MSB24038P5D | 1.25 mm | 5 pins | 1pcs | ||
Backlight Driver : | With LED Driver | |||||
Driver Electrical : | Driver Electrical : | 12.0±1.2V | Current Supply | - | ||
Consumption | 9.84/10.44W (Typ./Max.) | |||||
7. AUO G156HAN02.303 Carton Details
Package Type | Pcs/Package | Package LWH (mm) | G.W (kgs) |
16 | 450×375×319 | 13.20 |
Contact us to request the current datasheet and mechanical drawing for G156HAN02.303. Please include your application and required quantity so we can confirm the applicable revision.
