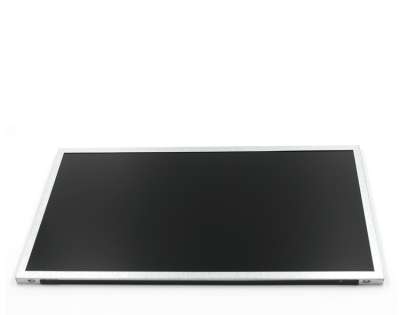

1、AUO G156HAT01.4 Application Details
Basic Info : | Panel Brand | AUO | Panel Model | G156HAT01.4 |
Diagonal Size | 15.6" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
Reliability : | Operating Temp. | -20 ~ 70 °C
| Storage Temp. | -20 ~ 70 °C |
RoHS State | RoHS | Vibration Level | - |
Specific Features : | With Touch, WLED Backlight，Life≥50k hours |
2、 AUO G156HAT01.4 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.05975×0.17925 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.17925×0.17925 mm (H×V) [141PPI] |
Mechanical Size : | Display Area (mm) | 344.16×193.59 mm (H×V) | Bezel Area(mm) | - |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style |
|
Touch Panel : | Touch Points | - | Touch Panel | PCAP, Air Bonding
|
3、AUO G156HAT01.4 Optical Details
Basic Information : | Brightness | 420 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) ms |
Color Performance : | Chromaticity | X:0.313; Y:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points)
|
4、AUO G156HAT01.4 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No
|
5、AUO G156HAT01.4 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Typ.) (Hours) |
Replacement | - | Lamp Shape | - | Position | Edge light type |
Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | - |
6、AUO G156HAT01.4 Interface Detail
Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - |
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | - |
Interface Features : | Type | Connector
| Position | - |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G156HAT01.4. Please include your application and required quantity so we can confirm the applicable revision.
