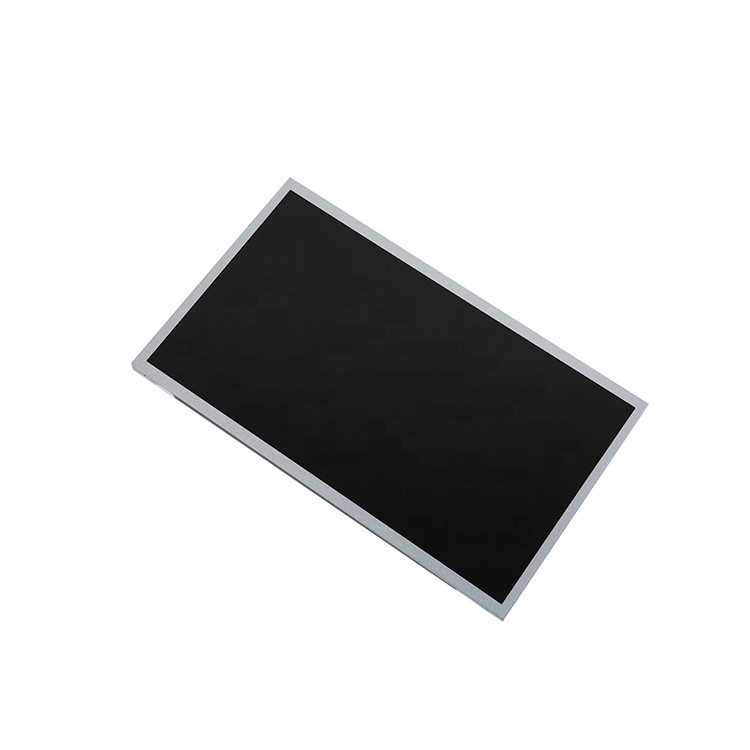

AUO G156HTN01.0 Application Details
Basic Detail : | Manufacturer | AUO | Model Name | G156HTN01.0 |
Panel Type | a-Si TFT-LCD , LCM | Model Alias |
|
Panel Size | 15.6inch | Designed For | Idustrial |
Maximum Ratings : | OP Temperature | -10~ 60 °C | ST Temperature | -20 ~ 60 °C |
RoHS | RoHS | Vibration Level | - |
Features : | WLED Backlight，With LED Driver,Reverse I/F，Matte |
AUO G156HTN01.0 Optical Details
Basic Information : | Luminance | 300 cd/m²(Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
Good View at | - | Response Speed | 6/3 (Typ.)(Tr/Td) |
Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
Color Temperature | 6485K | White Variation | 1.25/1.53 (Max.)(5/13 points) |
1931 Color Gamlt : | NTSC Ratio | 59% | sRGB | 79% coverage |
Adobe RGB | 62% coverage | DCI-P3 | 61% coverage |
Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G156HTN01.0 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)*1080 [FHD] | Arrangement | RGB Vertical Stripe |
Dot Pitch(W*H) | 0.05975*0.17925 mm | Pixel Pitch(W×H) | 0.17925*0.17925 mm [141PPI] |
Physical Size : | Active Viewing(mm) | 344.16(W)*193.59(H) mm | Outline Dim.(mm) | 359.5(H) × 224.3(V) |
Bezel Area(mm) | - | Depth(mm) | 3.55 (Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Outline Shape |
|
Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
Mounting : | Face mounting holes (8 pcs) on up, down slugs |
Other Spec : | Weight | 400g (Max.) | Treatment | Antiglare (Haze 25%) |
|
|
|
|
|
|
|
|
AUO G156HTN01.0 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 5.3W (Max.) |
AUO G156HTN01.0 Interface Detail
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 606mA (Max.) |
Consumption | 1.0W (Max.) | Signal Interface | eDP (2 Lanes) |
Interface Features : | Position | Right of Board | Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
I-PEX | 20455-030E-12 | 0.5 mm | 30 pins | 1pcs | EDP-30P2L-020A |
AUO G156HTN01.0 Backlight Details
Lamp Features : | Lamp Type | WLED | Quantity | - | Position | - |
Exchange | - | Lamp Shape | - | Lamp Life | 15K(Min.) Hours |
Interface Features : | Position | - | Physical Type |
Included in signal interface
|
Backlight Driver : | With LED Driver |
Driver Electrical : | Voltage Supply | 6.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - |
Consumption | 4.3W (Max.) |
|
|
|
|
|
|
|
|
|
|
AUO G156HTN01.0 Carton Details
Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
40pcs / box | 19.00 | 480×341×302mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G156HTN01.0. Please include your application and required quantity so we can confirm the applicable revision.
