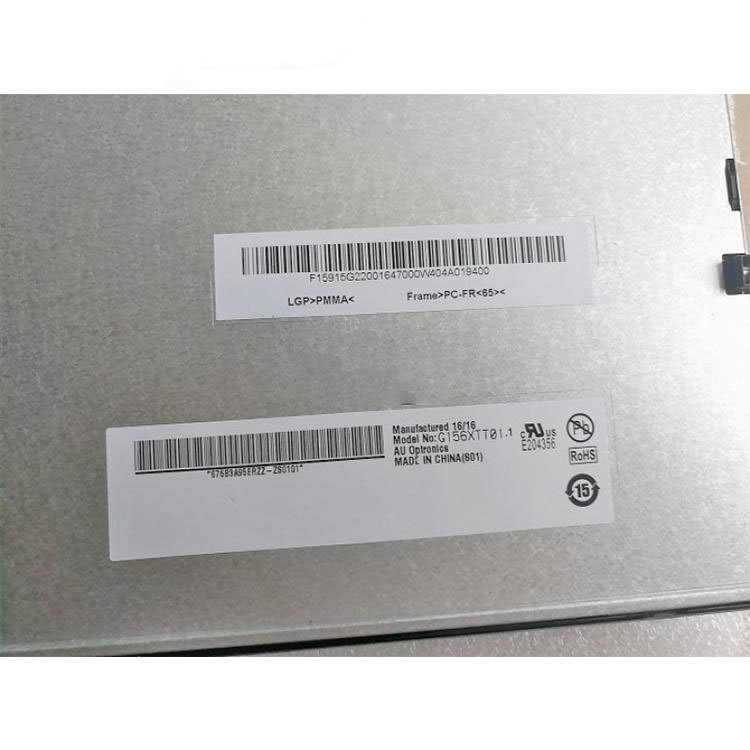

AUO G156XTT01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G156XTT01.1 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G156XTT01 V.1 |
| Panel Size | 15.6inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | With Touch，Lamp Repaceable， WLED Backlight，Life>=50K hours,With LED Driver, Upside I/F |
AUO G156XTT01.1 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 6/2 (Typ.)(Tr/Td); 8 (Typ.)(G to G) ms |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 67% | sRGB | 89% coverage |
| Adobe RGB | 69% coverage | DCI-P3 | 69% coverage |
| Rec.2020 | 50% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G156XTT01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1366(RGB)*768, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.084*0.252 mm | Pixel Pitch (W×H) | 0.252*0.252 mm [100PPI] |
| Physical Size : | Active Viewing(mm) | 344.232(W)*193.536(H) mm | Outline Dim. | 363.8(W)*215.9(H) mm |
| Bezel Area(mm) | - | Depth(mm) | 12.5 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Detail : | Weight | 1.35/1.49Kgs (Typ./Max.) | Treatment | Hard coating (7H) |
| Panel Cover | With Strengthened Cover Glass |
AUO G156XTT01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 8.15W (Typ.) |
AUO G156XTT01.1 Interface Detail
| Signal Electrical : | Input Current | 0.43/0.52A (Typ./Max.)
| Input Voltage | 5.0V (Typ.) |
| Consumption | 2.15/2.6W (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand
| Model | Pitch | Pins | Amount | Pin Assignment |
JAE
| FI-XB30SSL-HF15 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P1C8B-170A |
AUO G156XTT01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Top and Bottom) |
| Exchange | Replaceable | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Connector |
| Backlight Driver : | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount |
| E&T | 3808K-F05N-12R | 1.25 mm | 5pins | 1 pcs |
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 0.5/0.6A (Typ./Max.) |
| Consumption | 6.0/7.2W (Typ./Max.) |
AUO G156XTT01.1 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 8 pcs / box | 12.8 Kgs | 523*483*277 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G156XTT01.1. Please include your application and required quantity so we can confirm the applicable revision.
