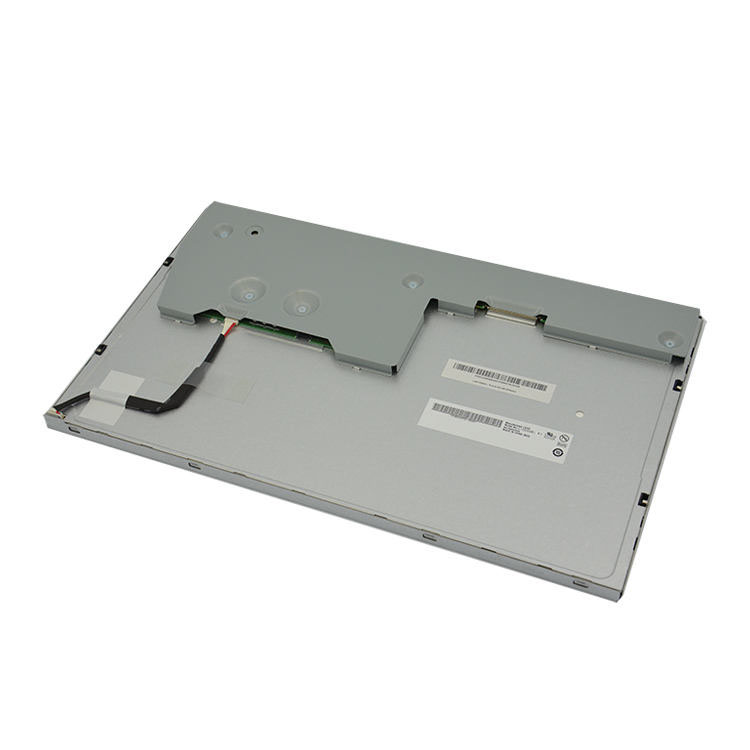

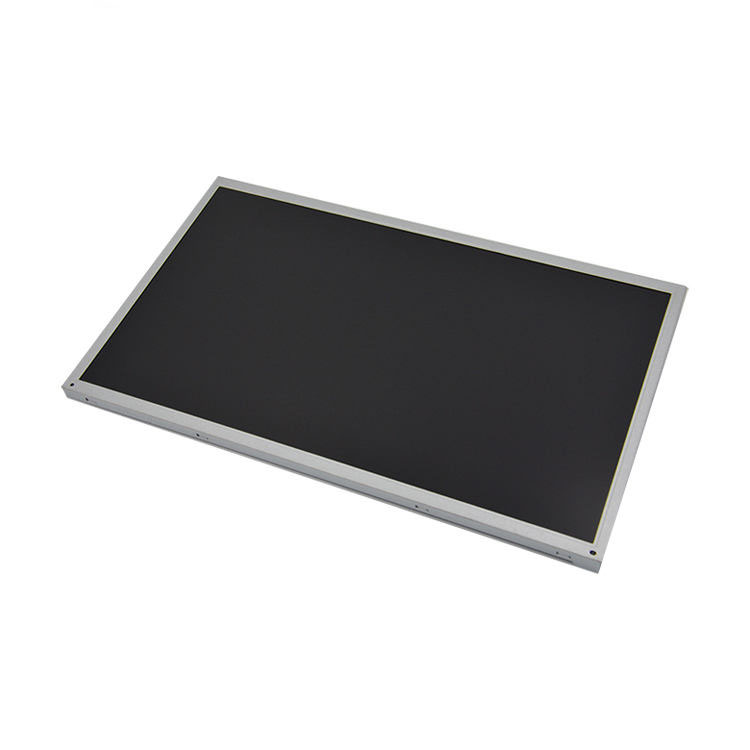

AUO G156XW01 V3 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G156XW01 V3 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G156XW01 V3 |
| Panel Size | 15.6inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²)
|
| Features : | WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F，Matte |
AUO G156XW01 V3 Optical Details
| Basic Information : | Luminance | 400cd/m²(Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 6/2 (Typ.)(Tr/Td) ms |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 67% | sRGB | 89% coverage |
| Adobe RGB | 69% coverage | DCI-P3 | 69% coverage |
| Rec.2020 | 50% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G156XW01 V3 Mechanical Details
| Pixel Features : | Number of Pixel | 1366(RGB)*768, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.084*0.252 (H*V) | Pixel Pitch(W*H) | 0.252*0.252 (H*V) [100PPI] |
| Physical Size : | Active Viewing(mm) | 344.232(H) *193.536(V) | Outline Dim.(mm) | 363.8*215.9 mm (H*V) |
| Bezel Area(mm) | 347.54*196.83 mm (H*V) | Depth(mm) | 9.3±0.5 mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight | 0.94/1.04Kgs (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G156XW01 V3 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 8.15/9.8W (Typ./Max.) |
AUO G156XW01 V3 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.43/0.52A (Typ./Max.) |
| Consumption | 2.15/2.60W (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| JAE | FI-XB30SSL-HF15 | 1.0 mm | 30 pins | 1pcs | LVDS-30P1C8B-170A |
AUO G156XW01 V3 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Bottom side)
|
| Exchange | No | Lamp Shape | - | Lamp Life | 50K(Min.) Hours |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | 3808K-F05N-12R | 1.25 mm | 5 pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0V | Current Supply | 0.5/0.6A (Typ./Max.) |
| Consumption | 6.0/7.2W (Typ./Max.) |
AUO G156XW01 V3 Carton Details
| Package Carton : | Amount
| Net Weight | Carton Size (L*W*H) |
| 16 pcs / box | 16.3 Kgs | 450*375*319 mm |
