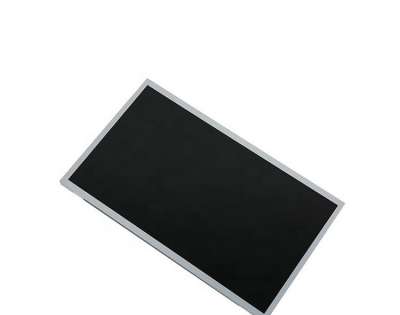

1.AUO G156XW01 V312 Application Details
Basic Information : | Brand | AUO | Model | G156XW01 V312 |
Type | a-Si TFT-LCD , LCM |
|
|
Screen Size | 15.6 inch
| Designed For | Industrial |
Environment :
| OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
Typical Features : | WLED Backlight，Life≥50K hours，With LED Driver，Upside I/F, Matte |
2.AUO G156XW01 V312 Mechanical Features
Pixel Features : | Resolution | 1366(RGB)×768, WXGA | Dot Pitch(mm) | 0.084×0.252 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.252×0.252 (H×V) [100PPI] |
Mechanical Size : | Active Area(mm) | 344.232(H) × 193.536(V) | Bezel Area(mm) | 347.54(H) × 196.83(V) |
Outline Dim.(mm) | 363.8(H) × 215.9(V) | Depth(mm) | 9.3±0.5 |
Outline Features : | Form Style | Flat Rectangle | Shape Style
|
|
Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
Mounting : | Side mounting holes (4-M3) on left, right bezel |
Other Spec : | Weight | 860±40g | Treatment | Antiglare, Hard coating (3H) |
3.AUO G156XW01 V312 Optical Details
Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
Best View on | - | Response(ms) | 6/2 (Typ.)(Tr/Td) |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 16.2M (6-bit + FRC) |
Color Temperature | 6485K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 65% | sRGB | 86% coverage |
Adobe RGB | 67% coverage | DCI-P3 | 68% coverage |
Rec.2020 |
49% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.AUO G156XW01 V312 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption: | 8.8/10.52W (Typ./Max.) |
5.AUO G156XW01 V312 Interface Detail
Signal Electrical : | Voltage Supply
| 5.0V (Typ.)
|
| Current Supply
| 0.43/0.52A (Typ./Max.)
|
Consumption | 2.15/2.6W (Typ./Max.) |
Signal Type : | LVDS (1 ch, 8-bit) | Logic Voltage | - |
|
Interface Features : | Position | Upper right of panel |
|
Type | Connector |
|
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
JAE | FI-XB30SSL-HF15
|
1.0 mm | 30 pins | 1 pcs | LVDS-30P1C8B-170A |
6.AUO G156XW01 V312 Backlight Details
Backlight Features | Type | WLED
| Quantity
| - | Position | Edge light type (Bottom side) |
Replacement | - | Shape | - | Life Time | 50K(Min.) (Hours) |
Interface Features : | Position | - |
| Type | Connector |
|
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
E&T | 3808K-F05N-12R | 1.25 mm | 5 pins | 1 pcs | - |
Backlight Driver : | With LED Driver |
Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 0.55/0.66A (Typ./Max.) |
Consumption | 6.6/7.92W (Typ./Max.) |
7.AUO G156XW01 V312 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
Carton | 16 | 450×375×319 | 15.30 |
-
