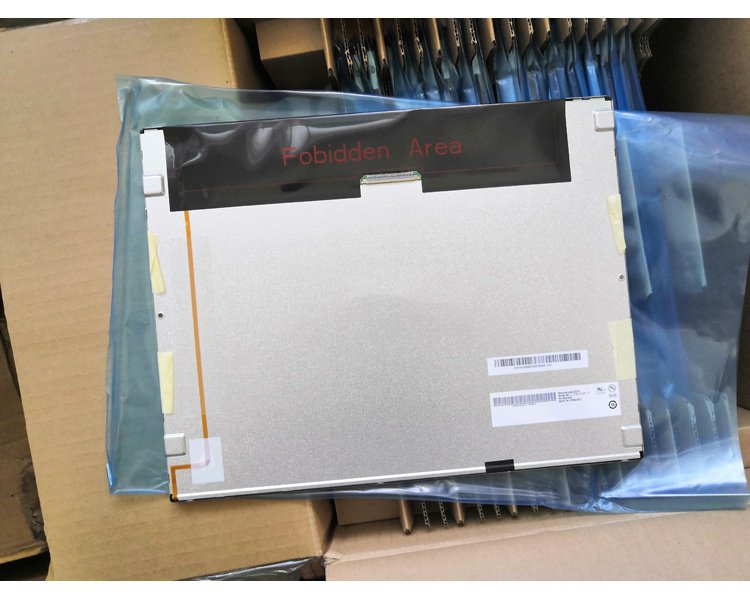

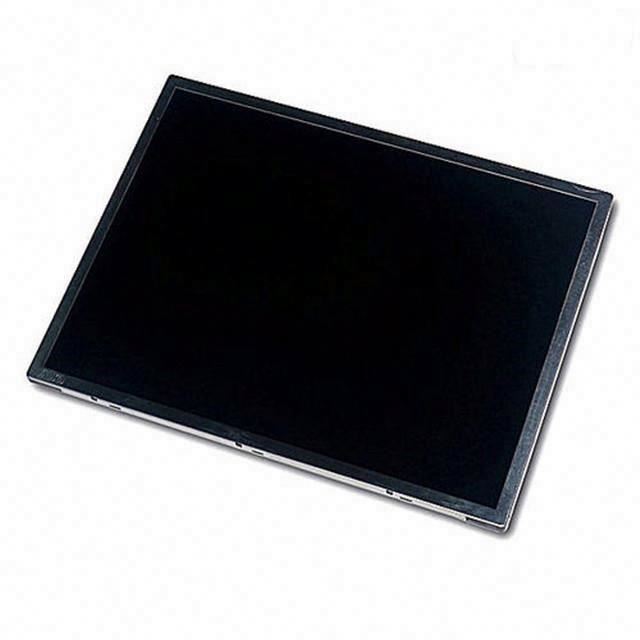

AUO G150XAB03.0 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | G150XAB03.0 |
| Diagonal Size | 15.0 inch | Application | Industrial |
| Panel Type | a-Si TFT-LCD , LCM | | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -20 ~ 70 °C |
| RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) |
| Specific Features : | With Touch， WLED Backlight，Life>=50K hours,With LED Driver，Reverse I/F, Glossy |
AUO G150XAB03.0 Mechanical Details
| Pixel Features : | Pixel Format | 1024(RGB)*768, XGA | Dot Pitch (mm) | 0.099*0.297 (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch (mm) | 0.297*0.297 (H*V) [85PPI] |
| Mechanical Size : | Display Area (mm) | 304.128(H) *228.096(V) | Outline Dim (mm). | - |
| Outline Dim. (mm) | 320.12(H) *258.4(V) | Outline Depth (mm) | 8.3 (Max.) |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 8:3 (H:V) | Shape Style | |
| Touch Panel : | Touch Points | 10 points | Touch Panel | On-Cell Touch |
| TP Controller | With controller | Touch Signal | USB (Win7, Win8, Win10) |
| Holes & Brackets : | Without |
| Other Features : | Weight | 980g (Max.) | Surface | Glare (Haze 0%) |
| Panel Cover | With Cover Lens |
AUO G150XAB03.0 Optical Details
| Brightness | Brightness | 400 cd/m²(Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 60% | sRGB | 78% coverage |
Adobe RGB | 62%
coverage | DCI-P3 | 62% coverage |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G150XAB03.0 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
AUO G150XAB03.0 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) (Hours) |
| Replacement | - | Lamp Shape | - | Position | Edge light type |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 0.49/0.54A (Typ./Max.) |
| Consumption | 5.91/6.48W (Typ./Max.) |
AUO G150XAB03.0 Interface Details
| Signal Systerm : | eDP (1 Lane) | | Logic Voltage | - | |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | | Current Input | 0.43/0.53A (Typ./Max.) |
| Consumption | 1.42/1.72W (Typ./Max.) |
| Interface Features : | Type
| Connector | Position | Down middle of panel |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20765-040E-11A | 0.5mm | 40 pins | 1 pcs | |
AUO G150XAB03.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 10 pcs / box | 10.0 kg | 508*408*279 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G150XAB03.0. Please include your application and required quantity so we can confirm the applicable revision.
