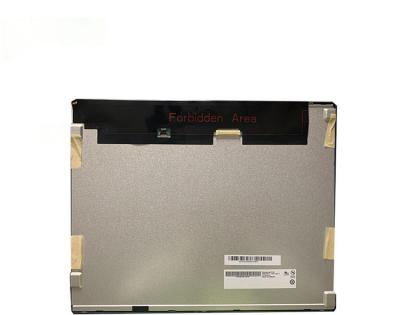

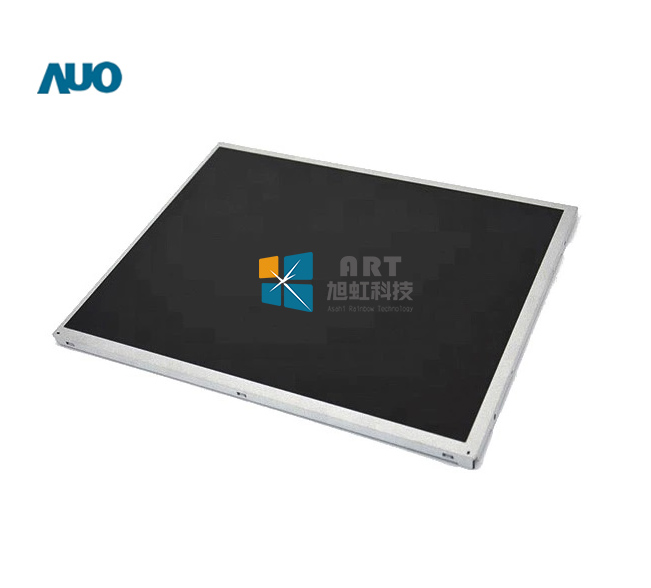

AUO 15.0inch G150XAN02.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G150XAN02.0 |
| Panel Type | a-Si TFT-LCD , LCM | | |
| Panel Size | 15.0 inch | Designed For | Industrial |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
Vibration Level
| 1.5G (14.7 m/s²) | RoHS | RoHS |
Features :
| Wide Temperature，WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F,Matte |
AUO 15.0inch G150XAN02.0 Optical Details
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed
| 25 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity
| 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 60% |
sRGB | 78% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 62% coverage |
| Rec.2020 |
45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO 15.0inch G150XAN02.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768 [XGA] | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H)
| 0.099*0.297 mm | Pixel Pitch(W×H) | 0.297*0.297 mm [85PPI] |
| Physical Size : | Active Viewing | 304.128(W)*228.096(H) mm |
Overall Dim. | 326.5(W)*253.5(H) mm |
| Bezel Opening | 309.9(W)*239.3(H) mm | Overall Depth | 9.05 (Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | | |
| Fixation : | Side mounting holes (4-M2) on left, right bezel |
| Other Detail : | Mass |
920g (Max.)
| Surface | Antiglare, Hard coating (3H) |
AUO 15.0inch G150XAN02.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 10.56W (Typ.) |
AUO 15.0inch G150XAN02.0 Interface Details
Signal Electrical :
| Input Current | 0.43/0.52A (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 1.41/1.70W (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | Upper middle of panel | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| STM | MSB240420HD | 1 pcs | 1.25 mm | 20 pins | |
AUO 15.0inch G150XAN02.0 Lightting Details
Lamp Features:
| Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
| Exchange | No | Amount | - | Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Connector | |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3808K-F05N-12R | 1 pcs | 1.25 mm | 5 pins | |
| Backlight Driver : | With LED Driver |
Driver Electrical :
| Input Current | 0.76/0.84A (Typ./Max.) | | Input Voltage | 12.0±1.2V | |
| Consumption | 9.15/10.03W (Typ./Max.) |
AUO 15.0inch G150XAN02.0 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 20 pcs / box | 430*370*350 mm | 20 Kgs |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G150XAN02.0. Please include your application and required quantity so we can confirm the applicable revision.
Request G150XAN02.0 Datasheet
