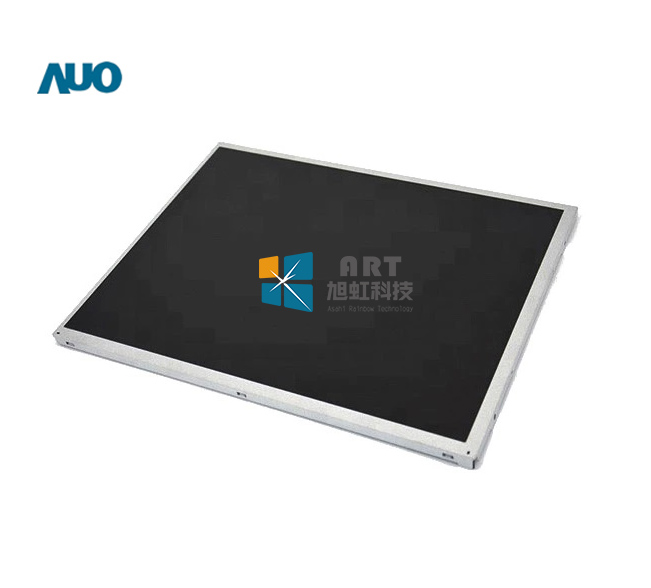

AUO G150XAN02.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G150XAN02.1 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 15inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | -20 ~ 75 °C | ST Temperature | -20 ~75 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Hight Brightness， WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F，Matt |
AUO G150XAN02.1 Optical Details
| Basic Information : | Luminance | 800 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 60% | sRGB | 78% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 62% coverage |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G150XAN02.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.099*0.297 (H*V) | Pixel Pitch(W*H) | 0.297*0.297 (H*V) [85PPI] |
| Physical Size : | Active Viewing(mm) | 304.128(H) *228.096(V) | Outline Dim.(mm) | 326.5(H) *253.5(V) |
| Bezel Area(mm) | 309.9(W)*236.36(H) mm | Depth(mm) | 9.0 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M2) on left, right bezel |
| Other Spec : | Weight | 920g (Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G150XAN02.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 12.13W (Typ.) |
AUO G150XAN02.1 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 420/510mA (Typ./Max.) |
| Consumption | 1.39/1.68W (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| STM | MSB240420HD | 1.25 mm | 20 pins | 1 pcs | |
AUO G150XAN02.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
No | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| E&T | 3808K-F05N-12R | 1.25 mm | 5 pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 0.90/0.98A (Typ./Max.) |
| Consumption | 10.74/11.78W (Typ./Max.) |
AUO G150XAN02.1 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 20pcs / box | 430*370*350 mm | 20.0 Kgs |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G150XAN02.1. Please include your application and required quantity so we can confirm the applicable revision.
