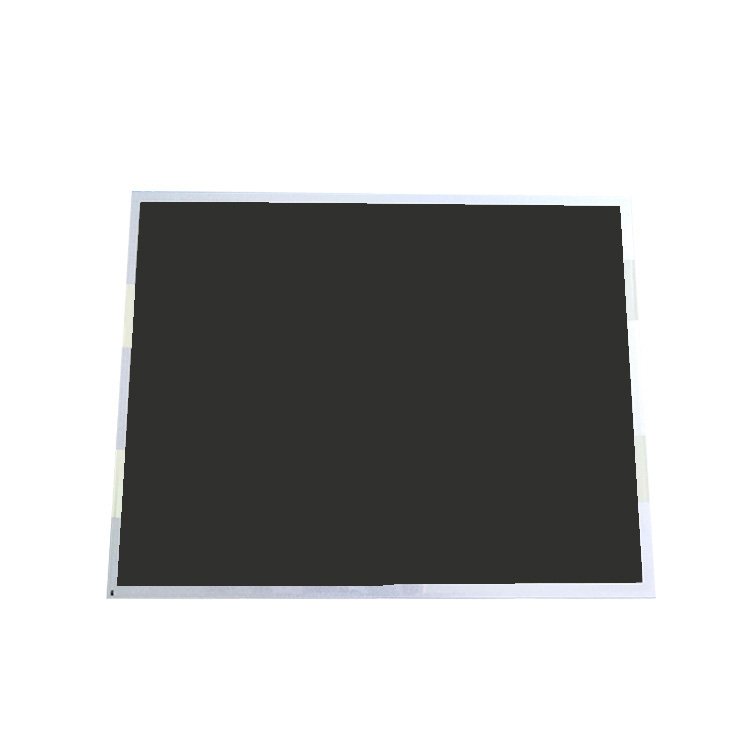

AUO G150XAN02.2 Application Details
| Basic Information : | Brand | AUO | Model | G150XAN02.2 |
| Type | a-Si TFT-LCD , LCM | Used For | Industrial |
| Screen Size | 15.0 inch | | |
Environment :
| Storage Temp. | -30 ~ 70 °C | Operating Temp. | -30 ~ 70 °C |
| RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) |
Typical Features :
| Wide Temperature，Ultra High Brightness，WLED Backlight,Life>=50K hours,With LED Driver,Upside I/F |
AUO G150XAN02.2 Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)*768, XGA | Dot Pitch(mm) | 0.099*0.297 mm |
Pixel Format
R | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297*0.297 mm [85PPI] |
Mechanical Size :
| Active Viewing | 304.128(W)*228.096(H) mm |
Overall Dim. | 326.5(W)*253.5(H) mm |
| Bezel Opening | 309.9(W)*236.36(H) mm | Depth(mm) | 9.8 (Max.) mm |
Outline Features :
| Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Fixation : | Side mounting holes (4-M2) on left, right bezel |
| Other Spec : | Weight | 950g (Typ.) | Treatment | Hard coating (3H), Antireflection |
AUO G150XAN02.2 Optical Details
| Basic Information : | Luminance(cd/m²)
| 1800 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) ms |
| Color Performance : | White Coordinate
|
Wx:0.313; Wy:0.329 | Display Colors | 16.2M (6-bit + FRC) |
Color Temperature
| 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 60% | sRGB | 78% coverage |
| Adobe RGB | 6276% coverage | DCI-P3 | 62% coverage |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO G150XAN02.2 Electronics Details
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 25.32W (Max.) |
AUO G150XAN02.2 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 0.42/0.51A (Typ./Max.) |
| Consumption | 1.39/1.68W (Typ./Max.) | | |
| Signal Type : | LVDS (1 ch, 8-bit) | Logic Voltage | - |

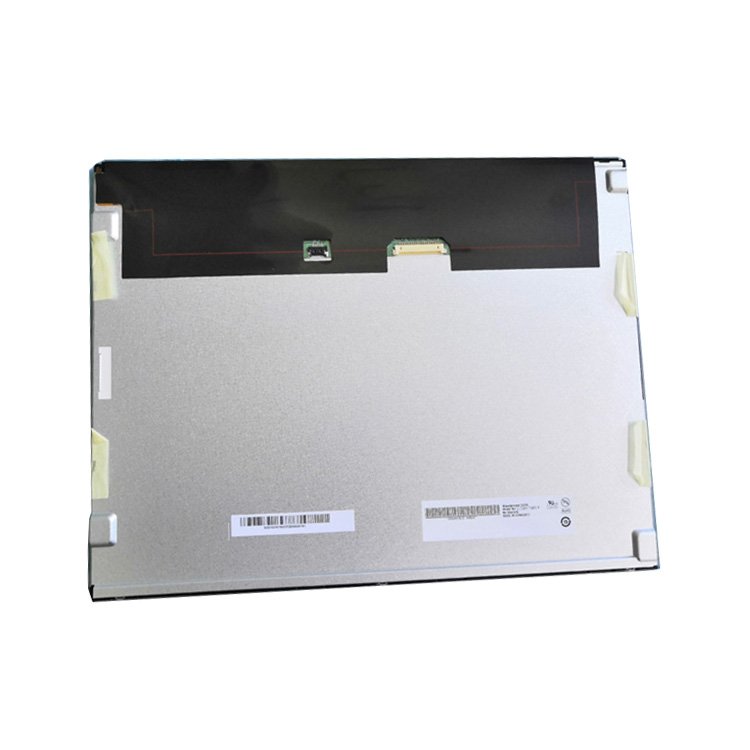

| Interface Features : | Position | Upper middle of panel | | Type | Connector |
Interface Detail :
| Brand | Model | Pitch | Pins | Quantity | Pin Assignment |
| STM |
MSB240420HD | 1.25 mm | 20 pins | 1 pcs | |
AUO G150XAN02.2 Backlight Details
| Backlight Features : | Type | WLED | Quantity | - | Position | Edge light type |
| Replacement | No | Shape | - | Life Time | 50K(Min.) Hours |
| Interface Features : | Position | - | | Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| E&T | 3808K-F05N-12R | 1.25 mm |
5 pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Voltage | 24.0±1.2V | Input Current | 0.894/1.035A (Typ./Max.) |
| Consumption | 21.45/23.6W (Typ./Max.) |
AUO G150XAN02.2 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 14 pcs / box | 16 Kgs | 430*370*350 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G150XAN02.2. Please include your application and required quantity so we can confirm the applicable revision.
