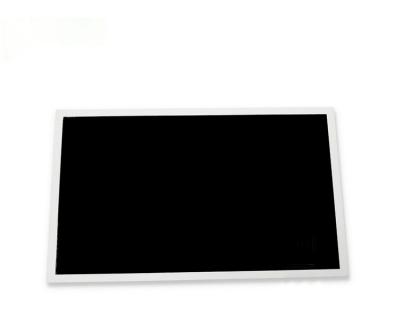

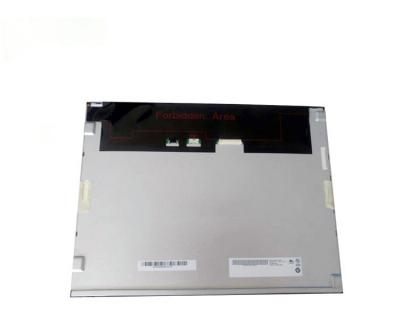

AUO G150XTK01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G150XTK01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 15inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Wide Temperature，WLED Backlight，Life>=70K hours,With LED Driver,Upside I/F，Matte,6/8 bit |
AUO G150XTK01.0 Optical Details
| Basic Information : | Luminance | 390cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 5.7/2.3 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 64% | sRGB | 85% coverage |
| Adobe RGB | 66% coverage | DCI-P3 | 66% coverage |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G150XTK01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.099*0.297 (H*V) | Pixel Pitch(W×H) | 0.297*0.297 (H*V) [85PPI] |
| Physical Size : | Active Viewing(mm) | 304.128(H) *228.096(V) | Outline Dim.(mm) | 326.5(H) *253.5(V) |
| Bezel Area(mm) | 314.2(W)*237.7(H) mm | Depth(mm) | 10.0 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Touchscreen : | TP Controller | With touch controller | TP Interface | USB |
| Touch Points | 5 points | TP Technology | On-Cell Touch |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight | 1.15Kgs (Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G150XTK01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 8.26W (Typ.) |
AUO G150XTK01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 450/540mA (Typ./Max.) |
| Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Logic Voltage for Signals : | 1.49/1.78W (Typ./Max.) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| STM | MSB240420E | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-135A |
AUO G150XTK01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
No | Lamp Shape | - | Lamp Life | 70K(Min.) (Hours) |
| Interface Features : | Position | Rear | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| E&T | 3808K-F05N-12R | 1.25 mm | 5 pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0±1.2V
| Current Supply |
0.45A (Typ.) |
| Consumption | 5.4W (Typ.) |
AUO G150XTK01.0 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 15 pcs / box | 434*380*353 mm | 20.0 Kgs |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G150XTK01.0. Please include your application and required quantity so we can confirm the applicable revision.
