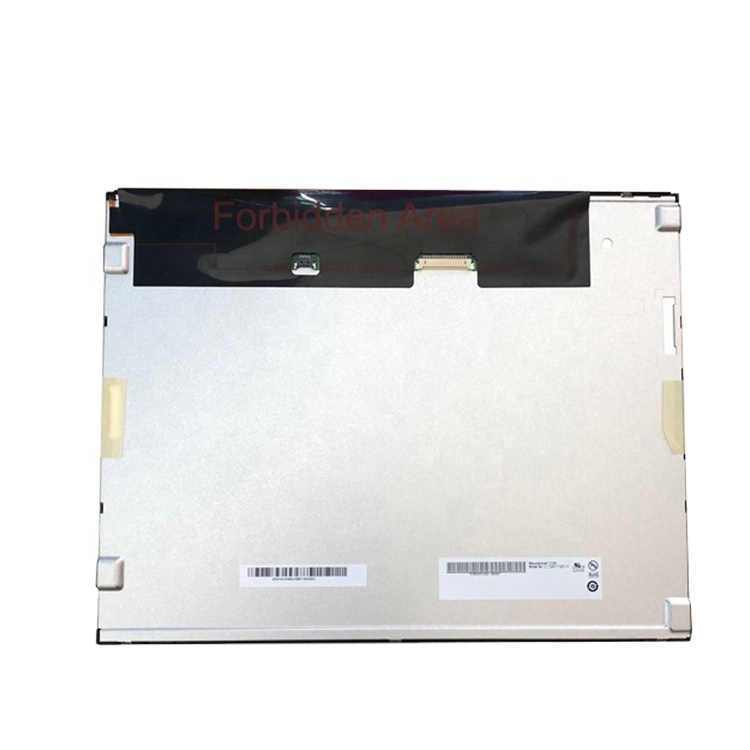

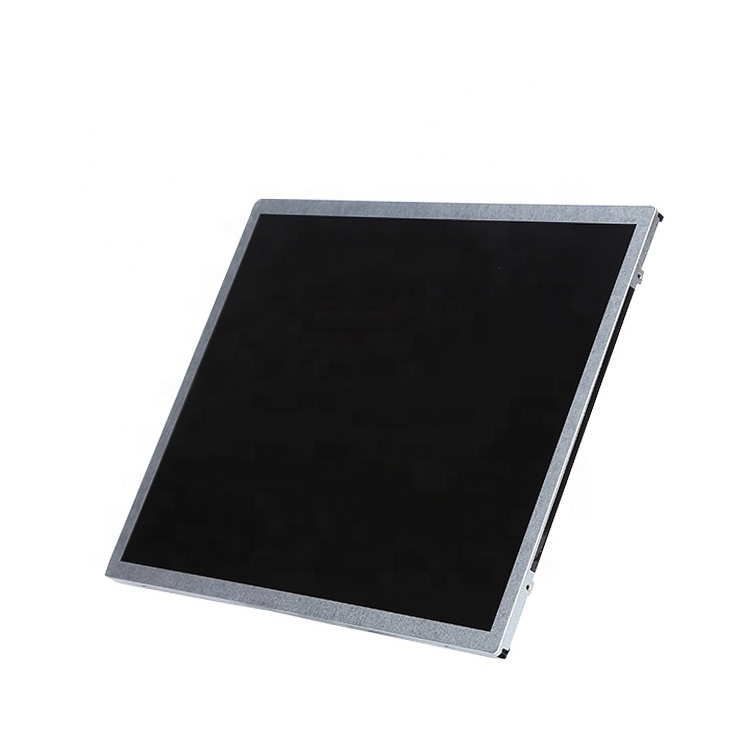

AUO G150XTN03.6 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G150XTN03.6 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 15 inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | 0 ~ 65°C | ST Temperature | -20 ~ 65°C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | WLED Backlight，Life>=50K hours, 6/8 bit，Matte |
AUO G150XTN03.6 Optical Details
| Basic Information : | Luminance | 250 cd/m² | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 5.7/2.3 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 60% | sRGB | 84% coverage |
| Adobe RGB | 63% coverage | DCI-P3 | 63% coverage |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G150XTN03.6 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768 [XGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.099*0.297 mm | Pixel Pitch(W*;H) | 0.297*0.297 mm [85PPI] |
| Physical Size : | Active Viewing(mm) | 304.128(W)*228.096(H) mm | Outline Dim.(mm) | 326.5(W)*253.5(H) mm |
| Bezel Area(mm) | 313.55(W)*237.25(H) mm | Depth(mm) | 10.0 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight
| 1.10Kgs (Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G150XTN03.6 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 7.5W (Typ.) |
AUO G150XTN03.6 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 0.9/1.5A (Typ./Max.) |
| Consumption | 3.0/5.0W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| STM | MSB240420HD | 1.25mm | 20 pins | 1 pcs | |
AUO G150XTN03.6 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Bottom side) |
| Exchange | No | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| E&T | 3808K-F05N-02R | 1.25 mm | 5 pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 0.735A (Typ.) |
| Consumption | 4.5/5.0W (Typ./Max.) |
AUO G150XTN03.6 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 19 pcs / box | 20.0 Kgs | 430*370*350 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G150XTN03.6. Please include your application and required quantity so we can confirm the applicable revision.
