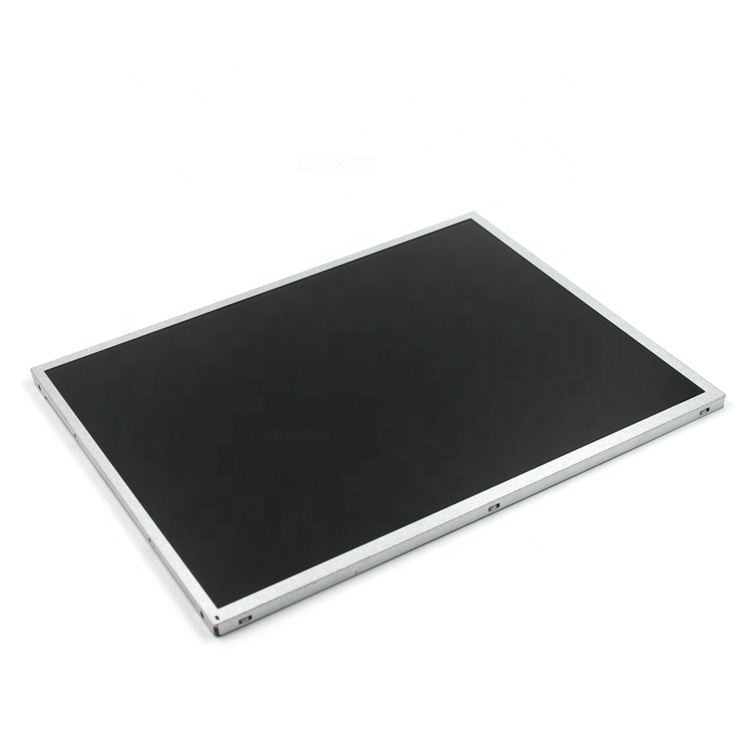

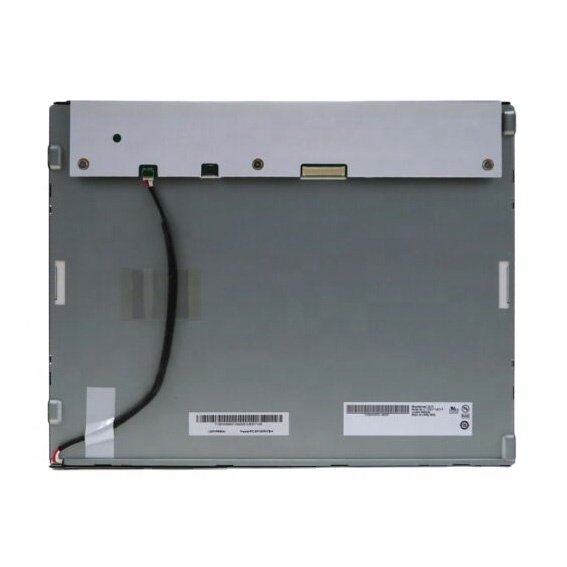

AUO G150XTN06.0 15-inch XGA Wide-Temperature LVDS LCD

Model:G150XTN06.0
Brand:AUO
Size:15.0inch
Resolution:1024×768
Brightness:450cd/m²
Perspective:80/80/70/80
Interface:LVDS
Operating Temp.:-30 ~ 85 °C
Production State:In Production

Click For Price

Technical Parameters

AUO G150XTN06.0 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G150XTN06.0
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	15 inch	Designed For	Idustrial
Maximum Ratings :	OP Temperature	-30 ~ 85 °C	ST Temperature	-30 ~ 85 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Wide Temperature,Lamp Repaceable,WLED Backlight，Life>=70K hours, With LED Driver,6/8 bit，Matte,Upside I/F

AUO G150XTN06.0 Optical Details

Basic Information :	Luminance	450cd/m² (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	5.7/3.2 (Typ.)(Tr/Td) (ms)
	Viewing Angle	80/80/70/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.311; Wy:0.322	Support Color	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6658K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	64%	sRGB	85% coverage
	Adobe RGB	66% coverage	DCI-P3	66% coverage
	Rec.2020	47% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G150XTN06.0 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768 [XGA]			Arrangement	RGB Vertical Stripe
	Dot Pitch(W*H)	0.099*0.297 mm			Pixel Pitch(W*H)	0.297*0.297 mm [85PPI]
Physical Size :	Active Viewing(mm)	304.128(W)*228.096(H) mm			Outline Dim.(mm)	326.5(W)*253.5(H) mm
	Bezel Area(mm)	307.4(W)*231.3(H) mm			Depth(mm)	12.0±0.5 mm
Outline Features :	Form Style	Flat Rectangle			Outline Shape
	Aspect Ratio	4:3 (H:V)			Orientation	Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight		1.00Kgs (Max.)	Treatment			Antiglare, Hard coating (3H)

AUO G150XTN06.0 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Total Consumption :	12.0W (Typ.)

AUO G150XTN06.0 Interface Detail

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	450/750mA (Typ./Max.)
Signal Electrical :	Consumption	1.49/2.48W (Typ./Max.)		Signal Interface	LVDS (1 ch, 6/8-bit)
Interface Features :	Position	Rear		Type	Connector
Interface Detail :	Brand	Model	Pitch	Pins	Quantity	Pin Configuration
Interface Detail :	STM	MSB240420E	1.25mm	20 pins	1 pcs	LVDS-20P1C8B-135A

AUO G150XTN06.0 Backlight Details

Lamp Features :	Lamp Type	WLED		Quantity		-	Position			Edge light type (Bottom side)
	Exchange	Replaceable		Lamp Shape		-	Lamp Life			70K(Min.) (Hours)
Interface Features :	Position	-		Physical Type		Connector
Interface Detail :	Brand	Model		Amount		Pin Pitch		Pin Amount			Pin Assignment
	E&T	3808K-F05N-12R		1 pcs		1.25 mm		5 pins
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply		12.0±1.2V		Current Supply				0.75A (Typ.)
	Consumption		9.0W (Typ.)

AUO G150XTN06.0 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	15pcs / box	18.5 Kgs	434380353 mm (LWH)

Get In Touch

Industrial LCD screen information

G084XAN01.0 discontinuation notice07-01

G104XVN01.0 Product Engineering Change Notice for 10.4-inch TFT-LCD Modules06-25

AUO LCD screen product lifecycle management: smooth EOL process ensures customer06-10

AU Optronics 10.1-inch G101EAN TFT-LCD Module Incoming Inspection Specification 06-09

G150XAN02 V0 displays abnormal Failure Analysis Report06-03

AU 8.5-inch Wide Temperature Industrial Screen G085VW01 V0 Formally Discontinued06-01

Engineering and procurement summary

G150XTN06.0 specifications and buying guidance

G150XTN06.0 is a 4:3 XGA industrial panel intended for long-life equipment, legacy HMI replacement and systems that require a wide listed temperature range.

Verification note: Values below are based on the current product record. Confirm the latest manufacturer datasheet, drawing and supply status before design approval or purchase.

Key specifications

Panel size	15.0 inch	Resolution	1024 × 768 (XGA)
Brightness	450 cd/m² typical	Contrast	800:1 typical
Interface	Single-channel 6/8-bit LVDS, 20-pin	Viewing angle	80/80/70/80 typical
Operating range	-30°C to 85°C listed operating range	Outline	326.5 × 253.5 × 12.0 mm
Backlight	WLED, 70,000-hour minimum listed life, LED driver	Supply status	Listed in production; reconfirm before purchase

Application scenarios

Factory automation and CNC controls
Industrial test and measurement equipment
Legacy 15-inch HMI replacement projects

Selection advice

Check the 326.5 × 253.5 mm outline, 20-pin single-channel LVDS assignment, rear connector position, 3.3 V panel supply, 12 V backlight input and side mounting holes.

Compatibility and replacement guidance

When replacing an older 15-inch XGA panel, compare the exact connector position, pin assignment, LVDS mapping, timing, mounting, depth, brightness and backlight power. A matching 1024 × 768 image format is not enough.

Frequently asked questions

What interface does G150XTN06.0 use?

The product record lists single-channel 6/8-bit LVDS on a 20-pin connector.

What makes it useful for legacy equipment?

Its 15-inch 4:3 XGA format is common in older industrial HMIs, but replacement still requires full electrical and mechanical verification.

Is the backlight life guaranteed at 70,000 hours?

The current record lists a 70,000-hour minimum specification. Actual life depends on operating conditions and should be confirmed against the latest documentation.

What should I send for a replacement review?

Send panel-label photos, the existing drawing or datasheet, controller details, quantity, application and delivery requirements.
