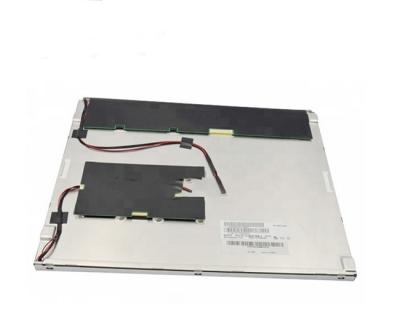

AUO G150XTN06.3 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G150XTN06.3 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 15.0inch | Designed For | Idustrial，Outdoor High Brightness |
| Maximum Ratings : | OP Temperature | -30 ~ 70°C | ST Temperature | -30 ~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Wide Temperature，Ultra High Brightness ，WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F,6/8 bit |
AUO G150XTN06.3 Optical Details
| Basic Information : | Luminance | 1600cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 5.7/2.3 (Typ.)(Tr/Td) ms |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.311; Wy:0.322 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6658K | White Variation | 1.25/1.33(Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 64% | sRGB | 85% coverage |
| Adobe RGB | 66% coverage | DCI-P3 | 66% coverage |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
AUO G150XTN06.3 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.099*0.297 mm (H*V) | Pixel Pitch(W*H) | 0.297*0.297 mm (H*V) [85PPI] |
| Physical Size : | Active Viewing(mm) |
304.128*228.096 mm (H*V) | Outline Dim.(mm) | 307.4*231.3 mm (H*V) |
| Bezel Area(mm) | 326.5*253.5 mm (H*V) | Depth(mm) | 13.0 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight | 1.32Kgs (Typ.) | Treatment | Hard coating (2H), Antireflection |
AUO G150XTN06.3 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 27.89W (Typ.) |
AUO G150XTN06.3 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 450/750mA (Typ./Max.) |
| Consumption | 1.49/2.48W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| STM | MSB240420E | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-135A |
AUO G150XTN06.3 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Top and Bottom) |
| Exchange | No | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| | 3806K-X12X-03X | | 12 pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 1.65A (Typ.) |
| Consumption | 19.8W (Typ.) |
AUO G150XTN06.3 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 12 pcs / box | - | - |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G150XTN06.3. Please include your application and required quantity so we can confirm the applicable revision.
