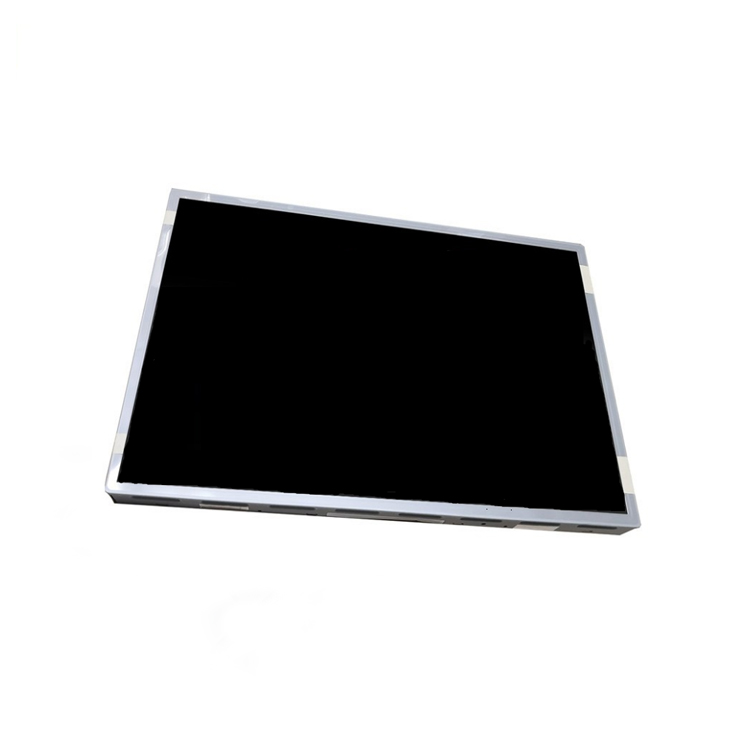

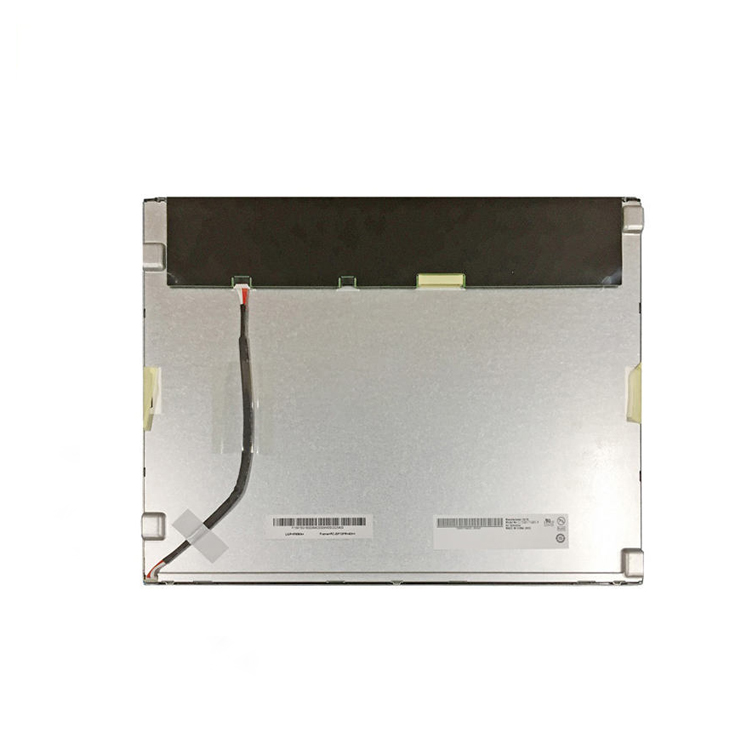

AUO G150XTN06.6 Application Details
| Basic Information : | Brand | AUO | Model | G150XTN06.6 |
| Type | a-Si TFT-LCD , LCM | Used For | Industrial |
| Screen Size | 15.0 inch | | |
| Environment : | Storage Temp. | -30 ~ 85 °C | Operating Temp. | -30 ~ 85 °C |
| RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) |
Typical Features :
| Wide Temperature，WLED Backlight，Life>-50K hours,With LED Driver,Upside I/F,Matte |
AUO G150XTN06.6 Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)*768, XGA | Dot Pitch(mm) |
0.099*0.297 (H*V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297*0.297 (H*V) [85PPI] |
Mechanical Size :
| Active Area(mm)
| 304.128(H) *228.096(V) | Bezel Area(mm) | 311.9(H) *236.85(V) |
| Outline Dim.(mm) | 326.5(H) *253.5(V) | Depth(mm) | 10.0 (Max.) |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight | 1.00Kgs (Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G150XTN06.6 Optical Details
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | - | Response(ms) | 5.7/2.3 (Typ.)(Tr/Td) |
Color Performance :
| White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 16.2M (6-bit + FRC) |
Color Temperature
| 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 60% | sRGB | 84% coverage |
| Adobe RGB | 63% coverage | DCI-P3 | 63% coverage |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G150XTN06.6 Electronics Details
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption: | 9.78W (Typ.) |
AUO G150XTN06.6 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | | Current Supply | 1.0/1.2A (Typ./Max.) |
| Consumption | 3.3/3.96W (Typ./Max.) |
| Signal Type : | eDP (1 Lane), eDP1.2 | | Logic Voltage | - | |
| Interface Features : | Position | Upper middle of panel | Type | Connector | |
| Interface Detail : | Brand |
Model | Pitch | Pins | Quantity | Pin Configuration |
| STM | MSAK24025P30 | 0.5 mm | 30 pins | 1 pcs | EDP-30P1L-030A |
AUO G150XTN06.6 Backlight Details
| Backlight Features : | Type | WLED | Quantity | - | Position | Edge light type (Top side) |
| Replacement | No | Shape | - | Life Time | 50K(Min.) (Hours) |
| Interface Features : | Position | - | | Type | Included in signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0±1.2V | | Current Supply | 0.54/0.65A (Typ./Max.) |
| Consumption | 6.48/7.80W (Typ./Max.) |
AUO G150XTN06.6 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 14 pcs / box | 16.5 Kgs | 430*370*350 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G150XTN06.6. Please include your application and required quantity so we can confirm the applicable revision.
