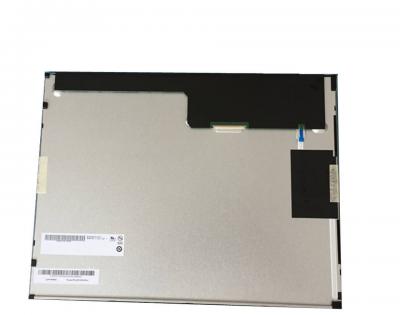

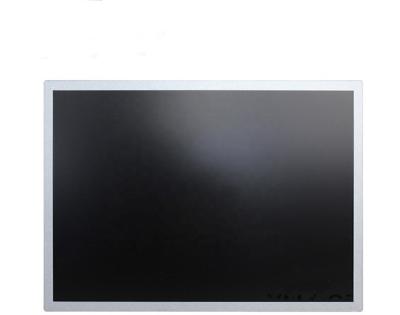

AUO G150XVN01.2 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G150XVN01.2 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 15.0inch | Designed For | Idustria，Medical Imaging |
| Maximum Ratings : | OP Temperature | -10 ~ 70°C | ST Temperature | -30 ~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | WLED Backlight，Life>=50K hours,180°Reverse，6/8bit，With LED Driver,Upside I/F, matte |
AUO G150XVN01.2 Optical Details
| Basic Information : | Luminance | 400cd/m² (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 20/15 (Typ.)(Tr/Td) ms |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.325 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 7274K | White Variation | 1.33(Max.)(5 points) |
AUO G150XVN01.2 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.099*0.297 mm (H*V) | Pixel Pitch(W*H) | 0.297*0.297 mm (H*V) [85PPI] |
| Physical Size : | Active Viewing(mm) | 304.128*228.096 mm (H*V) | Overall Dim. | 326.5(W)*253.5(H) mm |
| Bezel Opening | 307.2*231.1 mm (H*V) | Depth(mm) | 9.5 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight | TBD | Treatment | Antiglare, Hard coating (3H) |
AUO G150XVN01.2 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
AUO G150XVN01.2 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | TBD |
| Consumption | TBD | Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Configuration |
| HRS | DF14H-30P-1.25H | 1.25 mm | 30 pins | 1 pcs | |
AUO G150XVN01.2 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | No | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | - |
AUO G150XVN01.2 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 10 pcs / box | 12.5 Kgs | 410*278*360 mm |
-
