Product Overview

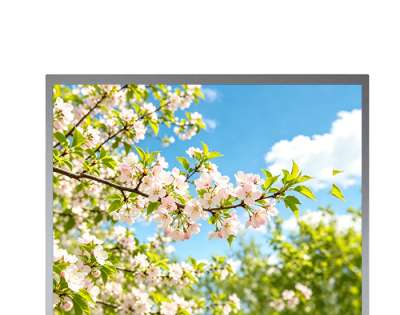

The AUO G170EG01 V104 is a 17.0-inch industrial-grade TFT-LCD display module manufactured by AU Optronics (AUO). First introduced in 2022, this panel delivers SXGA resolution (1280×1024) in a classic 5:4 aspect ratio, making it an ideal choice for traditional industrial control systems, legacy equipment upgrades, and embedded applications that require reliable, square-format displays.
Featuring a 5:4 aspect ratio—widely used in industrial control panels and automation equipment—the G170EG01 V104 offers balanced dimensions that fit seamlessly into standard industrial enclosures. With 350 cd/m² high brightness, 800:1 contrast ratio, and an ultra-wide operating temperature range of -30°C to 85°C, this panel is engineered to perform reliably in the most demanding environments.
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G170EG01 V104 |
Screen Size | 17.0 inch |
Resolution | SXGA 1280 × 1024 |
Pixel Density | 96 PPI |
Aspect Ratio | 5:4 |
Display Technology | a-Si TFT-LCD, TN, Normally White, Transmissive |
Brightness | 350 cd/m² (Typ.) |
Contrast Ratio | 800:1 (Typ.) |
Viewing Angle | 80°/80°/60°/80° (Typ.)(CR≥10) |
Response Time | 20/10 ms (Typ.)(Tr/Td) |
Display Colors | 16.7M (8-bit) |
Interface | LVDS (2 ch, 8-bit), 30 pins |
Backlight Type | WLED, Edge type (Top side) |
Backlight Life | ≥50,000 hours (Min.) |
LED Driver | Built-in |
Operating Temperature | -30°C ~ 85°C |
Storage Temperature | -30°C ~ 85°C |
Active Area | 337.92 × 270.336 mm |
Outline Dimension | 358.5 × 296.5 × 12.45 mm (Typ.) |
Surface Treatment | Anti-Glare, Hard coating (3H) |
Weight | 1.35Kgs (Typ.) |
Vibration Resistance | 1.5G (14.7 m/s²) |
Production Status | In Production (since Q3 2023) |
Key Advantages
1. Ultra-Wide Operating Temperature (-30°C to 85°C)
With an industry-leading operating temperature range of -30°C to 85°C, this panel is specifically designed for harsh environment applications. Whether deployed in freezing cold storage facilities or high-temperature outdoor kiosks, the G170EG01 V104 maintains stable performance without compromise.
2. 5:4 Classic Industrial Aspect Ratio
The 5:4 aspect ratio is the long-standing standard for industrial control systems, medical devices, and legacy equipment interfaces. This ensures seamless compatibility with existing software interfaces without awkward scaling or cropping. The 5:4 format remains widely used in industrial control panels, legacy systems, and automation equipment.
3. Reliable Backlight with Built-in LED Driver
The WLED backlight system offers a remarkable ≥50,000-hour lifespan (minimum), significantly reducing maintenance costs and downtime in continuous operation scenarios. The built-in LED driver simplifies system integration and reduces external power circuitry requirements.
4. High Brightness & High Contrast (350 cd/m² / 800:1)
The combination of 350 cd/m² brightness and 800:1 contrast ratio ensures excellent readability even in brightly lit environments such as factory floors, outdoor terminals, and medical operating rooms. The anti-glare surface treatment (3H hard coating) further enhances visibility by reducing unwanted reflections.
5. LVDS Interface for Industrial Compatibility
The dual-channel LVDS interface provides stable signal transmission and wide compatibility with industrial controllers, making it an excellent choice for industrial PCs and control systems.
6. Drop-in Replacement for Legacy Models
G170EG01 V104 is designed as a direct replacement for G170EG01 V1, with fully compatible structural parameters and updated ICs for long-term stable supply. New and existing projects can confidently select this model.
Applications
The AUO G170EG01 V104 is designed for demanding industrial, medical, and commercial applications requiring high reliability and environmental durability:
Application Area | Specific Use Cases |
Industrial Automation HMI | Control panels, operator interfaces, PLC terminals. |
Industrial PCs (IPC) | Embedded and rack-mounted industrial computers. |
Medical & Laboratory Devices | Diagnostic instruments, patient monitors, lab displays. |
Outdoor Kiosks | Ticketing machines, information kiosks, EV charging displays |
Machine Control Systems | CNC machines, manufacturing equipment, process control |
Security & Monitoring | Surveillance control, system monitoring stations |
Transportation Displays | Railway onboard displays, vehicle terminals |
Oil & Gas / Mining | Deep-well drilling monitors, explosion-proof mining panels |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Order Information
Item | Details |
Model | AUO G170EG01 V104 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Ready to order or need more information?
Contact us today for a quote or technical consultation.
