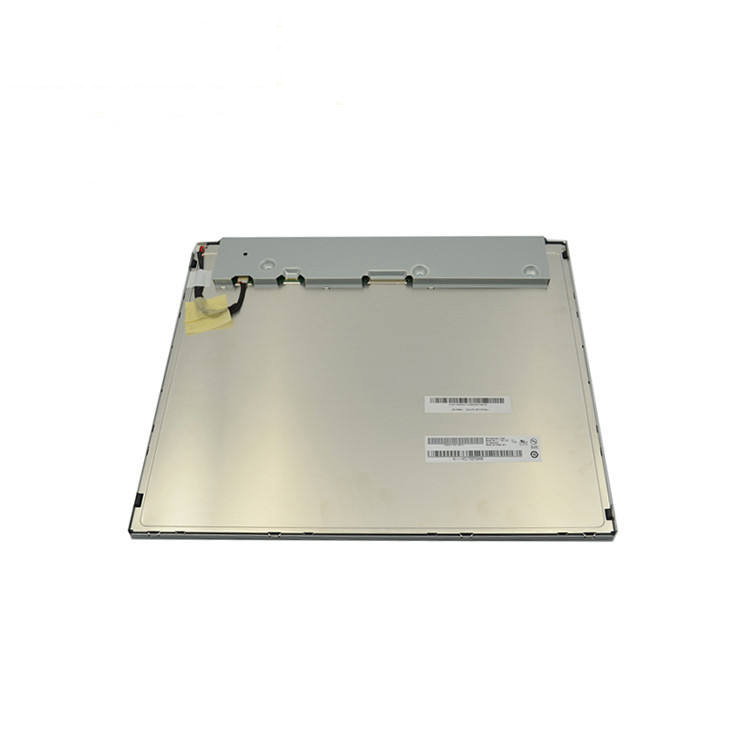

| Basic Detail : | Manufacturer | AUO | Model Name | G170EG01 V1 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G170EG01 V.1 | |
| Panel Size | 17.0inch | Designed For | Idustrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature,Lamp Repaceable,WLED Backlight,Life>=50K hours, With LED Driver, Upsede I/F,Matte | |||
| Basic Information : | Luminance | 350cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 20/10 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 93% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1280(RGB)*1024, SXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.088*0.264 mm | Pixel Pitch(W*H) | 0.264*0.264 mm [96PPI] | |
| Physical Size : | Active Viewing(mm) | 337.92(W)*270.336(H) mm | Overall Dim. | 358.5(W)*296.5(H) mm |
| Bezel Opening | 341.6(W)*274.0(H) mm | Outline Depth | 18.0 (Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 5:4 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.35Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 22W (Typ.) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 1.05/1.16A (Typ./Max.) | ||
| Consumption | 5.25/5.8W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | Rear | Type | Connector | ||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| JAE | FI-XB30SSL-HF15 | 1.0mm | 30 pins | 1pcs | LVDS-30P2C8B-190A | |
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Top side) | ||||||||
| Exchange | Replaceable | Lamp Shape | - | Lamp Life | 50K(Min.) Hours | |||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | ||||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||||||||
| E&T | 3806K-F06Y-03R | 1.25 mm | 6 pins | 1 pcs | ||||||||||
| Backlight Driver : | With LED Driver | |||||||||||||
| Driver Electrical : | Voltage Supply | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Supply | 1.18A (Typ.) | ||||||||||
| Consumption | 14.16W (Typ.) | |||||||||||||
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 8 pcs / box | 18.0 Kgs | 434*278*391 mm |
