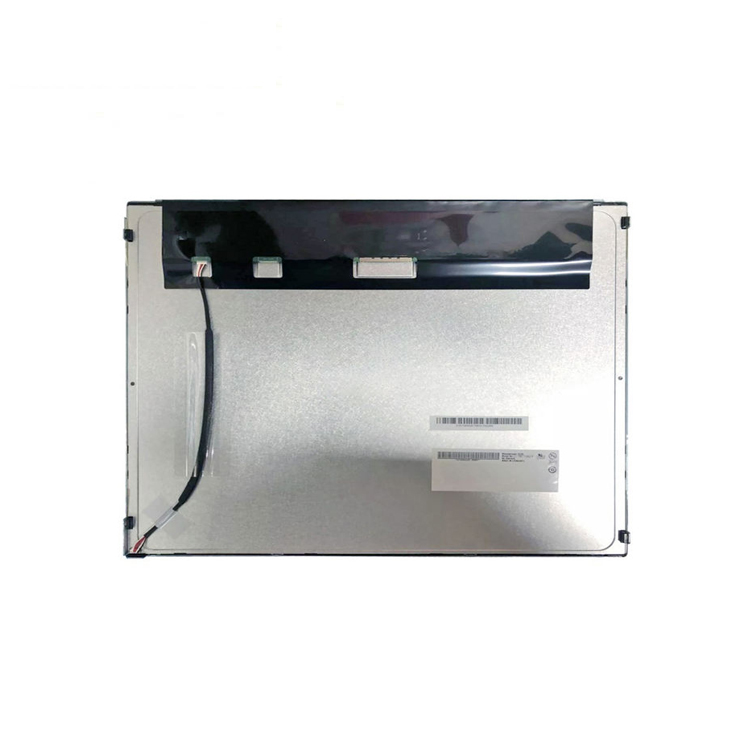

AUO G170ETN02.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G170ETN02.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 17.0inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Wide Color Gamut,DCI-P3,Srgb,Wide Temperature,WLED Backlight，Life>=50K hours, With LED Driver， Upsede I/F，Matte |
AUO G170ETN02.0 Optical Details
| Basic Information : | Luminance | 400cd/m²(Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 15/5 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9points) |
| 1931 Color Gamlt : | NTSC Ratio | 89% | sRGB | 99% coverage
|
| Adobe RGB | 79% coverage | DCI-P3 | 90% coverage |
| Rec.2020 | 66% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G170ETN02.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*1024, SXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.088*0.264 mm | Pixel Pitch(W*H) | 0.264*0.264 mm [96PPI] |
| Physical Size : | Active Viewing(mm) | 337.92(W)*270.336(H) mm | Overall Dim. | 358.5(W)*296.5(H) mm |
| Bezel Opening | 341.6(W)*274.0(H) mm | Outline Depth | 12.45 (Typ.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 5:4 (H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 1.59Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G170ETN02.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 15.4W (Typ.) |
AUO G170ETN02.0 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.8/1.0A (Typ./Max.) |
| Consumption | 4/4.5W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| HRS | MDF76URW-30S-1H | 1.0mm | 30 pins | 1pcs |
LVDS-30P2C8B-200A |
AUO G170ETN02.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Top side) |
| Exchange | No | Lamp Shape | - | Lamp Life | 50K(Min.) Hours |
| Interface Features : | Position | - | Physical Type |
Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| JST | SM10B-SHLS-TF | 1.0mm | 10 pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 0.95/1.14A (Typ./Max.) |
| Consumption | 11.4/13.68W (Typ./Max.) |
AUO G170ETN02.0 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 8 pcs / box | 13.5 Kgs | 448*283*397 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G170ETN02.0. Please include your application and required quantity so we can confirm the applicable revision.
