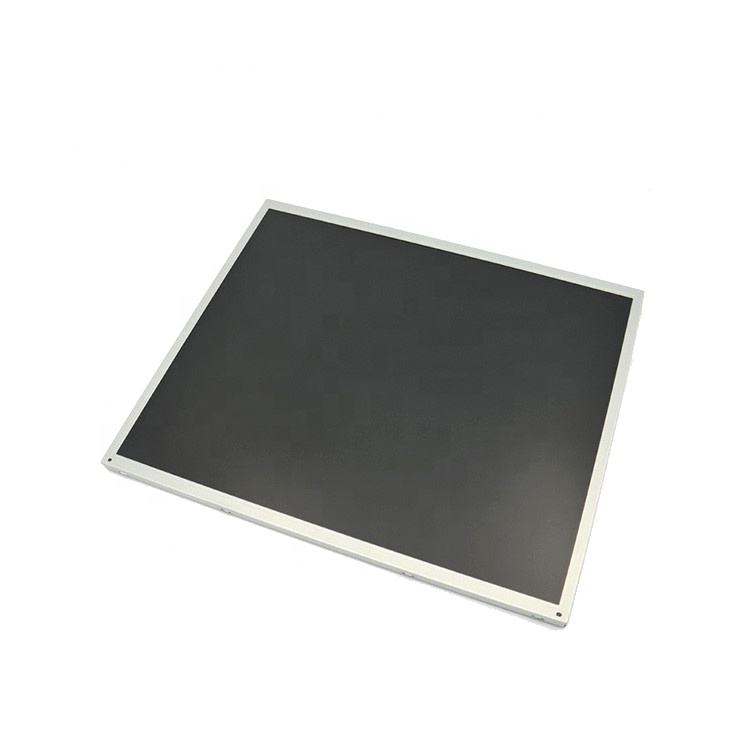

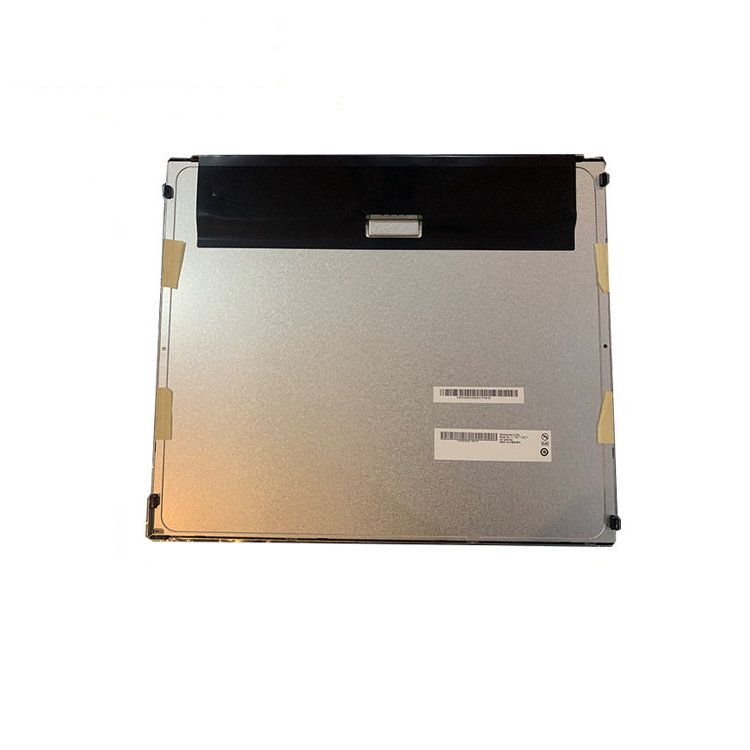

AUO G170ETN02.1 is a 17.0-inch industrial TFT-LCD
module with a native SXGA resolution of 1280 × 1024 pixels, typical
brightness of 800 cd/m² and a wide operating temperature range of
-30°C to +85°C. It uses a dual-channel, 8-bit LVDS signal interface
and is designed for industrial equipment, outdoor kiosks, control
terminals and other applications that require a high-brightness
5:4 display.
The specifications below are based on the AUO G170ETN02.1 Final Product Specification, document
version 1.2, dated November 7, 2017. Buyers should verify
the complete model number, product label, connector, mechanical
drawing and current production status before approving a replacement
or placing a production order.
G170ETN02.1 Key Specifications
| Manufacturer | AUO / AUO Display Plus |
|---|
| Model | G170ETN02.1 |
|---|
| Display size | 17.0 inches / 432 mm diagonal |
|---|
| Native resolution | 1280 × 1024 pixels, SXGA |
|---|
| Aspect ratio | 5:4 |
|---|
| Display mode | Normally White |
|---|
| Brightness | 800 cd/m² typical; 640 cd/m² minimum |
|---|
| Contrast ratio | 700:1 typical; 500:1 minimum |
|---|
| Viewing angle | 80/80/60/70° typical (left/right/up/down, CR≥10) |
|---|
| Response time | 20 ms typical (15 ms rising + 5 ms falling) |
|---|
| Supported colors | 16.7 million colors, 8-bit |
|---|
| Signal interface | Dual-channel LVDS, 8-bit, 30-pin |
|---|
| Interface connector | HRS MDF76URW-30S-1H(55) |
|---|
| Nominal input voltage | 5.0 V typical |
|---|
| Active area | 337.920 × 270.336 mm |
|---|
| Module dimensions | 358.5 × 296.5 × 12.45 mm typical |
|---|
| Weight | 1590 g maximum |
|---|
| Surface treatment | Anti-glare, hard coating 3H |
|---|
| Operating temperature | -30°C to +85°C |
|---|
| Storage temperature | -30°C to +85°C |
|---|
| Compliance | RoHS compliant according to specification version 1.2 |
|---|
Display and Optical Characteristics
G170ETN02.1 provides a native 1280 × 1024 SXGA image in a 5:4
format. Its 800 cd/m² typical luminance is intended for industrial
installations with relatively bright ambient lighting. Outdoor
readability still depends on the enclosure, cover glass,
anti-reflection treatment, air gap and the direction of incident
light; brightness alone does not guarantee sunlight readability.
The specified typical contrast ratio is 700:1. Typical viewing
angles are 80° left, 80° right, 60° up and 70° down when measured
at a contrast ratio of at least 10. The anti-glare surface and 3H
hard coating help reduce reflections and provide surface protection
in industrial installations.
LVDS Interface and Integration
The module accepts an 8-bit dual-channel LVDS signal through a
30-pin interface connector. The nominal LCD logic supply is 5.0 V.
A controller or mainboard must be checked for the correct LVDS
channel configuration, bit mapping, timing, connector type,
pin assignment and power sequence before connection.
G170ETN02.1 should not be connected only because another panel has
the same size and resolution. A replacement assessment must also
compare the complete suffix, outline dimensions, mounting points,
active area, connector position, pin assignment, input voltage,
backlight circuit and power-on/off sequence.
Backlight and Operating Conditions
The specification lists a white LED backlight with an LED life of
50,000 hours under the stated test definition. The published
backlight values are reference electrical values without an LED
driver board, so the selected driver circuit must be matched to the
module specification.
The specified operating and non-operating storage temperature
ranges are both -30°C to +85°C. These limits describe the LCD
module rating and do not replace complete thermal validation of
the finished equipment. Prolonged operation at high temperature
may accelerate LED ageing and reduce luminance.
Typical Applications
- Industrial control panels and human-machine interfaces
- Outdoor kiosks with a properly engineered protective enclosure
- Factory automation and process-monitoring equipment
- Transportation, ticketing and information terminals
- Legacy 17-inch SXGA equipment replacement projects
Application suitability must be confirmed by the equipment
designer. Environmental sealing, optical bonding, touch integration,
EMC performance and long-term thermal behaviour are system-level
considerations and are not determined by the LCD module alone.
Selection and Replacement Checklist
- Confirm the full label reads G170ETN02.1.
- Confirm the native resolution is 1280 × 1024 SXGA.
- Verify the dual-channel, 8-bit LVDS signal mapping.
- Check the 30-pin connector type, position and pin assignment.
- Confirm the nominal 5.0 V LCD logic supply.
- Compare the 358.5 × 296.5 × 12.45 mm module dimensions.
- Check mounting points, active area and backlight connection.
- Validate the controller timing and power-on/off sequence.
- Confirm current availability and specification revision before ordering.
Specification source:
AUO G170ETN02.1 Final Product Specification, document version 1.2,
dated November 7, 2017. Specifications may be revised by the
manufacturer. The current datasheet and the label on the actual
module should take priority during engineering approval.
Frequently Asked Questions
What is the resolution of AUO G170ETN02.1?
AUO G170ETN02.1 has a native resolution of 1280 × 1024 pixels,
also known as SXGA, with a 5:4 aspect ratio.
How bright is the G170ETN02.1 LCD panel?
The AUO specification lists 800 cd/m² typical luminance and
640 cd/m² minimum luminance under the stated measurement conditions.
What interface does G170ETN02.1 use?
G170ETN02.1 uses an 8-bit dual-channel LVDS interface with a
30-pin connector. Connector position, pin assignment, voltage and
LVDS mapping must be checked before installation.
What is the operating temperature range?
The specified operating temperature range is -30°C to +85°C.
The non-operating storage range is also -30°C to +85°C.
Does G170ETN02.1 include a touch screen?
The AUO G170ETN02.1 LCD module specification does not specify an
integrated touch screen. A separate touch panel may be evaluated,
but its dimensions, interface, optical construction and enclosure
compatibility must be confirmed independently.
Is G170ETN02.1 sunlight readable?
It is a high-brightness 800 cd/m² industrial LCD, but outdoor or
sunlight readability cannot be determined from brightness alone.
Cover glass reflection, optical bonding, anti-reflection treatment,
enclosure design and installation conditions must also be evaluated.
Can another 17-inch 1280 × 1024 LCD directly replace it?
Not necessarily. A replacement must match the full model suffix,
mechanical dimensions, mounting points, LVDS mapping, connector,
pin assignment, voltage, backlight circuit and power sequence.
The same size and resolution do not prove electrical or mechanical
compatibility.
What information should be provided when requesting a quotation?
Provide the complete model number G170ETN02.1, required quantity,
destination country, application, target delivery date and clear
photographs of the existing product label when replacement
compatibility needs to be checked.
