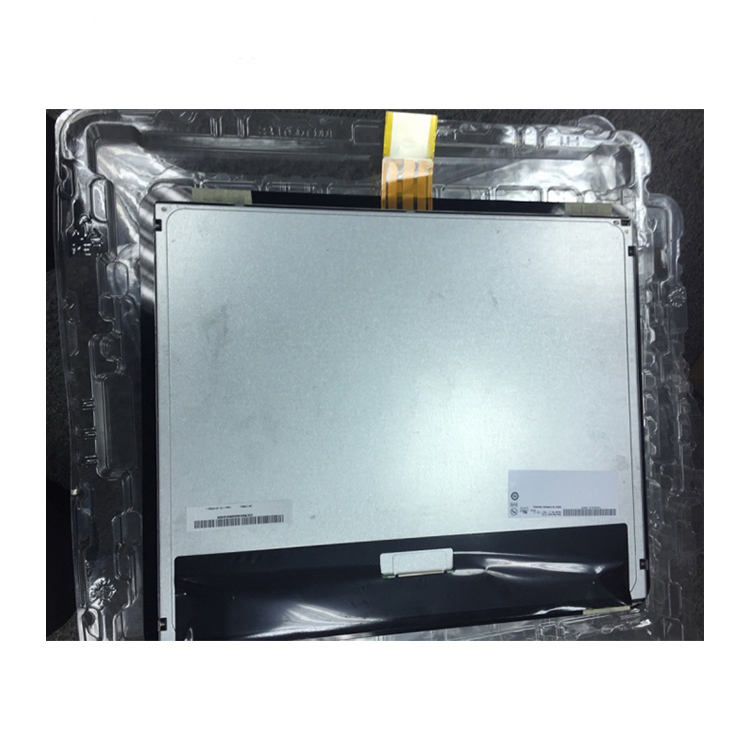

AUO G170ETT01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G170ETT01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 17.0inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | - -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²)
|
| Features : | With Touch，WLED Backlight，Upside I/F |
AUO G170ETT01.0 Optical Details
| Basic Information : | Luminance | 250cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 5 (Typ.)(Tr+Td) ms |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
AUO G170ETT01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*1024, SXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.088*0.264 mm (H*V) | Pixel Pitch(W*H) | 0.264*0.264 mm (H*V) [96PPI] |
| Physical Size : | Active Viewing(mm) | 337.92*270.336 mm (H*V) | Outline Dim.(mm) | 379.32*316.74 mm (H*V) |
| Bezel Area | - | Outline Depth | 10.85/14.05 (Typ./Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 5:4(H:V) | Orientation | Landscape type |
| Touch Screen : | Touch Points | Multi Touch | TP Signal | USB |
| TP Controller | With touch controller | Touchscreen | PCAP, Optical Bonding |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | - | Surface | Hard coating (7H) |
| Panel Cover | With Cover Lens | | |
AUO G170ETT01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 9.91W (Typ.) |
AUO G170ETT01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply |
0.6/0.72A (Typ./Max.) |
| Consumption | 3.0/3.6W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| P-TWO | AL230F-A0G1D-P | 1.0mm | 30 pins | 1pcs | LVDS-30P2C8B-160A |
AUO G170ETT01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 10S4P | Position | Edge light type (Top side) |
| Exchange | No | Lamp Shape | 4 strings | Lamp Life | 30K(Min.) Hours |
| Interface Features : | Position | Rear | Physical Type |
Connector |
| Lamp Electrical : | Voltage Supply | 28.8±3.6V | Current Supply | 60/66mA (Typ./Max.) |
| Consumption | 6.91/7.77W (Typ./Max.) |
| Interface Detail : | Brand | Model | Quantity
| Pins | Pitch | Pin Configuration |
| E&T | 3707K-S06N-21R | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC |
| Backlight Driver : | No |
-
