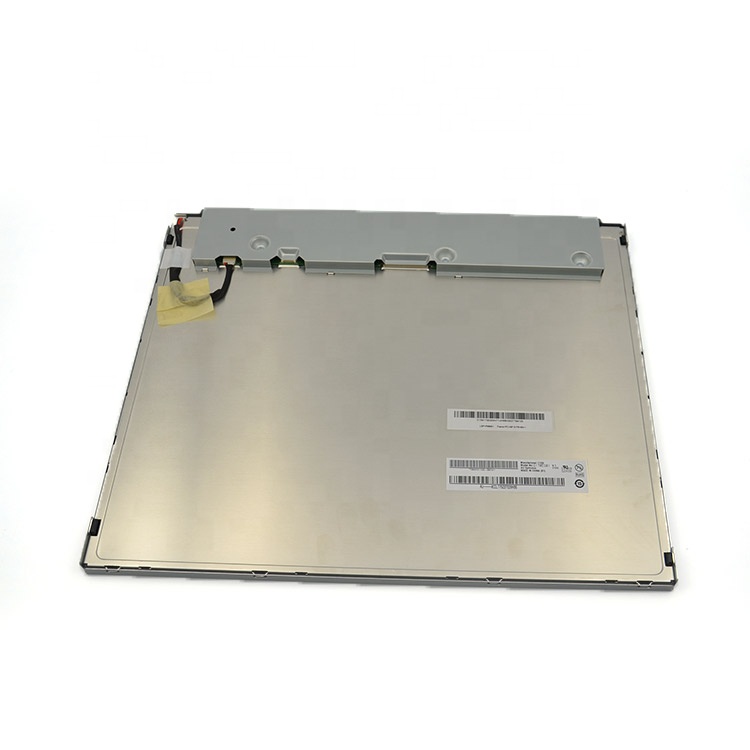

AUO G170HAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G170HAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | ||
| Panel Size | 17.0inch | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Srgb,Hight Brightness,WLED Backlight,Life>=50K hours,With LED Driver,Reverse I/F,Matte | |||
AUO G170HAN01.0 Optical Details
| Basic Information : | Luminance | 600 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(5points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 99% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G170HAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1920 | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.053*0.159 mm (H*V) | Pixel Pitch(W×H) | 0.159*0.159 mm (H*V) [159PPI] | |
| Physical Size : | Active Viewing(mm) | 305.28*305.28 mm (H*V) | Outline Dim.(mm) | 325.01*319.33 mm (H*V) |
| Bezel Area | - | Outline Depth | 5.8/12.2 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 1:1(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Rear mounting holes (6-M3); Side mounting holes (4-M3) on left, right slugs | |||
| Other Features : | Weight | 1.20Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G170HAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 8.94W (Typ.) |
AUO G170HAN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 1.36A (Typ.) | ||
| Consumption | 16.32/17.95W (Typ./Max.) | Signal Interface | eDP (4 Lanes), eDP1.3 | |||
| Interface Features : | Position | Rear | Type | Connector | ||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| JAE | HD1S040HA1 | 0.5mm | 40 pins | 1pcs | ||
AUO G170HAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 9S6P | Position | Edge light type |
| Exchange | No | Lamp Shape | 6strings | Lamp Life | 50K(Min.) Hours | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
AUO G170HAN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 10 pcs / box | 15 Kgs | 508*408*279 mm (L*W*H) |
Contact us to request the current datasheet and mechanical drawing for G170HAN01.0. Please include your application and required quantity so we can confirm the applicable revision.
