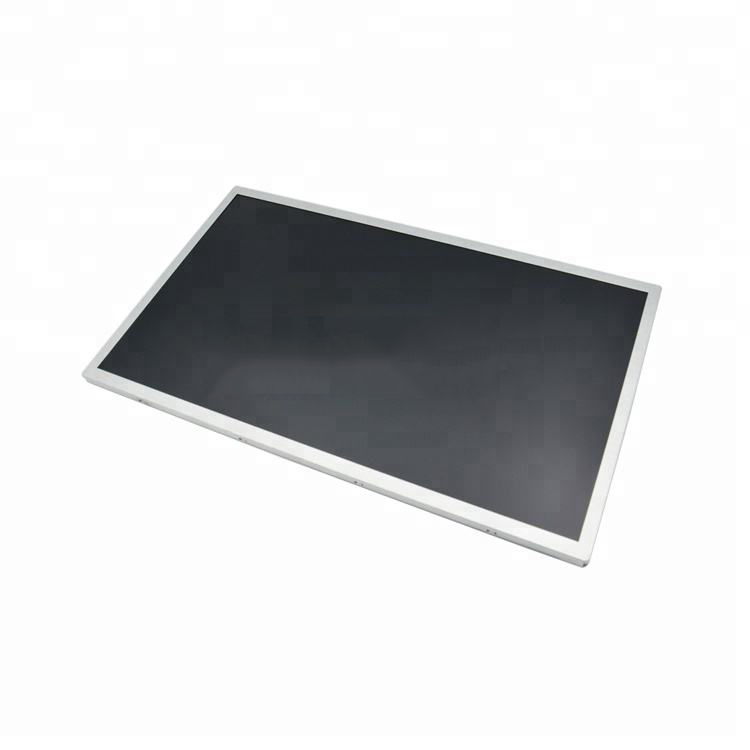

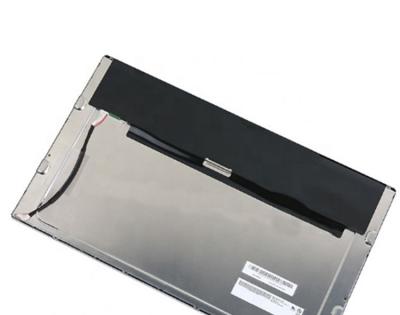

AUO G185HAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G185HAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 18.5inch | Designed For | Industrial，Medical Imaging |
| Maximum Ratings : | OP Temperature | -20~ 70 °C | ST Temperature | -20 ~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Srgb,WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F，Matte |
AUO G185HAN01.0 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 10/10 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.299; Wy:0.315 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7502K | White Variation | 1.18/1.25 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 99% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 76% coverage |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G185HAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080 [FHD] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.071*0.213 mm (H*V) | Pixel Pitch(W*H) | 0.213*0.213 mm (H*V) [119PPI] |
| Physical Size : | Active Viewing(mm) | 408.96*;230.04 mm (H*V) | Outline Dim.(mm) | 430.4*254.6 mm (H*V) |
| Bezel Area | 410.96*232.04 mm (H*V) | Outline Depth | 12.0±0.5 mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9(H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 1.20Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G185HAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 16.5W (Typ.) |
AUO G185HAN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.8/1.0A (Typ./Max.) |
| Consumption | 4.0/5.5W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| JAE | FI-XB30SSRLA-HF16 | 1.0mm | 30 pins | 1pcs | LVDS-30P2C8B-160A |
AUO G185HAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 9S7P
| Position | Edge light type |
| Exchange | Replaceable | Lamp Shape | 7 strings | Lamp Life | 50K(Min.) Hours |
| Interface Features : | Position | - | Physical Type |
Connector |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Current | 55mA (Typ.) | Input Voltage | 28.8/32.4V (Typ./Max.) |
| Consumption | 12.5W (Max.) |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | 3808K-F05N-12R | 1.25 mm | 5 pins | 1 pcs | |
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input
| 1.04A (Typ.)
|
| Consumption | 12.5/13.6W (Typ./Max.) |
AUO G185HAN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 8 pcs / box | 15.0Kgs | 520*280*355 mm (L*W*H) |
