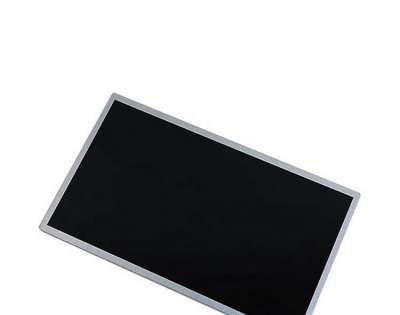

1、AUO G185HAN01.102 Application Details
Basic Info : | Panel Brand | AUO | Panel Model | G185HAN01.102 |
Diagonal Size | 18.5" | Application | Industrial，Medical Imaging |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
Reliability : | Operating Temp. | -30 ~ 80 °C
| Storage Temp. | -30 ~ 80 °C |
RoHS State | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
Specific Features : | Wide Temperature，WLED Backlight，Life≥50k hours，With LED Driver，Upside I/F,Matte |
2、 AUO G185HAN01.102 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.071×0.213 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.213×0.213 mm [119PPI] (H×V) |
Mechanical Size : | Display Area (mm) | 408.96(W)×230.04(H) mm | Bezel Opening | 412.56×233.64 mm (H×V) |
Overall Dim. | 430.4(W)×254.6(H) mm | Overall Depth | 12.0±0.5 mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style |
|
Fixation : | Side mounting holes (4-M3) on left, right bezel |
Other Detail : | Mass | 1.75Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
3、AUO G185HAN01.102 Optical Details
Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 10/10 (Typ.)(Tr/Td) ms |
Color Performance : | Chromaticity | Wx:0.299; Wy:0.315 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 7502K | Uniformity | 1.18/1.25 (Typ./Max.)(9 points)
|
4、AUO G185HAN01.102 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No
|
Total Consumption : | 28.15W (Max.) |
5、AUO G185HAN01.102 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) (Hours) |
Replacement | No
| Lamp Shape | - | Position | Edge light type |
Interface Features : | Type | Connector | Position | - | Backlight Driver : | With LED Driver |
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
STM | MSB24038P5D | 1.25 mm
| 5 pins | 1 pcs |
|
Driver Electrical : | Input Voltage | 12±1.2V | Input Current | 1.56/1.9A (Typ./Max.)
|
Consumption | 18.72/22.8W (Typ./Max.)
|
|
|
|
|
|
|
|
|
|
|
6、AUO G185HAN01.102 Interface Detail
Signal Electrical : | Input Current | 0.8/1.07A (Typ./Max.)
| Input Voltage
| 5.0V (Typ.) |
|
Consumption | 4.0/5.5W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) |
Interface Features : | Position | Upper middle of panel |
| Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
JAE | FI-XB30SSRLA-HF16
|
1.0 mm |
30 pins | 1 pcs | LVDS-30P2C8B-160A |
7、AUO G185HAN01.102 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
8 | 520×280×352 | 17.00 |
-
