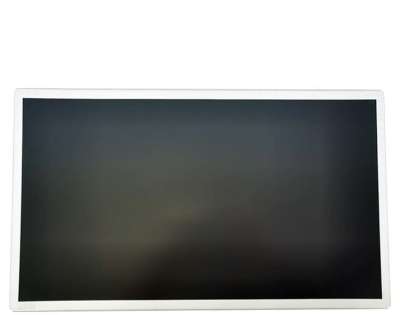

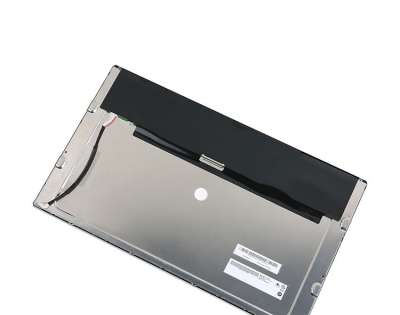

1、AUO G185HAN01.004 Application Details
Basic Info : | Panel Brand | AUO | Panel Model | G185HAN01.004 |
Diagonal Size | 18.5" | Application | Industrial,Imaging | |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
Reliability : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -30 ~ 80 °C |
RoHS State | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Specific Features : | Wide Temperature,WLED Backlight,Life≥50k hours,With LED Driver,Upside I/F,Matte | |||
2、 AUO G185HAN01.004 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.071×0.213 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.213×0.213 mm [119PPI] (H×V) | |
Mechanical Size : | Display Area (mm) | 408.96(W)×230.04(H) mm | Bezel Opening | 410.96(W)×232.04(H) mm |
Overall Dim. | 430.4(W)×254.6(H) mm | Overall Depth | 12.0±0.5 mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | ||
Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Mass | 1.75Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
3、AUO G185HAN01.004 Optical Details
Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 10/10 (Typ.)(Tr/Td) ms | |
Color Performance : | Chromaticity | Wx:0.299; Wy:0.315 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 7502K | Uniformity | 1.18/1.25 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 97% coverage |
Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、AUO G185HAN01.004 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 20.95W (Max.) |
5、AUO G185HAN01.004 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) (Hours) | |||
Replacement | No | Lamp Shape | - | Position | Edge light type | ||||
Interface Features : | Type | Connector | Position | - | Backlight Driver : | With LED Driver | |||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | |||
STM | MSB24038P5D | 1.25 mm | 5 pins | 1 pcs | |||||
Driver Electrical : | Input Voltage | 10.8/12.0/13.2V (Min./Typ./Max.) | Input Current | 1.07/1.3A (Typ./Max.) | |||||
Consumption | 12.84/15.6W (Typ./Max.) | ||||||||
6、AUO G185HAN01.004 Interface Detail
Signal Electrical : | Input Current | 0.89/1.07A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
Consumption | 4.45/5.35W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
Interface Features : | Position | Upper middle of panel | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
JAE | FI-XB30SSRLA-HF16 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | |
7、AUO G185HAN01.004 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
8 | 520×280×352 | 17.00 |
Contact us to request the current datasheet and mechanical drawing for G185HAN01.004. Please include your application and required quantity so we can confirm the applicable revision.
