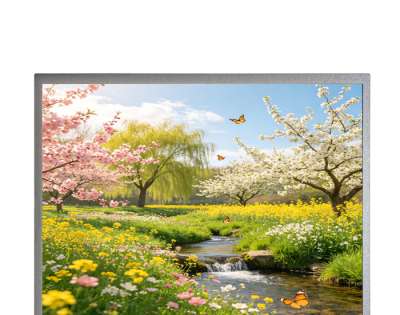

AUO G185HAT01.1 18.5 Inch 1920×1080 AHVA LCD

AUO G185HAT01.1 18.5-Inch FHD AHVA LCD

The AUO G185HAT01.1 is an 18.5-inch industrial    TFT-LCD module based on AHVA normally-black display technology. According    to the applicable Final Specification Ver. 1.0 dated June 19, 2023, the    module provides a native resolution of 1920 × 1080 pixels,    typical luminance of 300 cd/m² and a typical contrast    ratio of 1000:1.

The module uses a dual-channel LVDS interface, supports    true 8-bit color and operates from -30°C to +80°C. Its    AHVA display mode and wide viewing characteristics make it suitable for    evaluation in industrial equipment, control systems and embedded display    applications. Final suitability must be verified against the complete    electrical, mechanical and environmental requirements of the equipment.

G185HAT01.1 should not be confused with 18.5-inch AUO models using    1366 × 768 resolution or 500 cd/m² brightness. The specifications below    apply specifically to G185HAT01.1 and should be confirmed    against the product label and applicable specification revision before    ordering.

G185HAT01.1 Technical Specifications

Typical and maximum values are measured under the conditions defined in    the applicable specification. Confirm the specification revision and    electrical interface before final design approval.

Selection and Compatibility Notes

When selecting G185HAT01.1 for a new design or replacement project, compare    more than the screen size and resolution. The equipment design should also    be checked for module outline dimensions, mounting points, connector    position, LVDS pin assignment, input voltage, power requirements and    environmental conditions.

G185HAT01.1 is a Full HD panel and should not be treated as a direct    replacement for an 18.5-inch 1366 × 768 panel. The graphics controller,    LVDS timing, cable and enclosure must support the module's 1920 × 1080    format and mechanical structure.

The specified typical brightness is 300 cd/m². This page does not describe    G185HAT01.1 as a 500 cd/m² or sunlight-readable panel. Applications exposed    to strong ambient light should be evaluated at the complete system level,    including cover glass, optical bonding, reflections and enclosure design.

Quotation and Datasheet Request

To request a quotation, current availability, mechanical drawing or    applicable datasheet, provide the complete model    G185HAT01.1, required quantity, destination country and    application. For replacement projects, a clear photo of the original LCD    label and connector is recommended.

MOQ, availability, lead time and supplied configuration must be confirmed    at the time of inquiry. They are not fixed technical specifications of the    LCD module.

Frequently Asked Questions

What is the native resolution of G185HAT01.1?

The native resolution is 1920 × 1080 pixels, also known as Full HD. It is    not a 1366 × 768 panel.

What is the brightness of G185HAT01.1?

The Final Specification Ver. 1.0 states a typical center luminance of    300 cd/m². A 500 cd/m² value should not be assigned to this exact model    without documentation for a different confirmed version.

Is G185HAT01.1 a sunlight-readable LCD?

The specification states 300 cd/m² typical brightness and does not by    itself establish sunlight readability. Outdoor or high-ambient-light    suitability must be evaluated using the complete display assembly and    optical design.

What interface does G185HAT01.1 use?

It uses a dual-channel LVDS interface with true 8-bit color support.    Connector position, pin assignment and cable compatibility must be checked    before installation.

What is the operating temperature range?

The specified operating temperature range is -30°C to +80°C. The same    range is stated for non-operating storage.

Can G185HAT01.1 replace an 18.5-inch 1366 × 768 LCD?

It should not be assumed to be a direct replacement. G185HAT01.1 uses    1920 × 1080 resolution, and compatibility also depends on LVDS timing,    connector pin assignment, voltage, mounting dimensions and enclosure    design.

Does the LCD automatically include a touch panel?

The supplied assembly should be confirmed when requesting a quotation.    Do not assume that a touch panel, controller, cable or cover glass is    included unless it is identified in the confirmed order configuration.

What information is needed for a compatibility check?

Provide the complete model number, product-label photo, connector photo,    current LCD datasheet, required quantity and equipment application.    Mechanical dimensions, pin assignment, supply voltage and display timing    should all be compared before replacement.

Frequently Asked Questions About AUO G185HAT01.1

What is the AUO G185HAT01.1?

The AUO G185HAT01.1 is an 18.5-inch AHVA TFT-LCD module with    1920 × 1080 Full HD resolution, 300 cd/m² typical brightness, a    1000:1 typical contrast ratio and a dual-channel LVDS interface.

What is the native resolution of G185HAT01.1?

The native resolution is 1920 × 1080 pixels, also known    as Full HD. G185HAT01.1 is not a 1366 × 768 LCD panel.

What is the brightness of AUO G185HAT01.1?

The applicable Final Specification Ver. 1.0 states a typical center    luminance of 300 cd/m². A 500 cd/m² value should not be    applied to this exact model without documentation for another confirmed    version.

Is G185HAT01.1 a sunlight-readable LCD?

G185HAT01.1 has a specified typical brightness of 300 cd/m² and should    not automatically be described as sunlight readable. Outdoor visibility    depends on the complete system, including ambient light, cover glass,    reflections, optical bonding and enclosure design.

What interface does G185HAT01.1 use?

It uses a dual-channel LVDS interface with true 8-bit    color support. Connector position, pin assignment, cable design and input    voltage must be verified before installation.

What is the operating temperature range of G185HAT01.1?

The specified operating temperature range is    -30°C to +80°C. The non-operating storage temperature    range is also -30°C to +80°C.

What are the dimensions of G185HAT01.1?

The typical module dimensions are    450.36 × 271.44 × 15.2 mm. The active display area is    408.96 × 230.04 mm. Mechanical drawings should be checked before enclosure    design or replacement.

Can G185HAT01.1 replace an 18.5-inch 1366 × 768 LCD?

It should not be assumed to be a direct replacement. G185HAT01.1 uses    1920 × 1080 resolution, and compatibility also depends on LVDS timing,    pin assignment, supply voltage, connector location, mounting points and    module dimensions.

Does G185HAT01.1 include a touch panel?

The supplied configuration must be confirmed with the quotation. Do not    assume that a touch panel, touch controller, cable or cover glass is    included unless it is clearly identified in the confirmed order.

Is G185HAT01.1 currently available?

Availability, MOQ and lead time must be confirmed at the time of inquiry.    Provide the complete model number G185HAT01.1, required quantity,    destination country and application when requesting a quotation.

What information is required for a G185HAT01.1 compatibility check?

Please provide a clear photo of the original product label and connector,    the current LCD datasheet, required quantity and equipment application.    Resolution, LVDS pin assignment, voltage, timing, dimensions and mounting    positions should all be compared before replacement.
