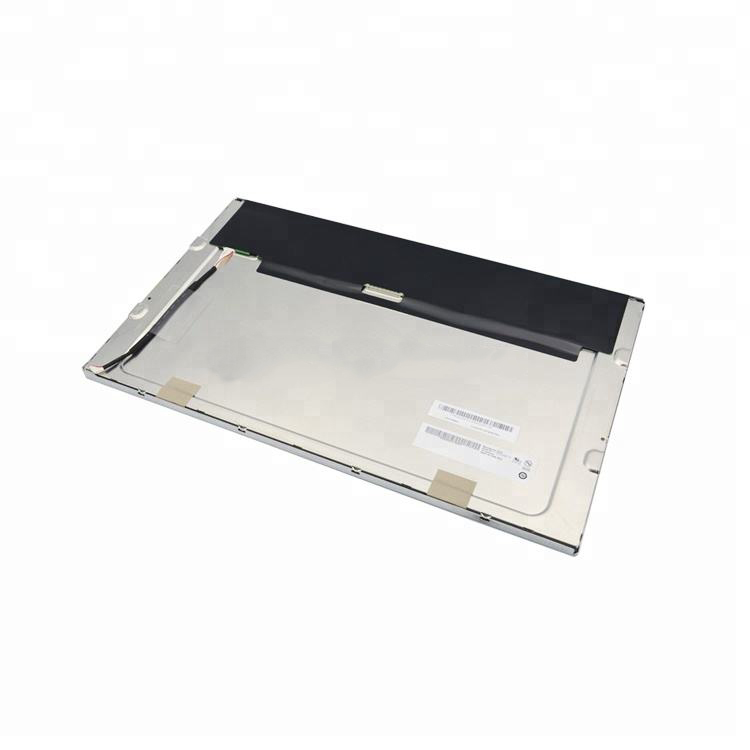

G185XTN01.1 18.5" TFT LCD Panel | AUO Original 1366x768 eDP Display Module

Model:G185XTN01.1
Brand:AUO
Size:18.5inch
Resolution:1366×768
Brightness:450 cd/m²
Perspective:85/85/80/80
Interface:eDP
Operating Temp.:0 ~ 60 °C
Production State:In Production

Click For Price

Technical Parameters

AUO G185XTN01.1 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G185XTN01.1
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	18.5inch	Designed For	Industrial
Maximum Ratings :	OP Temperature	0 ~ 60 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F，Matte

AUO G185XTN01.1 Optical Details

Basic Information :	Luminance	450cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	8 (Typ.)(Tr+Td) ms
	Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.43/1.54 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	71%	sRGB	94% coverage
	Adobe RGB	73% coverage	DCI-P3	74% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G185XTN01.1 Mechanical Details

Pixel Features :	Number of Pixel	1366(RGB)*768, WXGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W*H)	0.1000.300 mm (HV)	Pixel Pitch(W*H)	0.3000.300 mm (HV) [84PPI]
Physical Size :	Active Viewing(mm)	409.8230.4 mm (HV)	Outline Dim.(mm)	430.4254.7 mm (H)
Physical Size :	Bezel Area	413.4234.0 mm (HV)	Outline Depth	10.6±0.5 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:9(H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.44Kgs (Max.)	Surface	Antiglare, Hard coating (3H)

AUO G185XTN01.1 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Power Consumption :	8.88W (Typ.)

AUO G185XTN01.1 Interface Detail

Signal Electrical :	Voltage Supply	5.0V (Typ.)		Current Supply	0.45/0.54A (Typ./Max.)
Signal Electrical :	Consumption	2.25/2.7W (Typ./Max.)		Signal Interface	eDP (1 Lane), eDP1.2
Interface Features :	Position	Rear		Type	Connector
Interface Detail :	Brand	Model	Pitch	Pins	Quantity	Pin Configuration
Interface Detail :	I-PEX	20455-030E-12	0.5mm	30 pins	1pcs	EDP-30P1L-030A

AUO G185XTN01.1 Backlight Details

Lamp Features :	Lamp Type	WLED			Quantity		-	Position		Edge light type
	Exchange	Replaceable			Lamp Shape		-	Lamp Life		50K(Min.) Hours
Interface Features :	Position	-			Physical Type		Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Input Current			0.53/0.64A (Typ./Max.)		Input Voltage			12.0±1.2V
	Consumption		6.63/7.68W (Typ./Max.)

AUO G185XTN01.1 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	8 pcs / box	15.0Kgs	520280355 mm (LWH)
