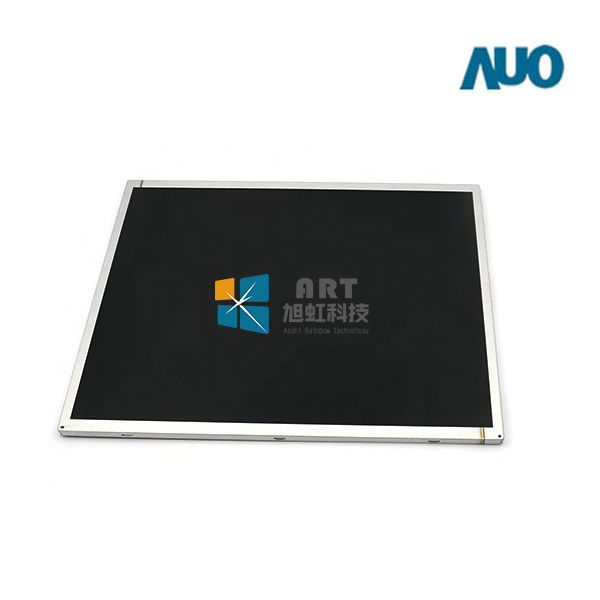

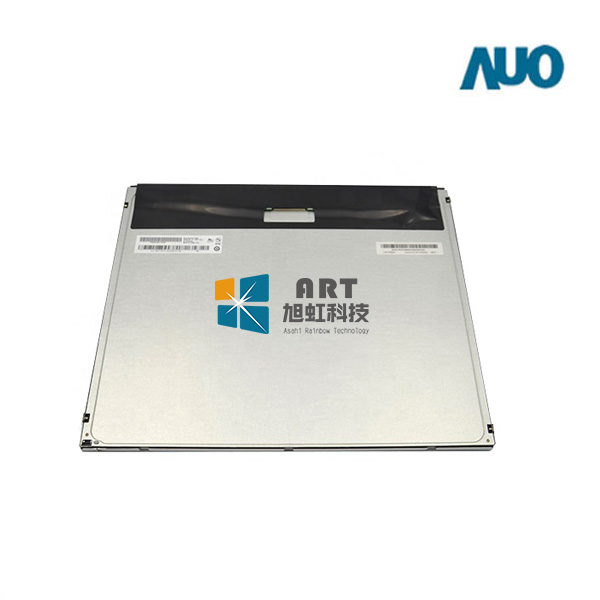

AUO M185XTN01.2 18.5" TFT LCD | 1366x768 Wide View Industrial Display Panel

Model:M185XTN01.2
Brand:AUO
Size:18.5inch
Resolution:1366×768
Brightness:250 cd/m² (Typ.)
Perspective:85/85/80/80 (Typ.)
Interface:LVDS
Operating Temp.:0 ~ 50 °C
Production State:Discontinued

Click For Price

Technical Parameters

AUO M185XTN01.2 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	M185XTN01.2
	Panel Type	a-Si TFT-LCD , LCM	Another Name	M185XTN01 V2
	Panel Size	18.5	Designed For	Desktop Monitor
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	WLED Backlight， Matte,Upside I/F

AUO M185XTN01.2 Optical Details

Basic Information :	Luminance	250cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	3.6/1.4 (Typ.)(Tr/Td) ms
	Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	73%	sRGB	97% coverage
	Adobe RGB	75% coverage	DCI-P3	76% coverage
	Rec.2020	55% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO M185XTN01.2 Mechanical Details

Pixel Features :	Number of Pixel	1366(RGB)*768, WXGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W*H)	0.100*0.300 mm	Pixel Pitch(mm)	0.300*0.300 mm [84PPI]
Physical Size :	Active Viewing(mm)	409.8(W)*230.4(H) mm	Outline Dim.(mm)	430.4(W)*254.6(H) mm
Physical Size :	Bezel Area (mm)	413.4(W)*234.0(H) mm	Outline Depth	7.8/10.3 (Typ./Max.) mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Normal bezel
Outline Features :	Aspect Ratio	16:9(H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.29Kgs (Typ.)	Surface	Antiglare, Hard coating (3H)

AUO M185XTN01.2 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Total Consumption:	7.85W (Typ.)

AUO M185XTN01.2 Interface Detail

Signal Electrical :	Voltage Supply		5.0V (Typ.)			Current Supply	0.35/0.42A (Typ./Max.)
	Consumption		1.75/2.1W (Typ./Max.)			Signal Interface	LVDS (1 ch, 8-bit)
Interface Features :	Position		Rear			Type	Connector
Interface Detail :	Brand	Model		Pitch	Pins			Quantity	Pin Configuration
	STM	MSCKT2407P30HB		1.0mm	30 pins			1 pcs	LVDS-30P1C8B-170A

AUO M185XTN01.2 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

7S4P

Position

Edge light type (Right side)

Exchange

Lamp Shape

4strings

Lamp Life

30K(Min.) Hours

Lamp Electrical :

Input Voltage

21.7±2.1V

Input Current

70/77mA (Typ./Max.)

Consumption

6.1/6.7W (Typ./Max.)

Interface Features :

Position

Rear

Physical Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

E&T

3707K-S06N-21R

1.0mm

6 pins

1 pcs

BLE-6PINS-CCAACC

Backlight Driver :

AUO M185XTN01.2 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	14pcs / box	20.745 Kgs	485372348 mm (LWH)

Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for M185XTN01.2. Please include your application and required quantity so we can confirm the applicable revision.

Request M185XTN01.2 Datasheet
