AUO G190ETN01.002 19 Inch SXGA LCD Display – Wide Color Gamut Industrial Panel
Product Overview

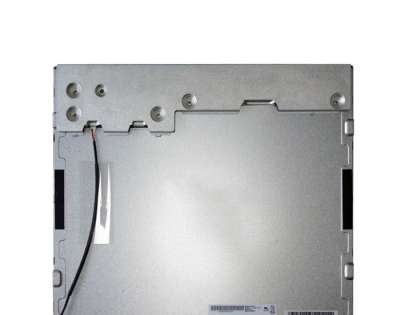

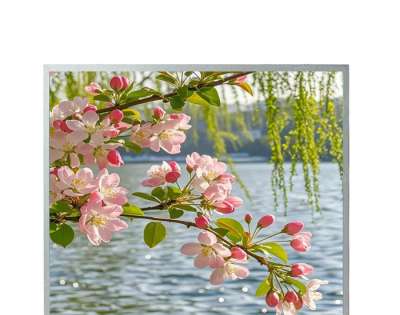

The AUO G190ETN01.002 is a 19.0-inch industrial-grade TFT-LCD display module manufactured by AU Optronics (AUO). This panel delivers SXGA resolution (1280×1024) in a classic 5:4 aspect ratio, making it an excellent choice for industrial control systems, medical equipment, gaming machines, and embedded applications requiring reliable performance and exceptional color accuracy.
Key differentiator: With an impressive 89% NTSC color gamut (100% sRGB coverage), the G190ETN01.002 delivers vibrant, accurate colors that far exceed standard industrial displays (typically 50-72% NTSC). Combined with 350 cd/m² brightness, 1000:1 contrast ratio, and 1.5G vibration resistance, this panel is engineered for demanding visual applications.
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G190ETN01.002 |
Alias | G190ETN01.0, G190ETN01.001 |
Screen Size | 19.0 inch |
Resolution | SXGA 1280 × 1024 |
Pixel Density | 86 PPI |
Aspect Ratio | 5:4 |
Display Technology | a-Si TFT-LCD, TN, Normally White, Transmissive |
Brightness | 350 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 85°/85°/80°/80° (Typ.)(CR≥10) |
Response Time | 3.6/1.4 ms (Typ.)(Tr/Td) |
Display Colors | 3.6/1.4 ms (Typ.)(Tr/Td) |
Color Gamut | 89% NTSC (CIE1931) , 100% sRGB |
Color Temperature | 6485K |
Interface | LVDS (2 ch, 8-bit), 30 pins |
Connector Type | JAE FI-XB30SSRLA-HF15 (1.0mm pitch) |
Backlight Type | WLED, Edge light type (Bottom side) |
Backlight Life | 30,000 hours (Typ.) |
LED Driver | Not included (external driver required) |
Touch Panel | No (custom touch upgrades available upon request) |
Operating Temperature | 0°C ~ 50°C |
Storage Temperature | -20°C ~ 60°C |
Active Area | 376.32 × 301.056 mm |
Outline Dimension | 396 × 324 × 11.7 mm |
Surface Treatment | Anti-Glare (Matte), Hard coating (3H) |
Weight | 1.80Kgs (Typ.) |
Vibration Resistance | 1.5G (14.7 m/s²) |
Refresh Rate | 60Hz |
Power Consumption | 13.9W (Typ.) |
RoHS | Compliant |
Production Status | In Production |
Key Advantages
1. Wide Color Gamut – 89% NTSC / 100% sRGB
The G190ETN01.002 delivers exceptional color performance with 89% NTSC coverage (CIE1931) and 100% sRGB coverage. Key benefits include:
Vibrant, accurate colors for medical imaging and diagnostic displays
Superior color reproduction for gaming machines and entertainment applications
Better than standard industrial panels (typically 50-72% NTSC)
16.7M colors (6-bit + Hi-FRC) for smooth color gradations
6485K color temperature for neutral white balance
2. 5:4 Classic Industrial Aspect Ratio
The 5:4 aspect ratio (1280×1024 SXGA resolution) is the long-standing standard for:
Industrial control systems and HMI panels — perfect fit for legacy applications
Medical equipment displays — diagnostic monitors and patient monitoring
Gaming machines and slot displays — standard format for casino equipment
Factory automation terminals — no awkward scaling or cropping
3. Excellent Image Quality (1000:1 Contrast Ratio)
The combination of 1000:1 contrast ratio and 350 cd/m² brightness ensures:
Deep blacks and vivid colors for professional applications
Clear visibility in factory environments with standard lighting
Fast response time (3.6/1.4 ms Tr/Td) for smooth motion display
4. LVDS Interface for Industrial Compatibility
The dual-channel LVDS (2 ch, 8-bit) interface with 30-pin JAE connector offers:
Stable signal transmission over longer distances
Wide compatibility with industrial controllers, embedded PCs, and SoCs
5.0V logic voltage — standard industrial levels
Proven reliability in industrial environments
5. Industrial-Grade Durability
30,000-hour WLED backlight life — suitable for continuous operation
1.5G vibration resistance (14.7 m/s²) — for transportation and heavy equipment
Anti-glare matte surface with 3H hard coating — reduces reflections, provides scratch resistance
RoHS compliant — meets global environmental standards
In Production status — stable supply for ongoing production needs
6. Standard 5:4 Form Factor for Easy Integration
376.32 × 301.056 mm active area — standard 19-inch SXGA size
396 × 324 × 11.7 mm outline — fits standard industrial enclosures
Side mounting holes (4-M3) on left and right bezel — secure installation
Landscape orientation — designed for landscape mode operation
Applications
The AUO G190ETN01.002 is designed for a wide range of industrial, medical, and commercial applications requiring excellent color accuracy and reliability:
Application Area | Specific Use Cases |
Industrial HMI | Factory automation panels, machine control interfaces, PLC terminals |
Medical Equipment | Diagnostic displays, patient monitoring systems, medical imaging |
Gaming & Amusement | Gaming machines, slot displays, casino terminals |
Industrial PCs | Embedded computers, rack-mounted industrial displays |
Security & Surveillance | Monitoring stations, control room displays |
Process Control | SCADA systems, power plant monitoring |
Test & Measurement | Oscilloscopes, spectrum analyzers, lab equipment |
Digital Signage | Indoor information displays, public information kiosks |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Touch panel upgrades, custom cables, optical bonding
Order Information
Item | Details |
Model | AUO G190ETN01.002 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Production Status | In Production |
Comparison reference with models of the same series/size:
Comparison item | G190ETN01.002 | G190EAN01.2 (Highlighted Version) | G190EG02 V1 |
Resolution | SXGA (1280×1024) | SXGA (1280×1024) | SXGA (1280×1024) |
Aspect ratio | 5:4 | 5:4 | 5:4 |
Brightness | 350 cd/m² | 1300 cd/m² | 300 cd/m² |
Contrast | 1000:1 | 1000:1 | 2000:1 |
Color gamut | 92% NTSC | 72% NTSC | 70% NTSC |
Color temperature | 6485K | 10776K | - |
Backlight lifespan | 30000 hours | 50000 hours | 50000 hours |
LED driver | No (external required) | Including LED driver | Including LED driver |
Operating Temperature | 0~50°C | 0~50°C | 0~60°C |
Response time | 3.6/1.4 ms | 13/12 ms | 15/5 ms |
Main applications | Indoor color key | Outdoor high brightness | Industrial General |
