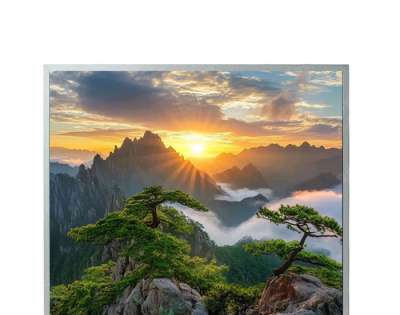

AUO G190ETT01.1 19 Inch SXGA LCD Display with PCAP Touch – Wide Temperature Industrial Panel
Product Overview
The AUO G190ETT01.1 is a 19.0-inch industrial-grade TFT-LCD display module manufactured by AU Optronics (AUO). This panel delivers SXGA resolution (1280×1024) in a classic 5:4 aspect ratio, making it an excellent choice for industrial control systems, outdoor kiosks, medical equipment, and gaming machines requiring reliable touch functionality and environmental durability.
Key differentiator: This model comes factory-equipped with a projected capacitive (PCAP) touch panel—offering a complete plug-and-play touch solution for interactive applications. With 300 cd/m² brightness, 1000:1 contrast ratio, an ultra-wide operating temperature range of -30°C to 85°C, and 50,000-hour WLED backlight life, the G190ETT01.1 delivers exceptional performance in demanding environments.
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G190ETT01.1 |
Screen Size | 19.0 inch |
Resolution | SXGA 1280 × 1024 |
Pixel Density | 86 PPI |
Aspect Ratio | 5:4 |
Display Technology | a-Si TFT-LCD, TN, Normally White, Transmissive |
Brightness | 300 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 85°/85°/80°/80° (Full Symmetry) |
Response Time | 7/3 ms (Typ.)(Tr/Td) |
Display Colors | 16.7M (6-bit + Hi-FRC) |
Color Gamut | 72% NTSC (CIE1931) |
Color Temperature | 6485K |
Interface | LVDS (2 ch, 8-bit), 30 pins |
Backlight Type | WLED, Edge light type (Bottom side) |
Backlight Life | 50,000 hours (Min.) |
LED Driver | Built-in |
Touch Panel | Projected Capacitive (PCAP), Gasket bonding |
Touch Controller | Not included (external controller required) |
Operating Temperature | -30°C ~ 85°C |
Storage Temperature | -30°C ~ 85°C |
Active Area | 376.32 × 301.056 mm |
Outline Dimension | Contact us for detailed drawing |
Surface Treatment | Anti-Glare (Matte) |
Weight | Contact us for detailed spec |
Refresh Rate | 60Hz |
Vibration Resistance | 1.5G (14.7 m/s²) |
RoHS | Compliant |
Production Status | Discontinued |
Key Advantages
1. Factory-Integrated PCAP Touch Panel
The G190ETT01.1 comes factory-equipped with a projected capacitive (PCAP) touch panel using gasket bonding. Key benefits include:
Complete plug-and-play touch solution — no separate touch module sourcing or lamination required
Multi-touch support — supports gesture-based interactions (pinch, zoom, swipe)
Excellent sensitivity — responsive to light touch, even through protective glass
Durable construction — gasket bonding provides secure attachment and dust protection
Ideal for interactive applications — kiosks, HMI, gaming machines
2. Ultra-Wide Operating Temperature (-30°C to 85°C)
With an industry-leading operating temperature range of -30°C to 85°C, this panel is specifically designed for harsh environment applications:
-30°C cold start validated for freezing conditions — cold storage, polar applications, winter outdoor kiosks
85°C high-temperature operation — steel mills, desert installations, engine compartments
Same range for storage — robust logistics and inventory handling
Ideal for outdoor applications — year-round performance in any climate
3. 5:4 Classic Industrial Aspect Ratio
The 5:4 aspect ratio (1280×1024 SXGA resolution) is the long-standing standard for:
Industrial control systems and HMI panels — perfect fit for legacy and new applications
Medical equipment displays — diagnostic monitors and patient monitoring
Gaming machines and slot displays — standard format for casino equipment
Factory automation terminals — no awkward scaling or cropping
4. Excellent Image Quality (1000:1 Contrast Ratio)
The combination of 1000:1 contrast ratio and 300 cd/m² brightness ensures:
Deep blacks and vivid colors for professional applications
Clear visibility in factory environments with standard lighting
Fast response time (7/3 ms Tr/Td) for smooth motion display
5. LVDS Interface for Industrial Compatibility
The dual-channel LVDS (2 ch, 8-bit) interface with 30-pin connector offers:
Stable signal transmission over longer distances
Wide compatibility with industrial controllers, embedded PCs, and SoCs
5.0V logic voltage — standard industrial levels
Proven reliability in industrial environments
6. Long-Life Backlight with Built-in LED Driver
The panel comes with a built-in LED driver and 50,000-hour WLED backlight life:
50,000-hour lifespan — significantly reduces maintenance costs in continuous operation
Built-in LED driver — simplifies system integration, saves BOM cost and PCB space
No external driver design required — plug-and-play backlight solution
Ideal for 24/7 operation — reliable performance for always-on applications
7. Industrial-Grade Durability
1.5G vibration resistance (14.7 m/s²) — suitable for transportation and heavy equipment
RoHS compliant — meets global environmental standards
In Production status — stable supply for ongoing production needs
Anti-glare matte surface — reduces reflections in bright environments
Applications
The AUO G190ETT01.1 is designed for demanding industrial, medical, and commercial applications requiring reliable touch functionality and environmental durability:
Application Area | Specific Use Cases |
Industrial HMI | Factory automation panels, machine control interfaces, PLC terminals |
Outdoor Kiosks | Ticketing machines, information kiosks, EV charging station displays |
Medical Equipment | Diagnostic displays, patient monitoring systems, medical imaging |
Gaming & Amusement | Gaming machines, slot displays, casino terminals, arcade games |
Transportation | Bus information displays, train passenger terminals, marine navigation |
Security & Surveillance | Monitoring stations, control room displays with touch interaction |
Digital Signage | Interactive information displays, public information kiosks |
Process Control | SCADA systems, power plant monitoring with touch interface |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Functional projected capacitive touch panel
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Custom cables, optical bonding, cover glass integration
Order Information
Item | Details |
Model | AUO G190ETT01.1 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Production Status | In Production |
Comparison reference between AUO G190ETT01.1 and models of the same series/size:
Comparison item | G190ETT01.1 | G190ETN01.002 | G190EAN010 | Advantage Description |
Resolution | SXGA (1280×1024) | SXGA (1280×1024) | SXGA (1280×1024) |
|
Touch function | PCAP touch (standard) | No touch | No touch | Core differentiation, buy and use now |
Operating Temperature | -30°C ~ 85°C | 0°C ~ 50°C | 0°C ~ 50°C | Ultra wide temperature range, suitable for outdoor/extreme environments |
Storage temperature | -30°C ~ 85°C | -20°C ~ 60°C | -20°C ~ 60°C | A wider temperature adaptation range |
Backlight life | 50000 hours | 30000 hours | 50000 hours | Long lifespan, suitable for long-term operation |
LED driver | Built-in | No | No | Simplify design and save space |
Brightness | 300 cd/m² | 350 cd/m² | 350 cd/m² | Standard industrial brightness |
Response time | 7/3 ms | 3.6/1.4 ms | 3.6/1.4 ms | Slightly slower, but meets most HMI requirements |
Main applications | Outdoor/Interactive Touch | Indoor color key | Indoor industry | Touch+Wide Temperature Scene |
Ready to order or need more information?
Contact us today for a quote or technical consultation.
