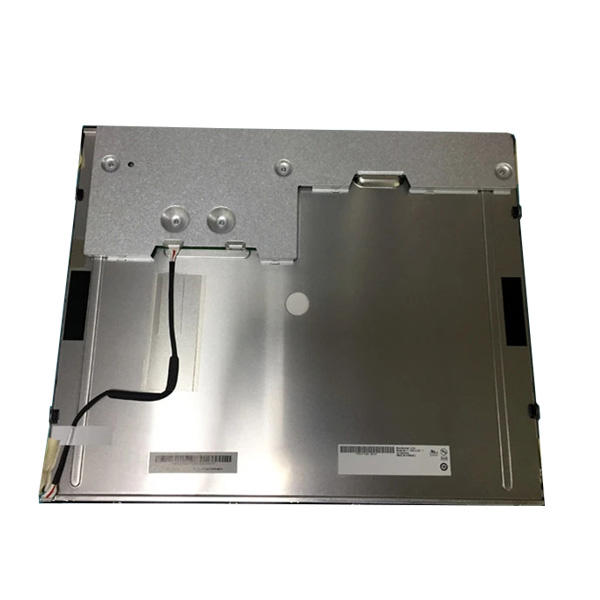

AUO G190EAN01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G190EAN01.1 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 19inch | Designed For | Industrial,Medical Imaging,Outdoor High Brightness |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | - 20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Ultra High Brightness,WLED Backlight,Life>=50K hours,With LED Driver, Upside I/F,Matte |
AUO G190EAN01.1 Optical Details
| Basic Information : | Luminance | 1300(cd/m²) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.294; Wy:0.309 | Support Color | Grayscale (8-bit) |
| Color Temperature | 7984K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO G190EAN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*1024 [SXGA] | Arrangement | LCR Vertical Stripe |
| Dot Pitch(W*H) | 0.098*0.294 mm | Pixel Pitch(W*H) | 0.294*0.294 mm [86PPI] |
| Physical Size : | Active Viewing(mm) | 376.32(W)*301.056(H) mm | Outline Dim.(mm) | 396*324 mm (H×V) |
| Bezel Area | 380.32(W)*305.06(H) mm | Outline Depth | 9.0/17.5 (Typ./Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 5:4(H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 1.55Kgs (Typ.) | Surface | Antiglare |
AUO G190EAN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 18.62W (Typ.) |
AUO G190EAN01.1 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.7/0.9A (Typ./Max.) |
| Consumption | 3.5/4.5W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : | Type | Connector | Position | Rear |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-XB30SSL-HF15 | 1.0mm | 30 pins | 1 pcs | LVDS-30P2C8B-190A |
AUO G190EAN01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 9S6P | Position | Edge light type (Bottom side) |
| Exchange |
- | Lamp Shape | 6 strings | Lamp Life | 50K(Min.) Hours |
| Lamp Electrical : | Input Current | 80mA (Typ.) | Input Voltage | 28.75V (Typ.) |
| Consumption | 13.8/16.2W (Typ./Max.) |
| Interface Features : | Position | - | Type | Connector |
| Backlight Driver : | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MS24019RHD | 1.25mm | 9 pins | 1 pcs | |
| Driver Electrical : | Input Current | 1.2A (Typ.) | Input Voltage | 12.0±1.2V |
| Consumption | 14.4/15.8W (Typ./Max.) |
AUO G190EAN01.1 Packing Details
Package Box :
| Amount | Size (L*W*H) | Weight |
| 7 pcs / box | 476*274*414mm | 17.5 Kgs |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G190EAN01.1. Please include your application and required quantity so we can confirm the applicable revision.
