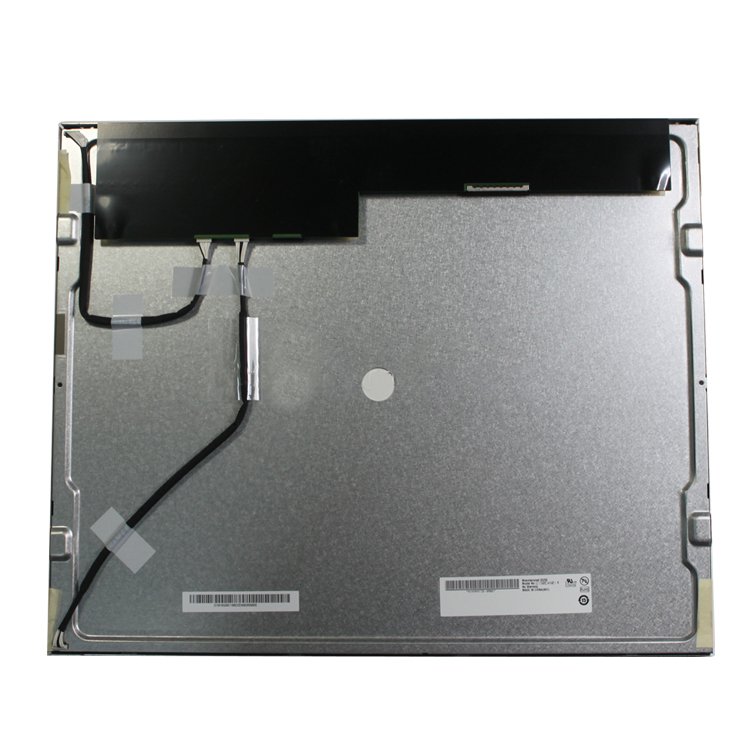

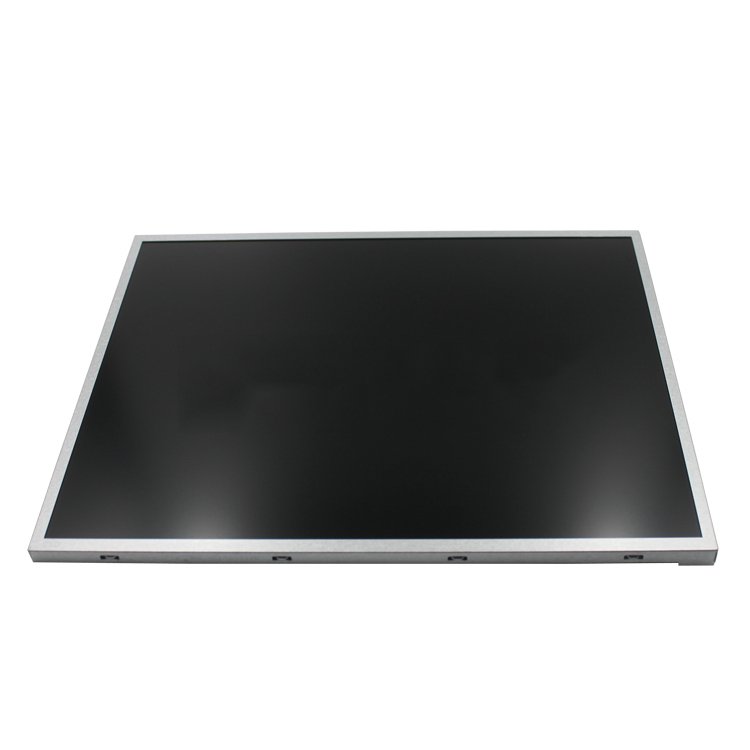

AUO G190EAN01.6 Application Details
| Basic Information : | Brand | AUO | Model | G190EAN01.6 |
| Type | a-Si TFT-LCD , LCM | Used For | Industrial,Medical Imaging,Outdoor High Brightness | |
| Screen Size | 19.0 inch | |||
| Environment : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) | |
| Typical Features : | Hight Brightness,WLED Backlight,Life>=50K hours,With LED Driver,Upside I/F,Matte | |||
AUO G190EAN01.6 Mechanical Details
| Pixel Features : | Resolution | 1280(RGB)*1024, SXGA | Dot Pitch(mm) | 0.098*0.294 (H*V) |
| Pixel Format R | RGB Vertical Stripe | Pixel Pitch(mm) | 0.294*0.294 (H*V) [86PPI] | |
| Mechanical Size : | Active Viewing | 376.32(H) *301.056(V) | Bezel Area(mm) | 380.32*305.06 mm (H*V) |
| Outline Dim.(mm) | 396(H) *324(V) | Depth(mm) | 15.8 (Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 5:4 (H:V) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.70±0.15Kgs | Treatment | Antiglare |
AUO G190EAN01.6 Optical Details
| Basic Information : | Luminance( cd/m²) | 950 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 3/7 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | Wx:0.299; Wy:0.315 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 7502K | White Uniformity | 1.25/1.33 (Max.)(5/9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
AUO G190EAN01.6 Electronics Details
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
AUO G190EAN01.6 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.67/0.8A (Typ./Max.) | ||
| Consumption | 3.35/4.0W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
| Interface Features : | Position | Upper right of panel | Type | Connector | ||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Assignment |
| JAE | FI-XB30SSLA-HF15 | 1.0mm | 30 pins | 1 pcs | ||
AUO G190EAN01.6 Backlight Details
| Backlight Features : | Type | WLED | Quantity | - | Position | Edge light type | |||||||||||
| Replacement | - | Shape | - | Life Time | 50K(Min.) Hours | ||||||||||||
| Interface Features : | Position | - | Type | Connector | Lamp Driver | With LED Driver | |||||||||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | |||||||||||
| STM | MS24019RHD | 1 pcs | 9 pins | 1.25 mm | |||||||||||||
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | - | |||||||||||||
| Consumption | 37.5W (Typ.) | ||||||||||||||||
AUO G190EAN01.6 Packing Details
| Package Box : | Quantity | Weight | Box Size (L*W*H) |
| 9pcs / box | 17.6 Kgs (Max.) | 474*380*417 mm |
