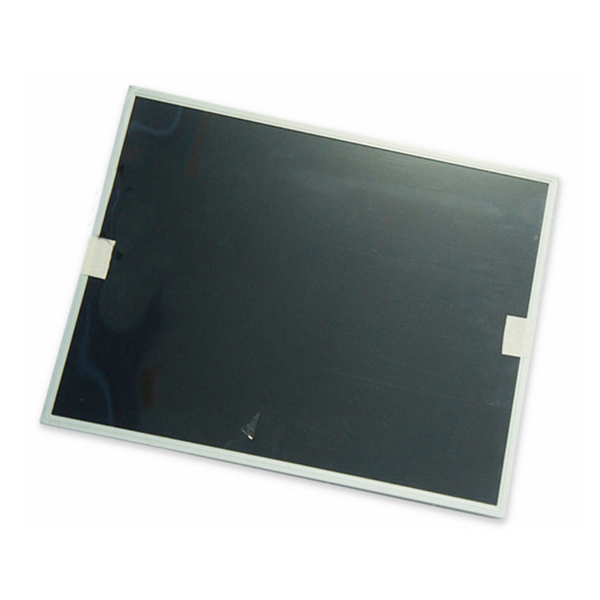

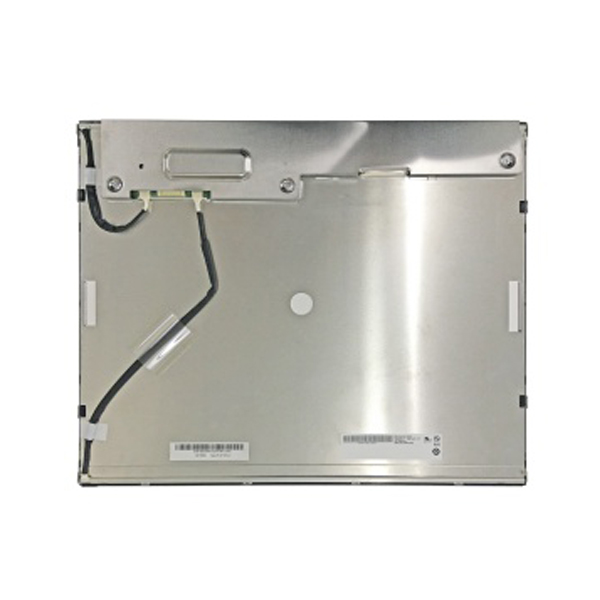

AUO G190EG02 V0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G190EG02 V0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G190EG02 V.0 |
| Panel Size | 19inch | Designed For | Industrial,Medical Imaging |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | High Brightness,Life>=50K hours,With LED Driver,WLED Backlight,Upside I/F,Matte |
AUO G190EG02 V0 Optical Details
| Basic Information : | Luminance | 600 cd/m² (Typ.) (Typ.) | Contrast Ratio | 2000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit ) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 69% | sRGB | 92% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 72% coverage |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G190EG02 V0 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*1024 [SXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.098*0.294 mm | Pixel Pitch(W*H) | 0.294*0.294 mm [86PPI] |
| Physical Size : | Active Viewing(mm) | 376.32(W)*301.056(H) mm | Outline Dim.(mm) | 396*324 mm (H*V) |
| Bezel Area | 380.32(W)*305.06(H) mm | Outline Depth | 14.3/21.85 (Typ./Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 5:4(H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 2.00/2.10Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
AUO G190EG02 V0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 55W (Typ.) |
AUO G190EG02 V0 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply |
1.5/1.8A (Typ./Max.) |
| Consumption | 7.5/9.0W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : |
Type
| Connector | Position | Rear |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSBKT2407P30HB | 1.0mm | 30 pins | 1 pcs | LVDS-30P2C8B-190A |
AUO G190EG02 V0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Top and Bottom) |
| Exchange |
- | Lamp Shape | - | Lamp Life | 50K(Min.) Hours |
| Interface Features : | Position | Rear | Type | Connector |
| Backlight Driver : | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF14A-15P-1.25H | 1.25mm | 15 pins | 1 pcs | |
| Driver Electrical : | Input Current | 3.96A (Typ.) | Input Voltage | 12.0V (Typ.) |
| Consumption | 47.5/51W (Typ./Max.) |
AUO G190EG02 V0 Packing Details
Package Box :
| Amount | Size (L*W*H) | Weight |
| 6 pcs / box | 476*274*413 mm | 16.5 Kgs |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G190EG02 V0. Please include your application and required quantity so we can confirm the applicable revision.
