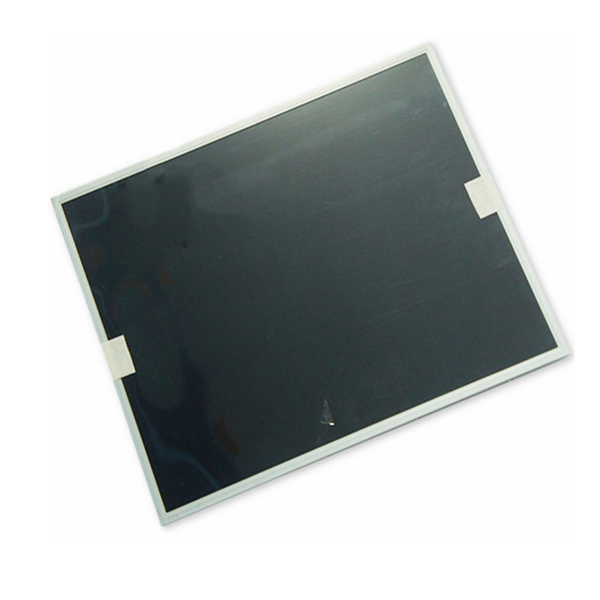

AUO G190EG02 V1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G190EG02 V1 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G190EG02 V.1 | |
| Panel Size | 19inch | Designed For | Industrial,Medical Imaging | |
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight,Life>=50K hours,With LED Driver, Upside I/F,Matte | |||
AUO G190EG02 V0 Optical Details
| Basic Information : | Luminance | 300cd/m²(Typ.) | Contrast Ratio | 2000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) ms | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit ) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 69% | sRGB | 92% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 72% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G190EG02 V0 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*1024 [SXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.098*0.294 mm | Pixel Pitch(W*H) | 0.294*0.294 mm [86PPI] | |
| Physical Size : | Active Viewing(mm) | 376.32(W)*301.056(H) mm | Outline Dim.(mm) | 396*324 mm (H*V) |
| Bezel Area | 380.32(W)*305.06(H) mm | Outline Depth | 18.9 (Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 5:4(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.75Kgs (Typ.) | Surface | Antiglare |
AUO G190EG02 V0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 30.6W |
AUO G190EG02 V0 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.94/1.1A (Typ./Max.) | |||||
| Consumption | 4.7/5.5W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | ||||||
| Interface Features : | Type | Connector | Position | Rear | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||
| STM | MSBKT2407P30HB | 1.0mm | 30 pins | 1 pcs | LVDS-30P2C8B-190A | ||||
AUO G190EG02 V0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Bottom side) | |||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) Hours | ||||||||
| Interface Features : | Position | Rear | Type | Connector | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||||
| HRS | MS24019RHD | 1.25mm | 9 pins | 1 pcs | |||||||||
| Driver Electrical : | Input Current | 1.87/2.1A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | |||||||||
| Consumption | 22.4/25.1W (Typ./Max.) | ||||||||||||
AUO G190EG02 V0 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 7 pcs / box | 475*400*265 mm | 12.05 Kgs |
Contact us to request the current datasheet and mechanical drawing for G190EG02 V1. Please include your application and required quantity so we can confirm the applicable revision.
