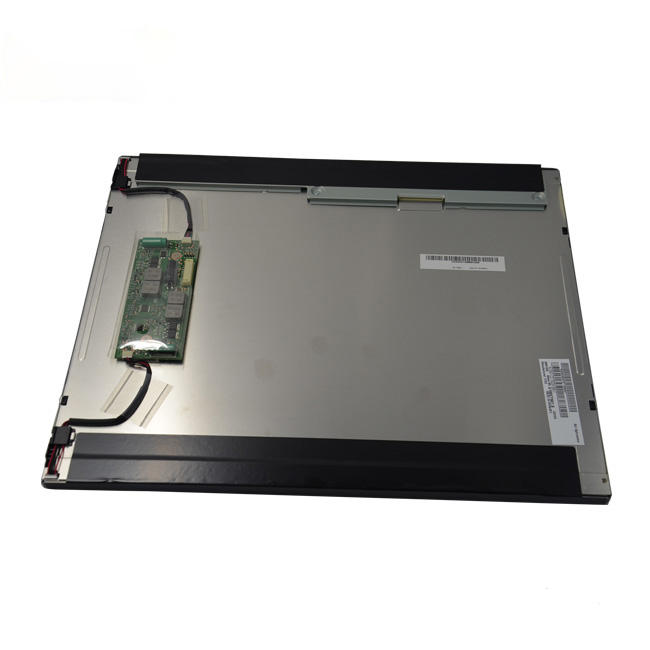

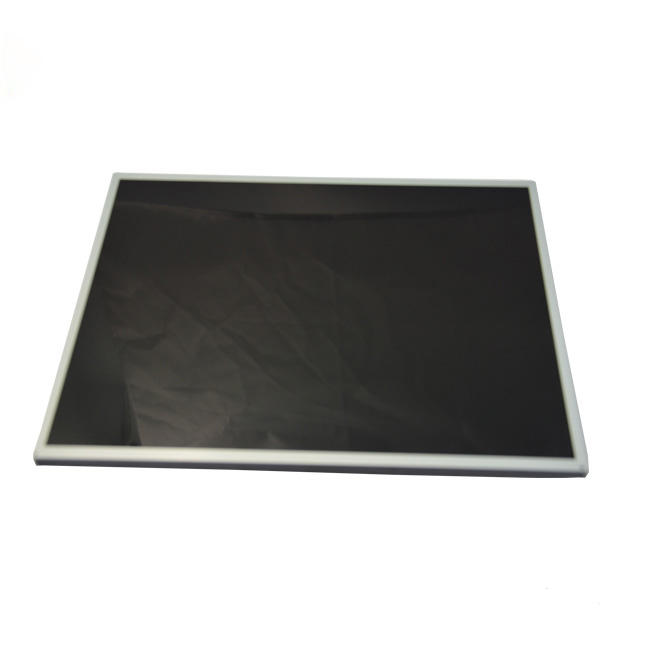

AUO G190ETN01.6 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G190ETN01.6 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 19inch | Designed For | Industrial,Outdoor High Brightness |
| Maximum Ratings : | OP Temperature | -30 ~ 70 °C | ST Temperature | -30 ~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Wide Temperature，Ultra High Brightness,Life>=50K hours,With LED Driver,WLED Backlight,Upside I/F |
AUO G190ETN01.6 Optical Details
| Basic Information : | Luminance | 1600 cd/m²(Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 10 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 70% | sRGB | 92% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 73% coverage |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO G190ETN01.6 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*1024 [SXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.098*0.294 mm | Pixel Pitch(W*H) | 0.294*0.294 mm [86PPI] |
| Physical Size : | Active Viewing(mm) | 376.32(W)*301.056(H) mm | Outline Dim.(mm) | 396*324 mm (H*V) |
| Bezel Area | 379.72(W)*304.46(H) mm | Outline Depth | 16.43/26.69 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 5:4(H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M4) on left, right bezel |
| Other Features : | Weight | 2.12Kgs (Typ.) | Surface | Hard coating (2H), Antireflection |
AUO G190ETN01.6 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 48W (Typ.) |
AUO G190ETN01.6 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply |
1.0/1.2A (Typ./Max.) |
| Consumption | 6.0W (Max.) | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : |
Type | Connector | Position | Rear |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF14H-30P-1.25H(56) | 1.25mm | 30 pins | 1 pcs | LVDS-30P2C8B-200A |
AUO G190ETN01.6 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
- | Lamp Shape | - | Lamp Life | 50K(Min.) Hours |
| Interface Features : | Position | - | Type | Connector |
| Backlight Driver : | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| CviLux | CI0110M1HR0-LF | 2.0mm | 10 pins | 1 pcs | |
| Driver Electrical : | Input Current | - | Input Voltage | 5.0/12.0/21.0V (Min./Typ./Max.) |
| Consumption | 40/44W (Typ.) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G190ETN01.6. Please include your application and required quantity so we can confirm the applicable revision.
