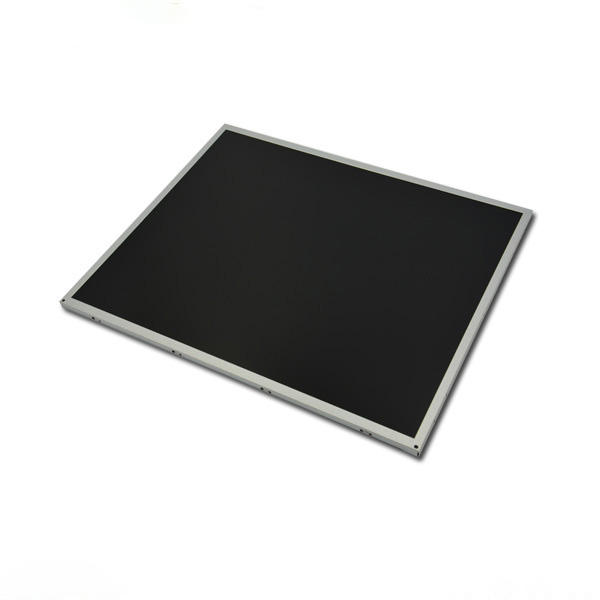

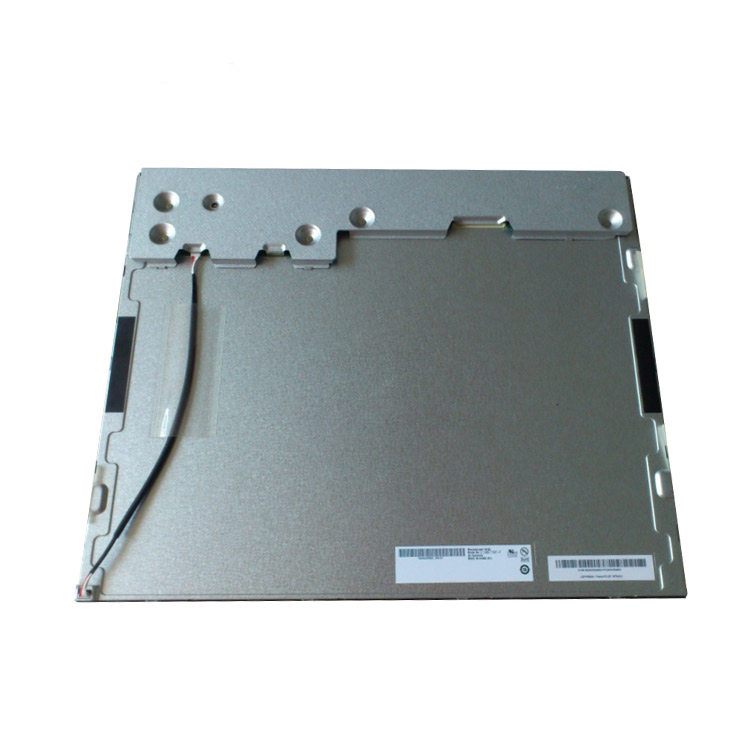

AUO G190ETN01.001 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | G190ETN01.001 |
| Diagonal Size | 19.0inch | Application | Industrial | |
| Panel Type | a-Si TFT-LCD , LCM | |||
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
| Specific Features : | DCI-P3,Srgb, WLED Backlight,Matte | |||
AUO G190ETN01.001 Mechanical Details
| Pixel Features : | Pixel Format | 1280(RGB)*1024, SXGA | Dot Pitch (W*H) | 0.098*0.294 mm |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.294*0.294 mm [86PPI] | |
| Mechanical Size : | Active Viewing | 376.32(W)*301.056(H) mm | Overall Dim. | 396(W)*324(H) mm |
| Bezel Opening | 380.0*305.08 mm (H*V) | Overall Depth | 11.7 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 5:4 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.80Kgs (Typ.) | Surface | Antiglare |
AUO G190ETN01.001 Optical Details
| Brightness | Brightness | 350 cd/m²; (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 3.6/1.4 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 89% | sRGB | 100% coverage |
Adobe RGB | 84% coverage | DCI-P3 | 92% coverage | |
| Rec.2020 | 67% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G190ETN01.001 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 13.9W (Typ.) |
AUO G190ETN01.001 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 30K(Typ.) (Hours) | ||||
| Replacement | - | Lamp Shape | - | Position | Edge light type (Bottom side) | |||||
| Lamp Electrical : | Input Voltage | 38.4/41.6V (Typ./Max.) | Input Current | 60mA (Typ.) | ||||||
| Consumption | 9.2/10.3W (Typ./Max.) | |||||||||
| Interface Features : | Type | Connector | Position | Down left corner | ||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||||
| CviLux | CI1406M1HRN-NH1 | 1.0mm | 6pins | 1 pcs | BLE-6PINS-CCAACC | |||||
| Lamp Driver | No | |||||||||
AUO G190ETN01.001 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||||
| Signal Electrical : | Input Current | 0.94/1.1A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||||
| Consumption | 4.7/5.5W (Typ./Max.) | |||||||
| Interface Features : | Type | Connector | Position | - | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | ||
| JAE | FI-XB30SSLA-HF15 | 1.0mm | 30 pins | 1 pcs | LVDS-30P2C8B-180A | |||
AUO G190ETN01.001 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 13 pcs / box | 26.69 Kgs | 409*367*475 mm (L*W*H) |
Contact us to request the current datasheet and mechanical drawing for G190ETN01.001. Please include your application and required quantity so we can confirm the applicable revision.
