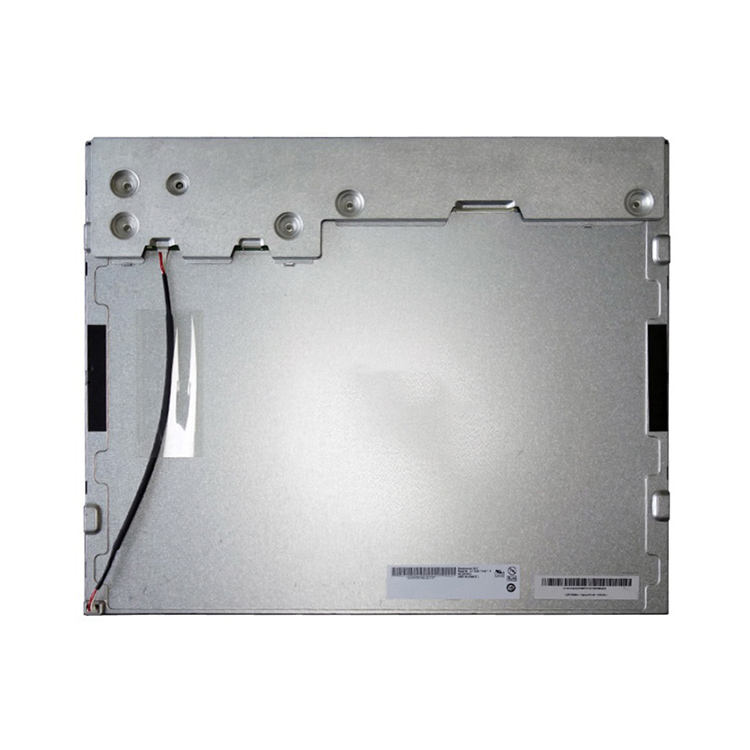

AUO G190ETN01.204 LCD Panel | 19" 1280x1024 TFT Display with -30°C~+85°C

  • AUO G190ETN01.204 LCD Panel | 19" 1280x1024 TFT Display with -30°C~+85°C
  • AUO G190ETN01.204 LCD Panel | 19" 1280x1024 TFT Display with -30°C~+85°C
  • Model:G190ETN01.204
  • Brand:AUO
  • Size:19.0inch
  • Resolution:1280×1024
  • Brightness:350 cd/m² (Typ.)
  • Perspective:85/85/80/80 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-30 ~ 85 °C
  • Production State:In production
  • Request a Quote
  • Technical Parameters
  • AUO G190ETN01.204 Application Details

    Basic Info :Panel BrandAUOPanel ModelG190ETN01.204
    Diagonal Size19.0inchApplicationIndustrial
    Panel Typea-Si TFT-LCD , LCM
    Reliability :Operating Temp.-30 ~ 85  °CStorage Temp.-30 ~ 85  °C
    RoHS StateRoHSVibration Rating1.5G (14.7 m/s²)
    Specific Features :Wide Temperature, WLED Backlight,Life>=50K hours,With LED Driver,Reverse I/F,Matte


    AUO G190ETN01.204 Mechanical Details

    Pixel Features :Pixel Format1280(RGB)*1024, SXGADot Pitch (W*H)0.098*0.294 mm
    ConfigurationRGB Vertical StripePixel Pitch0.294*0.294 mm  [86PPI]
    Mechanical Size :Active Viewing376.32(W)*301.056(H) mmOverall Dim.396(W)*324(H) mm
    Bezel Opening379.72(W)*304.46(H) mmOverall Depth15.68 (Max.) mm
    Outline Features :Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio5:4 (H:V)Shape Style
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    Other Features :Weight1.80Kgs (Typ.)SurfaceAntiglare, Hard coating (3H)


    AUO G190ETN01.204 Optical Details

    BrightnessBrightness300 cd/m²(Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
    Viewing Angle85/85/80/80 (Typ.)(CR≥10)Optical ModeTN, Normally White, Transmissive
    Viewing Direction-Response Time7/3 (Typ.)(Tr/Td) ms
    Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers16.7M (6-bit + Hi-FRC)
    Color Temperature6485KUniformity1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamut :NTSC Ratio70%sRGB92% coverage

    Adobe RGB
    72%
    coverage
    DCI-P373% coverage
    Rec.202052% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    AUO G190ETN01.204 Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :No
    Total Consumption :13.5W (Typ.)


    AUO G190ETN01.204 Backlight Details

    Back-light Features :Lamp TypeWLEDAmount4 stringsLife Time50K(Typ.) (Hours)
    Replacement-Lamp Shape4 stringsPositionEdge light type (Bottom side)
    Lamp Electrical :Input Voltage36.0/38.4V (Typ./Max.)Input Current50mA (Typ.)
    Consumption7.2/7.68W (Typ./Max.)
    Interface Features :TypeConnectorPosition-
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
     SM08B-GHH-TB 8 pins1 pcs
    Backlight Driver :With LED Driver

    Driver Electrical :Voltage Input12.0±1.2VCurrent Input0.68/0.75A (Typ./Max.)
    Consumption8.5/9.0W (Typ./Max.)


    AUO G190ETN01.204 Interface Details

    Signal Systerm :LVDS (2 ch, 8-bit)Logic Voltage-
    Signal Electrical :Input Current1.0/1.2A (Typ./Max.)Input Voltage5.0V (Typ.)
    Consumption5.0/6.0W (Typ./Max.)
    Interface Features :TypeConnectorPositionUpper right of panel
    Connector Detail :BrandModelPin PitchPinsAmountConfiguration
    HRS
    DF14H-30P-1.25H
    1.25mm30 pins1 pcsLVDS-30P2C8B-180A


    AUO G190ETN01.204 Packing Details

    Package Box :QuantityWeightBox Size
    8 pcs / box18.0 Kgs489*293*420 mm (L*W*H)



Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for G190ETN01.204. Please include your application and required quantity so we can confirm the applicable revision.
