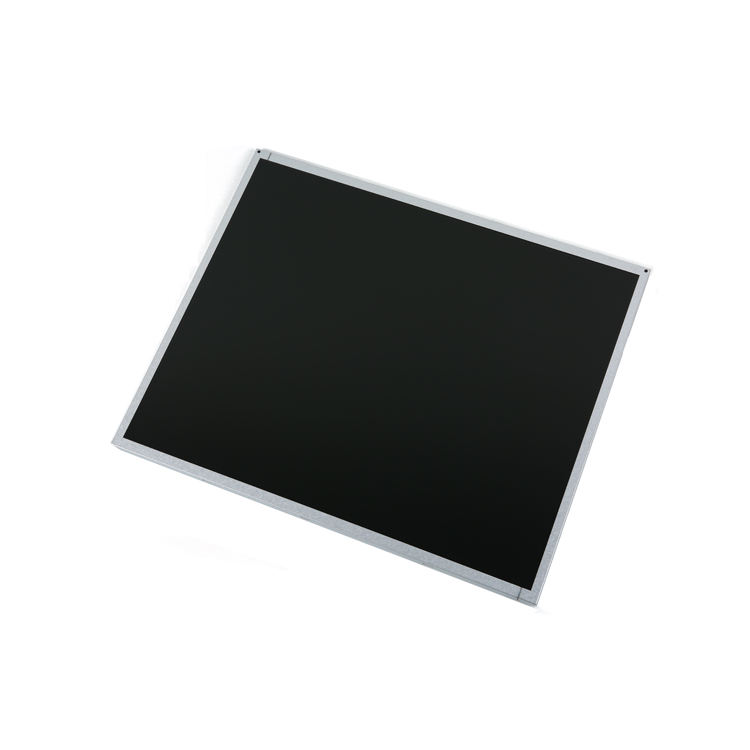

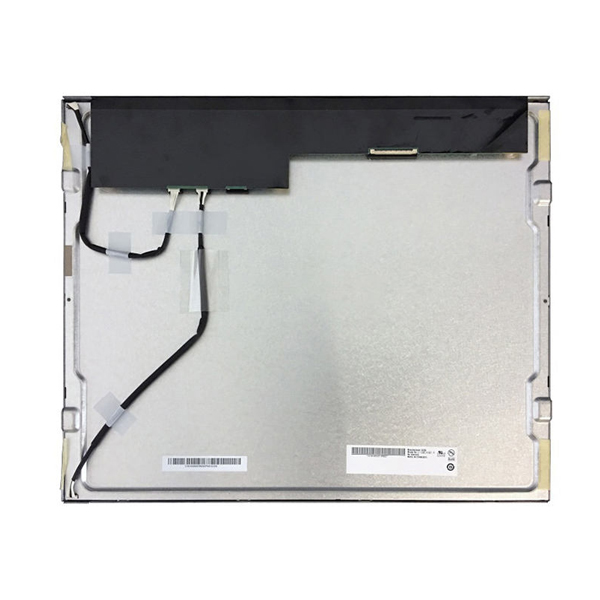

AUO G190ETN01.601 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | G190ETN01.601 |
| Diagonal Size | 19.0inch | Application | Industrial,Outdoor High Brightness | |
| Panel Type | a-Si TFT-LCD , LCM | |||
| Reliability : | Operating Temp. | -30 ~ 70 °C | Storage Temp. | -30 ~ 70 °C |
| RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
| Specific Features : | Wide Temperature,Ultra High Brightness, WLED Backlight,Life>=50K hours,With LED Driver,Upside I/F | |||
AUO G190ETN01.601 Mechanical Details
| Pixel Features : | Pixel Format | 1280(RGB)*1024, SXGA | Dot Pitch (W×H) | 0.098*0.294 mm |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.294*0.294 mm [86PPI] | |
| Mechanical Size : | Active Viewing | 376.32(W)*301.056(H) mm | Overall Dim. | 396(W)*324(H) mm |
| Bezel Opening | 380.0*305.08 mm (H×V) | Overall Depth | 15.29±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 5:4 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.80Kgs (Typ.) | Surface | Hard coating (2H), Antireflection |
AUO G190ETN01.601 Optical Details
| Brightness | Brightness | 1600 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 10 (Typ.)(Tr+Td) ms | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.320 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6737K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO G190ETN01.601 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 48W (Typ.) |
AUO G190ETN01.601 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Typ.) (Hours) | |||||||
| Replacement | - | Lamp Shape | - | Position | Edge light type | ||||||||
| Interface Features : | Type | Connector | Position | - | |||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||||
| MS240110RHD | 1.0mm | 1 pcs | |||||||||||
| Lamp Driver | With LED Driver | ||||||||||||
| Driver Electrical : | Input Voltage | 5.0/12.0/21.0V (Min./Typ./Max.) | Input Current | 2.6A (Typ. | |||||||||
| Consumption | 34/39W (Typ./Max.) | ||||||||||||
AUO G190ETN01.601 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||||
| Signal Electrical : | Input Current | 0.6/0.8A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||||
| Consumption | 3/4W (Typ./Max.) | |||||||
| Interface Features : | Type | Connector | Position | Upper right of panel | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | ||
| JAE | FI-XB30SSLA-HF16 | 1.0mm | 30 pins | 1 pcs | LVDS-30P2C8B-200A | |||
AUO G190ETN01.601 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 7pcs / box | 14 Kgs | 476*274*414 mm (L*W*H) |
Contact us to request the current datasheet and mechanical drawing for G190ETN01.601. Please include your application and required quantity so we can confirm the applicable revision.
