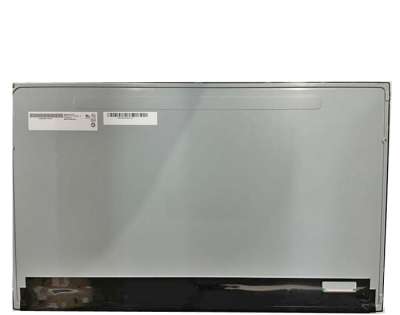

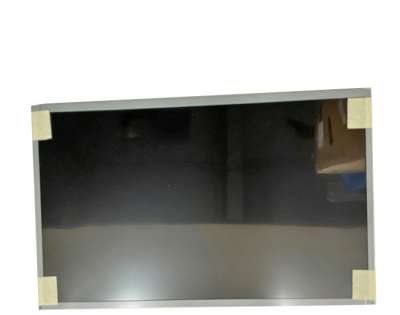

AUO G215HAN01.501 21.5 Inch FHD LCD Display – 500 nit High Brightness Industrial Panel
Product Overview
The AUO G215HAN01.501 is a 21.5-inch industrial-grade TFT-LCD display module manufactured by AU Optronics (AUO). First launched in Q2 2021, this panel delivers stunning FHD resolution (1920×1080) in a 16:9 widescreen format, making it an excellent choice for medical imaging, industrial control systems, digital signage, and embedded applications requiring high brightness and exceptional image quality.
Key differentiator: With an impressive 500 cd/m² high brightness—significantly higher than standard industrial displays (typically 250-350 cd/m²)—and 97% sRGB color gamut coverage, the G215HAN01.501 delivers vibrant, accurate colors and excellent visibility in high-ambient-light environments.
The AHVA (AUO Advanced wide Viewing Angle) technology provides full 89/89/89/89° viewing angles with normally black mode for superior dark-room performance, making it ideal for medical imaging and control room applications
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G215HVN01.501 |
Screen Size | 21.5 inch |
Resolution | FHD 1920 × 1080 |
Pixel Density | 102 PPI |
Aspect Ratio | 16:9 |
Display Technology | a-Si TFT-LCD, AMVA, Normally Black, Transmissive |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89°/89°/89°/89° (Full) |
Response Time | 12/10 ms (Typ.)(Tr/Td) |
Display Colors | 16.7M (6-bit + Hi-FRC) |
Color Gamut | 97% sRGB, 75% NTSC, 77% DCI-P3 |
Color Temperature | 6485K |
Interface | LVDS (2 ch, 8-bit), 30 pins |
Connector | STM MSBKT2407P30HB (1.0mm pitch) |
Backlight Type | WLED, Edge light type (Top side) |
Backlight Life | 30,000 hours (Min.) |
LED Driver | Not included (external driver required) |
Touch Panel | No (custom touch upgrades available) |
Operating Temperature | -10°C ~ 60°C |
Storage Temperature | -20°C ~ 60°C |
Active Area | 476.064 × 267.786 mm |
Outline Dimension | 495.6 × 292.2 × 11.1 mm |
Surface Treatment | Anti-Glare (Matte), Hard coating (3H) |
Weight | 1.74Kgs (Typ.) |
Refresh Rate | 60Hz |
Vibration Resistance | 1.5G (14.7 m/s²) |
Power Consumption | 20.03W (Typ.) |
RoHS | Compliant |
Production Status | In Production (since Q2 2021) |
Key Advantages
1. 500 cd/m² High Brightness – Superior Visibility
The G215HAN01.501 delivers 500 cd/m² typical brightness—40-100% brighter than standard industrial displays. Key benefits include:
Excellent visibility in high-ambient-light environments — factory floors, operating rooms, well-lit lobbies
Clear readability even with overhead lighting and window glare
Reduced eye strain for operators working in bright conditions
Ideal for medical imaging where brightness consistency is critical
2. AHVA Wide Viewing Angle Technology
Incorporating AUO's proprietary AHVA technology (similar to IPS), this display offers:
Full 89/89/89/89° viewing angles — no color shift or contrast loss from any direction
Normally Black mode — deeper blacks and better contrast in dark environments
Superior dark-room performance — ideal for medical imaging and control rooms
Excellent color consistency — accurate colors across the entire viewing cone
3. Wide Color Gamut – 97% sRGB Coverage
The G215HAN01.501 delivers exceptional color performance with:
97% sRGB coverage for vibrant, accurate colors
75% NTSC and 77% DCI-P3 color gamut
16.7M colors (6-bit + Hi-FRC) for smooth color gradations
6485K color temperature for neutral white balance
Perfect for medical imaging, diagnostic displays, and color-critical applications
4. FHD Resolution & High Pixel Density (1920×1080, 102 PPI)
The 1920×1080 FHD resolution with 102 PPI pixel density delivers:
Crisp, detailed imagery for medical imaging and industrial HMI
Sharp text rendering for data-intensive applications
16:9 widescreen format ideal for modern interfaces and video content
5. LVDS Interface for Industrial Compatibility
The dual-channel LVDS (2 ch, 8-bit) interface with 30-pin connector offers:
Stable signal transmission over longer distances
Wide compatibility with industrial controllers, embedded PCs, and SoCs
5.0V logic voltage — standard industrial levels
Proven reliability in industrial environments
6. Wide Operating Temperature (-10°C to 60°C)
The G215HAN01.501 operates reliably across -10°C to 60°C, with extended storage from -20°C to 60°C:
Suitable for cold storage monitoring and refrigeration applications
Reliable performance in factory environments with temperature fluctuations
1.5G vibration resistance for transportation and industrial equipment
7. Long-Life Backlight & Industrial Durability
30,000-hour WLED backlight life — suitable for continuous operation
Anti-glare matte surface with 3H hard coating — reduces reflections, provides scratch resistance
Side mounting holes (4-M3) for secure installation
RoHS compliant — meets global environmental standards
In Production status — stable supply since 2021
Applications
The AUO G215HVN01.501 is designed for a wide range of industrial, medical, and commercial applications requiring excellent image quality and long-term reliability:
Application Area | Specific Use Cases |
Industrial HMI | Factory automation panels, machine control interfaces, SCADA systems |
Medical Imaging | Diagnostic displays, PACS workstations, surgical monitors, patient monitoring |
Gaming & Amusement | Gaming machines, slot displays, casino terminals, arcade games |
Digital Signage | Indoor information displays, public information kiosks, menu boards |
Industrial PCs | Embedded computers, rack-mounted industrial displays |
Control Rooms | Power plant monitoring, security surveillance, traffic control |
Test & Measurement | Oscilloscopes, spectrum analyzers, lab equipment |
Gaming & Amusement | Gaming machines, slot displays, arcade games |
Process Control | Oil & gas monitoring, chemical plant control systems |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Touch panel upgrades, custom cables, optical bonding
Order Information
Item | Details |
Model | AUO G215HVN01.501 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Production Status | In Production |
Comparison reference between AUO G215HAN01.501 and models of the same series/size:
Comparison item | G215HAN01.501 | G215HVN01.001 | G215HVN01.3 | Ordinary 21.5-inch industrial screen |
Contrast | 1000:1 | 5000:1 | 1000:1 | 1000:1 |
Operating Temperature | -10°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 50°C |
Color gamut | 97% sRGB | 98% sRGB | 72% sRGB | 70-80% sRGB |
Backlight life | 30000 hours | 50000 hours | 50000 hours | 30,000-50,000hours |
Brightness | 500 cd/m² | 300 cd/m² | 250 cd/m² | 250-400 cd/m² |
display technology | AMVA | AMVA3 | AMVA | TN/IPS |
LED driver | No | built-in | No | Part needs to be external |
Production Status | In mass production | In mass production | In mass production | In mass production |
Main applications | Medical/High Brightness Industry | high contrast | Standard Industry | General Industry |
Ready to order or need more information?
Contact us today for a quote or technical consultation.
