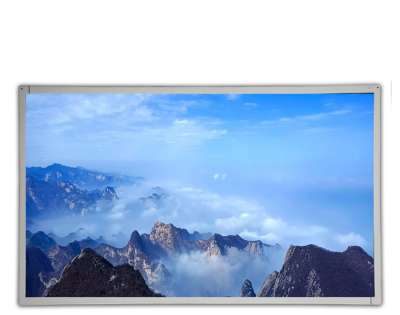

AUO G215HAN01.A 21.5 Inch FHD LCD Display – AHVA Wide Viewing Angle Industrial Panel
Product Overview
The AUO G215HAN01.A is a 21.5-inch industrial-grade TFT-LCD display module manufactured by AU Optronics (AUO). First launched in Q3 2019, this panel delivers stunning FHD resolution (1920×1080) in a 16:9 widescreen format, making it an excellent choice for industrial control systems, medical imaging equipment, gaming machines, and digital signage requiring high image quality and long-term reliability .
Key differentiator: Equipped with AHVA (Advanced Hyper-Viewing Angle) technology—similar to IPS—this display offers full 89°/89°/89°/89° viewing angles with no grayscale inversion effect. The Normally Black mode provides superior dark-room performance with deeper blacks and better contrast in low-light environments
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G215HVN01.A |
Screen Size | 21.5 inch |
Resolution | FHD 1920 × 1080 |
Pixel Density | 102 PPI |
Aspect Ratio | 16:9 |
Display Technology | a-Si TFT-LCD, AHVA/AMVA, Normally Black, Transmissive |
Brightness | 250 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89°/89°/89°/89° (Full) |
Response Time | 22 ms (Typ.)(G to G) |
Display Colors | 16.7M (6-bit + Hi-FRC) |
Color Gamut | 72% NTSC |
Color Temperature | 6485K |
Interface | LVDS (2 ch, 8-bit), 30 pins |
Backlight Type | WLED, Edge light type |
Backlight Life | 50,000 hours (Min.) |
LED Driver | Not included (external driver required) |
Touch Panel | No (custom touch upgrades available) |
Operating Temperature | 0°C ~ 50°C |
Storage Temperature | -20°C ~ 60°C |
Active Area | 476.064 × 267.786 mm |
Outline Dimension | 495.6 × 292.2 mm |
Surface Treatment | Anti-Glare (Matte), Hard coating (3H) |
Weight | Contact us for detailed spec |
Refresh Rate | 60Hz |
Vibration Resistance | 1.5G (14.7 m/s²) |
RoHS | Compliant |
Production Status | In Production |
Key Advantages
1. AHVA Wide Viewing Angle Technology
The G215HAN01.A incorporates AUO's proprietary AHVA technology (Advanced Hyper-Viewing Angle), delivering full 89-degree viewing angles in all directions. Key benefits include:
Excellent off-axis readability — ideal for medical and public displays viewed from multiple angles
Superior color consistency — no color shift or contrast loss at extreme angles
No grayscale inversion — unlike conventional TN panels
Normally Black mode — deeper blacks and better contrast in dark environments
2. FHD Resolution & High Pixel Density (1920×1080, 102 PPI)
The 1920×1080 FHD resolution with 102 PPI pixel density delivers:
Crisp, detailed imagery for industrial HMI and medical imaging
Sharp text rendering for data-intensive applications
16.7M colors (6-bit + Hi-FRC) for smooth color gradations
72% NTSC color gamut for vibrant colors
3. Long-Life Backlight (50,000 Hours)
The panel features a 50,000-hour WLED backlight life (minimum):
Long-term reliability — significantly reduces maintenance costs in continuous operation
Ideal for 24/7 operation — reliable performance for always-on industrial applications
Note: External LED driver required (not built-in)
4. LVDS Interface for Industrial Compatibility
The dual-channel LVDS (2 ch, 8-bit) interface with 30-pin connector offers:
Stable signal transmission over longer distances
Wide compatibility with industrial controllers, embedded PCs, and SoCs
5.0V logic voltage — standard industrial levels
Proven reliability in industrial environments
5. Anti-Glare Surface Treatment
The matte anti-glare surface with 3H hard coating:
Reduces unwanted reflections — improves visibility in high-ambient-light environments
Provides scratch resistance — protects the display surface during daily use
Enhances outdoor readability — ideal for bright factory floors and public kiosks
6. Industrial-Grade Durability
50,000-hour WLED backlight life — long-term reliability
1.5G vibration resistance (14.7 m/s²) — suitable for transportation and industrial equipment
RoHS compliant — meets global environmental standards
In Production status — stable supply for ongoing production needs
Applications
The AUO G215HAN01.A is designed for a wide range of industrial, medical, and commercial applications:
Application Area | Specific Use Cases |
Industrial HMI | Factory automation panels, machine control interfaces, PLC terminals, SCADA systems |
Medical Imaging | Diagnostic displays, patient monitoring systems, medical imaging, PACS workstations |
Gaming & Amusement | Gaming machines, slot displays, casino terminals, arcade games |
Digital Signage | Indoor information displays, public information kiosks, menu boards |
Industrial PCs | Embedded computers, rack-mounted industrial displays |
Security & Surveillance | Monitoring stations, control room displays, CCTV monitors |
Control Rooms | Power plant monitoring, security surveillance, traffic control |
Test & Measurement | Oscilloscopes, spectrum analyzers, lab equipment |
Process Control | Power plant monitoring, oil & gas control systems |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Touch panel upgrades, custom cables, optical bonding
Order Information
Item | Details |
Model | AUO G215HVN01.A |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Production Status | In Production |
Comparison reference between AUO G215HAN01.A and models of the same series/size:
Comparison item | G215HAN01.A | G215HVN01.001 | G215HAN01.3 | Ordinary 21.5-inch industrial screen |
Contrast | 1000:1 | 5000:1 | 1000:1 | 1000:1 |
Operating Temperature | 0°C ~ 50°C | 0°C ~ 60°C | 0°C ~ 50°C | 0°C ~ 50°C |
Backlight life | 50000 hours | 50000 hours | 50000 hours | 30,000-50,000hours |
Brightness | 250 cd/m² | 300 cd/m² | 250 cd/m² | 250-400 cd/m² |
viewing angle | 89/89/89/89° | 89/89/89/89° | 89/89/89/89° | 85/85/80/80° |
display technology | AHVA | AMVA3 | AMVA | TN/IPS |
LED driver | No | built-in | No | Part needs to be external |
surface treatment | Matte (3H) | Matte (3H) | Matte (3H) | Matte/glossy |
Main applications | Medical/Industrial | high-end medical care | Standard Industry | General Industry |
