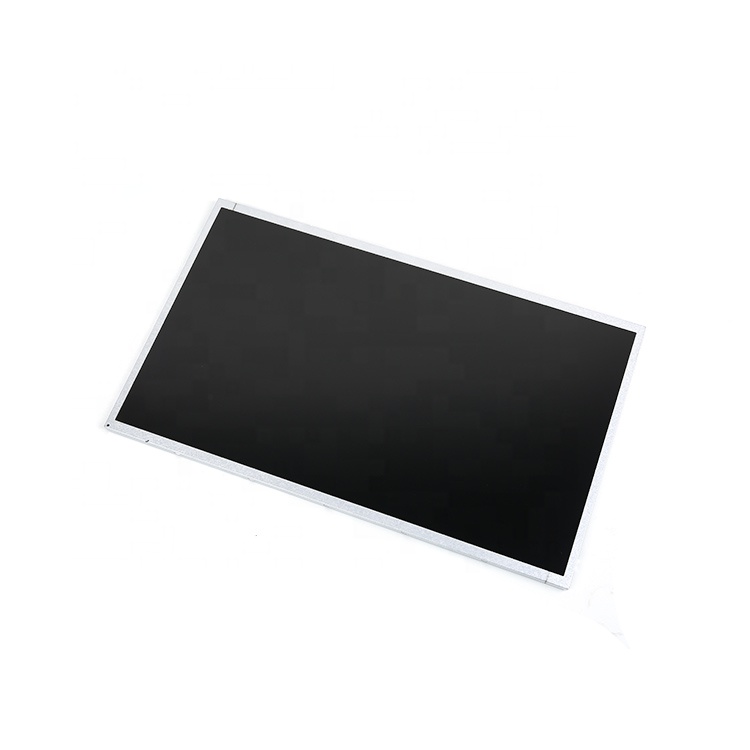

Original G215HAN01.5 21.5" TFT LCD Display Module - for Industrial

Model:G215HAN01.5
Brand:AUO
Size:21.5inch
Resolution:1920×1080
Brightness:500cd/m²(Typ.)
Perspective:89/89/89/89
Interface:LVDS
Operating Temp.:0 ~ 60 °C
Production State:In Production

Request a Quote

Technical Parameters

AUO G215HAN01.5Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G215HAN01.5
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	21.5”	Designed For	Industrial,Medical Imaging
Maximum Ratings :	OP Temperature	0 ~ 60 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	WLED Backlight, Matte

AUO G215HAN01.5 Optical Details

Basic Information :	Luminance	500cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	12/10(Typ.)(Tr/Td)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	AHVA, Normally Black, Transmissive
Color Performance :	Chromaticity	X:0.313; Y:0.329	Support Color	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	75%	sRGB	97% coverage
	Adobe RGB	76% coverage	DCI-P3	78% coverage
	Rec.2020	56% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G215HAN01.5 Mechanical Details

Pixel Features :	Number of Pixel	1920(RGB)*1080, FHD	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W*H)	0.08265*0.24795 mm	Pixel Pitch(mm)	0.247950.24795 mm (HV) [102PPI]
Physical Size :	Active Viewing(mm)	476.064267.786 mm (HV)	Outline Dim.(mm)	497.6292.2 mm (HV)
Physical Size :	Bezel Area (mm)	479.8271.3 mm (HV)	Outline Depth	11.0 (Max.) mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:9(H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.74Kgs (Typ.)	Surface	Antiglare, Hard coating (3H)

AUO G215HAN01.5 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No

AUO G215HAN01.5 Interface Detail

Signal Electrical :	Voltage Supply		5.0V (Typ.)		Current Supply		0.46/0.55A (Typ./Max.)
	Consumption		2.3/2.75W (Typ./Max.)		Signal Interface		LVDS (2 ch, 8-bit)
Interface Features :	Position		-		Type		Connector
Interface Detail :	Brand	Model		Quantity		Pins	Pitch	Pin Configuration
	STM	MSBKT2407P30HB		1 pcs		30 pins	1.0 mm

AUO G215HAN01.5 Backlight Details

Lamp Features :	Lamp Type	WLED	Quantity	-	Position	Edge light type
Lamp Features :	Exchange	-	Lamp Shape	-	Lamp Life	30K(Min.) Hours
Backlight Driver :	No

Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for G215HAN01.5. Please include your application and required quantity so we can confirm the applicable revision.

Request G215HAN01.5 Datasheet

Complete your display assembly

Build a display assembly around your selected LCD panel. Explore touch panels, LCD controller boards and signal or backlight cables.

Touch panels and bonding

Review touch dimensions, host connection, cover glass and bonding requirements.

LCD controller boards

Match the host video output to the panel interface, timing and power requirements.

Signal and backlight cables

Confirm both connector ends, pin mapping, cable length and backlight connections.

We will review the selected panel, controller firmware, cable pinout, power and touch configuration before confirming the proposed assembly. Send your quantity, application, delivery country and required date.

Request a matched display assembly
