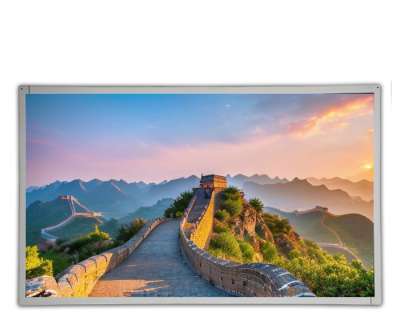

AUO G215HAT01.6 21.5 Inch FHD LCD Display with PCAP Touch – AMVA Industrial Panel
Product Overview
The AUO G215HAT01.6 is a 21.5-inch industrial-grade TFT-LCD display module manufactured by AU Optronics (AUO). This panel delivers stunning FHD resolution (1920×1080) in a 16:9 widescreen format, making it an excellent choice for industrial control systems, outdoor kiosks, medical equipment, and interactive displays requiring reliable touch functionality and high image quality.
Key differentiator: This model comes factory-equipped with a projected capacitive (PCAP) touch panel using gasket bonding—offering a complete plug-and-play touch solution for interactive applications. With 400 cd/m² brightness, 1000:1 contrast ratio, AMVA wide viewing angle technology providing full 89/89/89/89° viewing angles, and 50,000-hour WLED backlight life, the G215HAT01.6 delivers exceptional performance in demanding environments.
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G215HAT01.6 |
Screen Size | 21.5 inch |
Resolution | FHD 1920 × 1080 |
Pixel Density | 102 PPI |
Aspect Ratio | 16:9 |
Display Technology | a-Si TFT-LCD, AMVA, Normally Black, Transmissive |
Brightness | 400 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89°/89°/89°/89° (Full) |
Response Time | 22 ms (Typ.)(G to G) |
Display Colors | 16.7M (6-bit + Hi-FRC) |
Color Gamut | 72% NTSC |
Color Temperature | 6485K |
Interface | LVDS (2 ch, 8-bit), 30 pins |
Backlight Type | WLED, Edge light type |
Backlight Life | 50,000 hours (Min.) |
LED Driver | Projected Capacitive (PCAP), Gasket bonding |
Touch Panel | Not included (external controller required) |
Operating Temperature | -10°C ~ 50°C |
Storage Temperature | -20°C ~ 60°C |
Active Area | 476.064 × 267.786 mm |
Surface Treatment | Anti-Glare (Matte), Hard coating (3H) |
Refresh Rate | 60Hz |
Vibration Resistance | 1.5G (14.7 m/s²) |
RoHS | Compliant |
Production Status | In Production |
Key Advantages
1. Factory-Integrated PCAP Touch Panel
The G215HAT01.6 comes factory-equipped with a projected capacitive (PCAP) touch panel using gasket bonding. Key benefits include:
Complete plug-and-play touch solution — no separate touch module sourcing or lamination required
Multi-touch support — supports gesture-based interactions (pinch, zoom, swipe)
Excellent sensitivity — responsive to light touch, even through protective glass
Durable construction — gasket bonding provides secure attachment and dust protection
Ideal for interactive applications — kiosks, HMI, gaming machines, medical devices
2. AMVA Wide Viewing Angle Technology
Incorporating AUO's proprietary AMVA technology (Advanced Multi-domain Vertical Alignment), this display offers:
Full 89/89/89/89° viewing angles — no color shift or contrast loss from any direction
Normally Black mode — deeper blacks and better contrast in dark environments
Superior dark-room performance — ideal for medical and control room applications
Excellent color consistency — accurate colors across the entire viewing cone
3. High Brightness & Excellent Contrast (400 cd/m² / 1000:1)
The combination of 400 cd/m² high brightness and 1000:1 contrast ratio ensures:
Excellent visibility in high-ambient-light environments — factory floors, outdoor kiosks
Clear visibility even in brightly lit conditions
Vivid colors for professional applications
4. FHD Resolution & Wide Color Gamut (1920×1080, 102 PPI)
The 1920×1080 FHD resolution with 102 PPI pixel density delivers:
Crisp, detailed imagery for industrial HMI and medical imaging
Sharp text rendering for data-intensive applications
16.7M colors for smooth color gradations
6485K color temperature for neutral white balance
5. LVDS Interface for Industrial Compatibility
The dual-channel LVDS (2 ch, 8-bit) interface with 30-pin connector offers:
Stable signal transmission over longer distances
Wide compatibility with industrial controllers, embedded PCs, and SoCs
5.0V logic voltage — standard industrial levels
Proven reliability in industrial environments
6. Long-Life Backlight (50,000 Hours)
The panel features a 50,000-hour WLED backlight life:
50,000-hour lifespan — significantly reduces maintenance costs in continuous operation
Ideal for 24/7 operation — reliable performance for always-on industrial applications
Edge-type design — uniform illumination across the display
Note: This model does NOT include a built-in LED driver. An external backlight driver circuit is required.
7. Industrial-Grade Durability
50,000-hour WLED backlight life — long-term reliability for continuous operation
1.5G vibration resistance (14.7 m/s²) — suitable for transportation and industrial equipment
Anti-glare matte surface with 3H hard coating — reduces reflections, provides scratch resistance
RoHS compliant — meets global environmental standards
In Production status — stable supply for ongoing production needs
Applications
The AUO G215HAT01.6 is designed for demanding industrial, medical, and commercial applications requiring reliable touch functionality and high image quality:
Application Area | Specific Use Cases |
Industrial HMI | Factory automation panels, machine control interfaces, PLC terminals, SCADA systems |
Outdoor Kiosks | Ticketing machines, information kiosks, EV charging station displays |
Medical Equipment | Diagnostic displays, patient monitoring systems, medical imaging |
Interactive Digital Signage | Public information displays, wayfinding kiosks, menu boards |
Gaming & Amusement | Gaming machines, slot displays, casino terminals, arcade games |
Transportation | Bus information displays, train passenger terminals |
Security & Surveillance | Monitoring stations, control room displays with touch interaction |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Custom cables, optical bonding, cover glass integration
Order Information
Item | Details |
Model | AUO G215HAT01.6 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Production Status | In Production |
Comparison reference between AUO G215HAN01.6 and models of the same series/size:
Comparison item | G215HAT01.6 | G215HVN01.1 | G215HAN01.3 | Advantages Description |
Touch function | PCAP touch (standard configuration) | touchless | touchless | Core differentiation, buy and use immediately |
Contrast | 1000:1 | 5000:1 | 1000:1 |
|
Operating Temperature | -10°C ~ 50°C | 0°C ~ 60°C | 0°C ~ 50°C | Wider low-temperature operating range |
Backlight life | 50000 hours | 50000 hours | 50000 hours | Long-lived, suitable for continuous operation |
Brightness | 400 cd/m² | 250 cd/m² | 250 cd/m² | Higher brightness, suitable for semi-outdoor/high-intensity environments |
display technology | AHVA | AMVA3 | IPS | Full viewing angle, Normally Black |
LED driver | None (requiring external) | built-in | built-in | Additional backlight circuit design is required |
Main applications | Interactive touch application | Medical /Industrial | indoor display | Touch + highlight scene |
