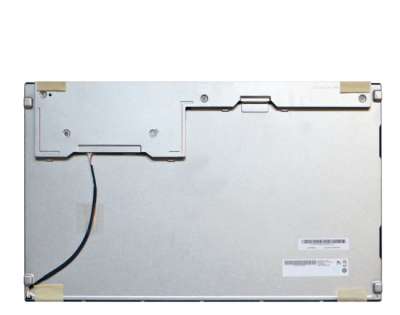

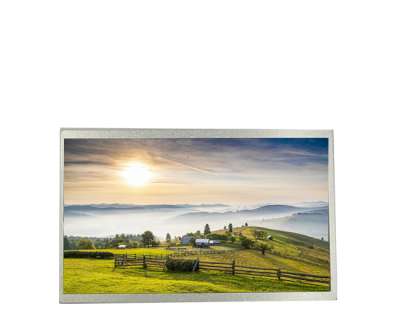

AUO G215HVN01.001 21.5 Inch FHD LCD Display – AMVA3 High Contrast Industrial Panel
Product Overview
The AUO G215HVN01.001 is a 21.5-inch industrial-grade TFT-LCD display module manufactured by AU Optronics (AUO). First launched in Q2 2012, this panel delivers stunning FHD resolution (1920×1080) in a 16:9 widescreen format, making it an excellent choice for industrial control systems, medical equipment, gaming machines, and digital signage requiring high image quality and long-term reliability.
Key differentiator: With an outstanding 5000:1 contrast ratio—five times higher than standard industrial displays—and 98% sRGB color gamut coverage, the G215HVN01.001 delivers exceptional image quality with deep blacks and vibrant colors. The AMVA3 (AUO Advanced Multi-domain Vertical Alignment) technology provides full 89/89/89/89° viewing angles with normally black mode for superior dark-room performance.
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G215HVN01.001 |
Screen Size | 21.5 inch |
Resolution | FHD 1920 × 1080 |
Pixel Density | 102 PPI |
Aspect Ratio | 16:9 |
Display Technology | a-Si TFT-LCD, AMVA3, Normally Black, Transmissive |
Brightness | 300 cd/m² (Typ.) |
Contrast Ratio | 5000:1 (Typ.) (Transmissive) |
Viewing Angle | 89°/89°/89°/89° (Full) |
Response Time | 20/5 ms (Typ.)(Tr/Td) |
Display Colors | 16.7M (8-bit) |
Color Gamut | 98% sRGB, 75% NTSC |
Color Temperature | 6485K |
Interface | LVDS (2 ch, 8-bit), 30 pins |
Backlight Type | WLED, Edge light type (Bottom side) |
Backlight Life | 50,000 hours (Min.) |
LED Driver | Built-in |
Touch Panel | No (custom touch upgrades available) |
Operating Temperature | 0°C ~ 60°C |
Storage Temperature | -20°C ~ 60°C |
Active Area | 476.64 × 268.11 mm |
Outline Dimension | 495.6 × 292.2 × 13.2 mm |
Surface Treatment | Anti-Glare (Matte), Hard coating (3H) |
Weight | 1.85 ± 0.19Kgs |
Refresh Rate | 60Hz |
Vibration Resistance | 1.5G (14.7 m/s²) |
Power Consumption | 19.82W (Typ.) |
RoHS | Compliant |
Production Status | Discontinued |
Key Advantages
1. Ultra-High Contrast Ratio – 5000:1
The G215HVN01.001 delivers an industry-leading 5000:1 contrast ratio—approximately 5 times higher than standard industrial displays (typically 1000:1). Key benefits include:
Exceptional black levels — perfect for medical imaging and dark environment viewing
Vibrant, lifelike colors — enhanced visual experience for professional applications
Excellent readability — maintains clarity even in varying lighting conditions
Superior image depth — ideal for high-end gaming and entertainment displays
2. AMVA3 Wide Viewing Angle Technology
Incorporating AUO's proprietary AMVA3 technology (Advanced Multi-domain Vertical Alignment), this display offers:
Full 89/89/89/89° viewing angles — no color shift or contrast loss from any direction
Normally Black mode — deeper blacks and better contrast in dark environments
Superior dark-room performance — ideal for medical and control room applications
Excellent color consistency — accurate colors across the entire viewing cone
3. FHD Resolution & Wide Color Gamut (1920×1080, 98% sRGB)
The 1920×1080 FHD resolution with 102 PPI pixel density and 98% sRGB color gamut delivers:
Crisp, detailed imagery for industrial HMI and medical imaging
Sharp text rendering for data-intensive applications
Vibrant, accurate colors — 75% NTSC, 98% sRGB coverage
16.7M colors (8-bit) for smooth color gradations
6485K color temperature for neutral white balance
4. Long-Life Backlight with Built-in LED Driver
The panel comes with a built-in LED driver and 50,000-hour WLED backlight life:
50,000-hour lifespan — significantly reduces maintenance costs in continuous operation
Built-in LED driver — simplifies system integration, saves BOM cost and PCB space
No external driver design required — plug-and-play backlight solution
Ideal for 24/7 operation — reliable performance for always-on industrial applications
5. LVDS Interface for Industrial Compatibility
The dual-channel LVDS (2 ch, 8-bit) interface with 30-pin connector offers:
Stable signal transmission over longer distances
Wide compatibility with industrial controllers, embedded PCs, and SoCs
5.0V logic voltage — standard industrial levels
Proven reliability in industrial environments
6. Industrial-Grade Durability
50,000-hour WLED backlight life — long-term reliability for continuous operation
1.5G vibration resistance (14.7 m/s²) — suitable for transportation and industrial equipment
Anti-glare matte surface with 3H hard coating — reduces reflections, provides scratch resistance
RoHS compliant — meets global environmental standards
In Production status — stable supply since 2012 for ongoing production needs
7. Standard 16:9 Form Factor for Easy Integration
476.64 × 268.11 mm active area — standard 21.5-inch FHD size
495.6 × 292.2 × 13.2 mm outline — fits standard industrial enclosures
Side mounting holes (4-M3) on left and right bezel — secure installation
Landscape orientation — designed for landscape mode operation
Applications
The AUO G215HVN01.001 is designed for a wide range of industrial, medical, and commercial applications requiring excellent image quality and long-term reliability:
Application Area | Specific Use Cases |
Industrial HMI | Factory automation panels, machine control interfaces, PLC terminals, SCADA systems |
Medical Equipment | Diagnostic displays, patient monitoring systems, medical imaging, PACS workstations |
Gaming & Amusement | Gaming machines, slot displays, casino terminals, arcade games |
Digital Signage | Indoor information displays, public information kiosks, menu boards |
Industrial PCs | Embedded computers, rack-mounted industrial displays |
Security & Surveillance | Monitoring stations, control room displays, CCTV monitors |
Test & Measurement | Oscilloscopes, spectrum analyzers, lab equipment |
Process Control | Power plant monitoring, oil & gas control systems |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Functional projected capacitive touch panel
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Touch panel upgrades, custom cables, optical bonding
Order Information
Item | Details |
Model | AUO G215HVN01.001 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Production Status | In Production |
Comparison reference between AUO G215HVN01.001 and models of the same series/size:
Comparison item | G215HVN01.001 | G215HVN01.1 | Ordinary 21.5-inch industrial screen | Advantage Description |
Contrast | 5000:1 | 5000:1 | 1000:1 | Ordinary industrial screen 5x, darker black color |
Color gamut | 98% sRGB | 92% sRGB | 70-80% sRGB | More vivid and accurate colors |
Backlight life | 50000 hours | 30000 hours | 30,000-50,000hours | Long lifespan, suitable for continuous operation |
Brightness | 300 cd/m² | 250 cd/m² | 250-400 cd/m² | Standard industrial brightness |
viewing angle | 89/89/89/89° | 89/89/89/89° | 85/85/80/80° | Full view AMVA technology |
display technology | AMVA3 | AMVA3 | TN/IPS | Normally Black， Excellent dark field performance |
LED driver | built-in | built-in | Part needs to be external | Simplify design |
