AUO G215HVN01.0 21.5-inch Full HD VA TFT-LCD | Dual-Channel LVDS

  • AUO G215HVN01.0 21.5-inch Full HD VA TFT-LCD | Dual-Channel LVDS
  • AUO G215HVN01.0 21.5-inch Full HD VA TFT-LCD | Dual-Channel LVDS
  • Model:G215HVN01.0
  • Brand:AUO
  • Size:21.5inch
  • Resolution:1920×1080
  • Brightness:300 cd/m² (Typ.); 240 cd/m² (Min.)
  • Perspective:89/89/89/89 (Typ.); 75/75/75/75 (Min., CR=10; left/right/up/down)
  • Interface:Dual-channel LVDS, 8-bit
  • Operating Temp.:0 ~ 60 °C
  • Production State:In Production
  • Request a Quote
  • Technical Parameters

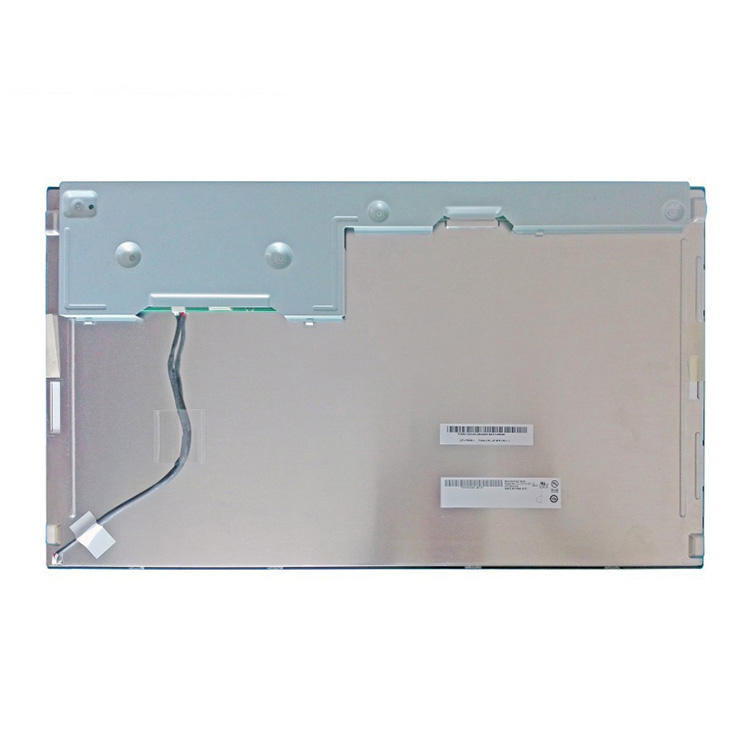

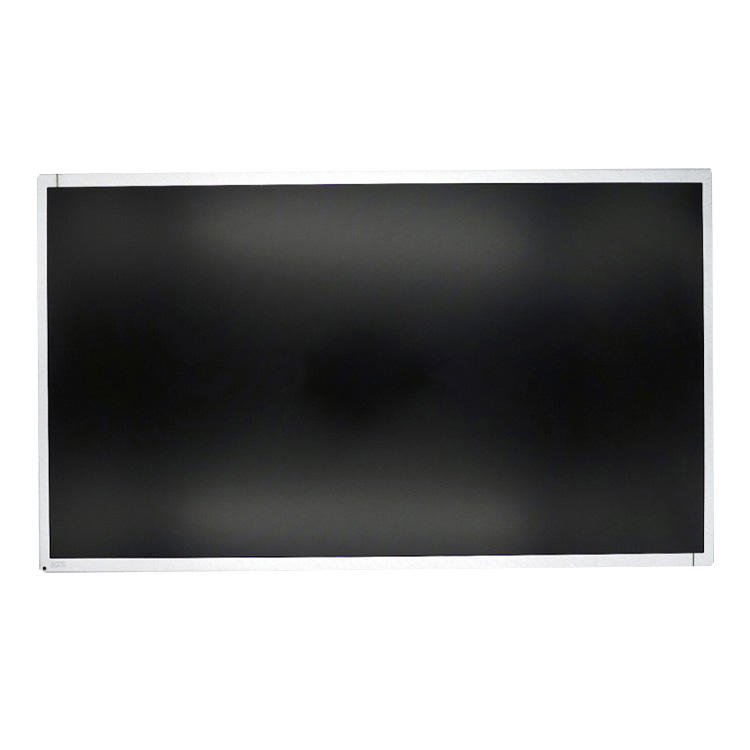

  • AUO G215HVN01.0 21.5-inch Full HD VA TFT-LCD Module

    The AUO G215HVN01.0 is a 21.5-inch Full HD TFT-LCD module with 1920 × 1080 pixels, a VA normally-black display, 16.7 million colors, and a dual-channel LVDS interface. AUO Final Specification Rev. 1.6 lists 300 cd/m² typical and 240 cd/m² minimum center luminance, 5,000:1 typical and 3,000:1 minimum contrast, and a typical 89° viewing angle in all four directions (CR ≥ 10). The module includes an LED driver board. Verify the complete model label, connector pin assignments, power sequence, backlight supply, and mechanical drawing before design approval.

    Key specifications

    ParameterG215HVN01.0 specificationSpecification page
    Manufacturer / modelAU Optronics / G215HVN01.01, 6
    Diagonal / resolution21.5-inch class (21.53-inch diagonal); 1920 × 1080 pixels; RGB vertical stripe6
    Display mode / colorVA, normally black; 16.7 million colors (RGB 8-bit)6
    Active area / pixel pitch476.64 × 268.11 mm; 0.24825 × 0.24825 mm6
    Physical outline495.6 × 292.2 × 12.7 mm (W × H × D)6; revision history 3–4
    Weight1,850 g typical (±185 g)6
    Center luminance300 cd/m² typical; 240 cd/m² minimum7
    Contrast ratio5,000:1 typical; 3,000:1 minimum7
    Viewing angle89° typical in each direction; 75° minimum left, right, up, and down (CR = 10)7
    Response time25 ms typical on/off (rise 20 ms typical; fall 5 ms typical)7
    LCD interface / connectorDual-channel LVDS, 8-bit; JAE FI-XB30SRL-HF11 or equivalent, 30 pins, 1.0 mm pitch6, 11, 22
    Logic supply5.0 V typical (4.5–5.5 V operating range)6, 14
    BacklightWLED; integrated LED driver board; 12 V typical input (10.8–13.2 V); 50,000-hour minimum LED life under stated test conditions6, 11–12, 16
    Power consumption19.82 W typical total (LCD 3.5 W + LED 16.32 W, all-white pattern)6
    Operating temperature0 to +60 °C6, 12–13
    Storage temperature−20 to +60 °C (non-operating)6, 12–13
    Surface / complianceAnti-glare, 3H hard coating; RoHS; TCO 5.16

    Selection and integration notes

    Use 300 cd/m² as the typical center luminance and 240 cd/m² as the minimum specified value; they represent different limits.

    This is a VA normally-black panel, not an IPS panel. Match the exact G215HVN01.0 suffix and the supplied unit's label.

    The image interface is dual-channel LVDS, 8-bit. Confirm the odd/even channel mapping, pin assignment, signal timing, and host transmitter compatibility before connection.
    The LCD logic supply is 5 V. The LED driver uses a separate 12 V input. Follow the specified power-on and power-off sequence; keep interface signals low or high-impedance while VDD is off.
    The LED connector is specified as Sin Sheng MS24049HJ or equivalent; the mating connector is P24049 or compatible. Check connector orientation and pinout against the drawing before wiring.
    The specification describes an LCD module and does not specify an integrated touch panel. Confirm any touch assembly and controller separately.
    For replacement use, compare the complete outline, mounting locations, connector positions, LVDS pinout and timing, power rails, and backlight control. A matching 21.5-inch size and Full HD resolution alone do not establish compatibility.
    The 2016 specification does not establish current inventory or lead time. Confirm the current revision and supply status for the exact unit with the supplier.

    Frequently asked questions

    Is G215HVN01.0 an IPS panel?

    No. AUO Rev. 1.6 identifies it as a VA-mode, normally-black TFT-LCD.

    What are the resolution and interface?

    It has a 1920 × 1080 Full HD pixel format and an 8-bit dual-channel LVDS interface.

    Is the brightness 240 or 300 cd/m²?

    The specification gives 300 cd/m² as typical center luminance and 240 cd/m² as the minimum. Use the typical value for nominal comparison and the minimum when checking the guaranteed lower limit.

    What is the operating temperature range?

    The specified operating range is 0 to +60 °C. The non-operating storage range is −20 to +60 °C. The specification revision history records the operating-temperature change to +60 °C.

    What supplies does the module require?

    The LCD logic uses a typical 5.0 V supply. The integrated LED driver requires a separate 12 V typical backlight input (10.8–13.2 V specified range). Follow the module's power sequence and verify the exact connector pinout.

    Does the module include touch?

    The reviewed LCD-module specification does not identify an integrated touch panel. Request and verify a touch assembly separately if touch input is needed.

    Can it replace another 21.5-inch Full HD display?

    Not by size and resolution alone. Compare the exact model and revision, mechanical drawing, mounting, dual-channel LVDS pinout and timing, power sequence, and backlight interface before approving a replacement.

    Specification basis: AU Optronics, G215HVN01.0 Product Specification, Final Specification, document version 1.6, approved 2016-03-31. Page references above use the printed page numbers in the 27-page PDF. Confirm the latest applicable specification and mechanical drawing for the supplied module before design approval.
