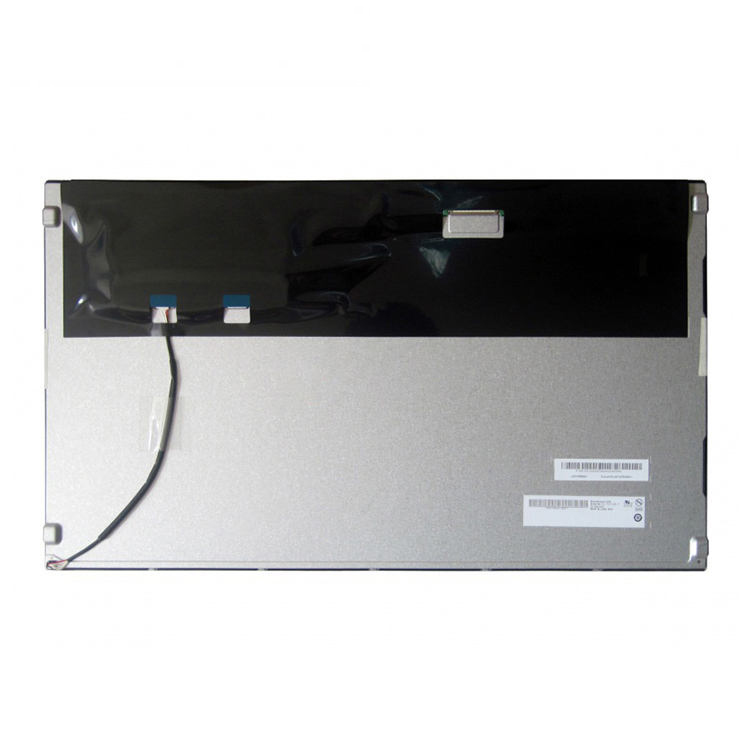

AUO G215HVN01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G215HVN01.1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 21.5” | Designed For | Industrial |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | WLED Backlight,Matte, Upside I/F,With LED Driver |
AUO G215HVN01.1 Optical Details
| Basic Information : | Luminance | 500 cd/m² (Typ.)(Typ.) | Contrast Ratio | 5000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 10/6 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA3, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 92% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 74% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G215HVN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.08275*0.24825 (H*V) | Pixel Pitch(mm) | 0.24825*0.24825 (H*V) [102PPI] |
| Physical Size : | Active Viewing(mm) | 476.64(H) *268.11(V) | Outline Dim.(mm) | 495.6(H) *292.2(V) |
| Bezel Area (mm) | 479.84(H) *271.31(V) | Outline Depth | 10.7±0.5 |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 16:9(H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | TBD | Surface | Antiglare, Hard coating (3H) |
AUO G215HVN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 18.14W (Typ.) |
AUO G215HVN01.1 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.7/0.8A (Typ./Max.) |
| Consumption | 3.5/4.4W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-XB30SRL-HF11 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A |
AUO G215HVN01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 10S7P | Position | Edge light type (Bottom side) |
| Exchange |
No | Lamp Shape | 7 strings | Lamp Life | 30K(Min.) Hours |
| Interface Features : | Position | - | Physical Type |
Connector |
Interface Detail :
| Brand
| Model | Quantity | Pins | Pitch | Pin Configuration |
| E&T | 3806K-F08N-03L | 1 pcs | 8 pins | 1.25 mm | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 1.22A (Typ.) |
| Consumption | 14.64±1.46W |
AUO G215HVN01.1 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 12pcs / box | - | 560*269*369 mm (L*W*H) |
-
